Steel Metal Cut To Length Line High Precision For Cutting Coil Into Required Length

China Steel Metal Cut To Length Line High Precision For Cutting Coil Into Required Length supplier
Steel Metal Cut To Length Line High Precision For Cutting Coil Into Required Length supplier Steel Metal Cut To Length Line High Precision For Cutting Coil Into Required Length supplier Steel Metal Cut To Length Line High Precision For Cutting Coil Into Required Length supplier Steel Metal Cut To Length Line High Precision For Cutting Coil Into Required Length supplier

Large Image :  Steel Metal Cut To Length Line High Precision For Cutting Coil Into Required Length

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-CTL1250

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard Pakcing
Delivery Time: 100 Working Days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 10 Sets
Contact Now
Detailed Product Description
Thickness Of Coil: 1.0-3.0mm Loading Capacity Of Uncoiler: 20T
Length Tolerance: ±1.0mm/2000mm Diagonal Tolerance: ±1.5mm/2000mm
Leveling Speed: 0—24m/min Power: 380V Three-phase Electricity 60Hz

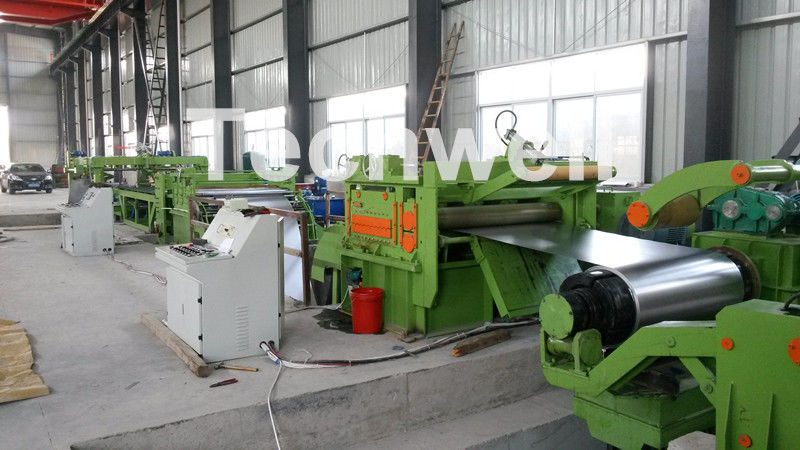

Steel Metal Cut To Length Line High Precision For Cutting Coil Into Required Length





   Description of Cut To Length Line



This metal coil cut to length line is used for HR coil with different specifications, through uncoiling-leveling-cut to length to flattened plate as needed length.



Medium / Heavy plate cut to length machine steel line is applicable to coils of various specifications. the machine produced by cut to length machine is used for the producing flattened cut to length steel steel plate through the procedure of uncoiling, flattening and cutting to required width and length.



This cutting to length consists of loading cut, single pivot uncoiler, pre-leveler, hydraulic loop bridge, deviation corrector, fine leveler, servo length gauge, cut to length lines shear, belt conveyor, reversal discharger, stacker, discharging cart, servo transmission system, hydraulic system, etc.





   Working Flow of Cut To Length Line



Raw material platform→ carrying coil car→ hydraulic uncoiler→ feeding guide plate→ pair pinching roller, five rollers leveling→ coil head cutting→ front looping table→ side guiding table→ pinching machine→ disc slitting→ curling machine→ back looping table→ pre-feeding coils→ tension table→ rewinding→ discharging car→ hydraulic bracket→ Electric control

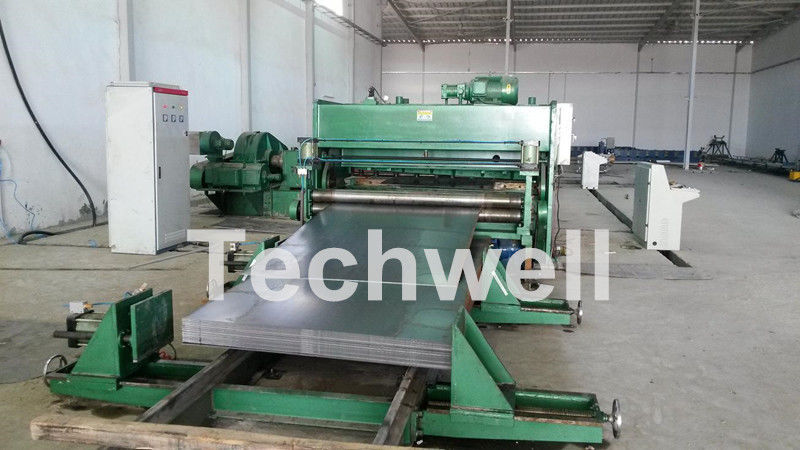

Steel Metal Cut To Length Line High Precision For Cutting Coil Into Required Length





   Main Technical Data



Thickness of coil 1.0-3.0mm
Width of coil about 1800mm
Loading capacity of uncoiler 20T
Coil I.D ф508mm—ф610mm
Coil O.D ≤ф1500mm
Cutting Tolerance ±1.0mm/2000mm
diagonal tolerance ±1.5mm/2000mm
Material of leveling roller 40Cr, hardness of leveling roller surface: HRC50—54
Leveling speed 0—24m/min
Power 380V three-phase electricity 60Hz

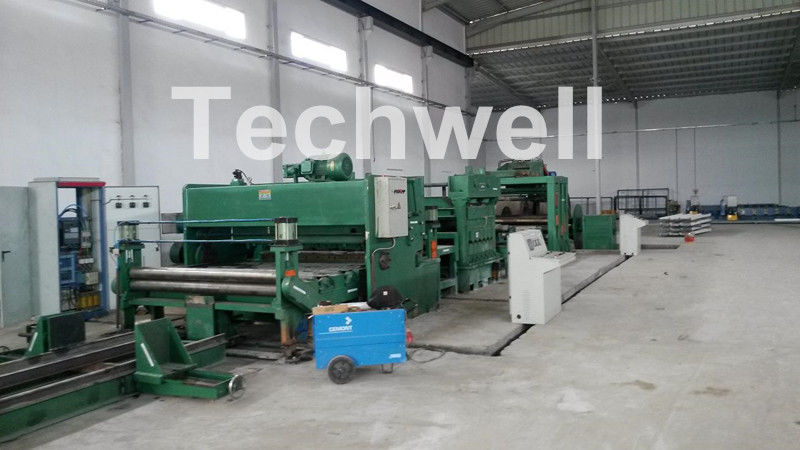

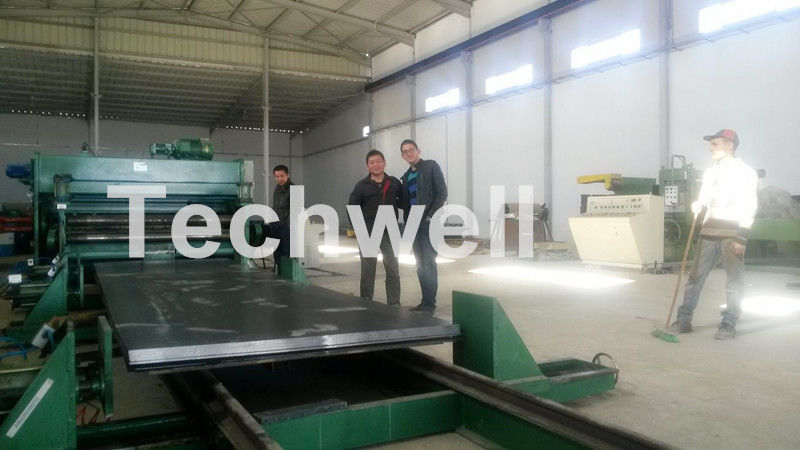

   More Machine Pictures



Steel Metal Cut To Length Line High Precision For Cutting Coil Into Required Length
