Casting Structure Rack Beam Roll Forming Machine / Box Beam Roll Forming Machine With 1.8-2.3mm Thickness

China Casting Structure Rack Beam Roll Forming Machine / Box Beam Roll Forming Machine With 1.8-2.3mm Thickness supplier
Casting Structure Rack Beam Roll Forming Machine / Box Beam Roll Forming Machine With 1.8-2.3mm Thickness supplier Casting Structure Rack Beam Roll Forming Machine / Box Beam Roll Forming Machine With 1.8-2.3mm Thickness supplier Casting Structure Rack Beam Roll Forming Machine / Box Beam Roll Forming Machine With 1.8-2.3mm Thickness supplier Casting Structure Rack Beam Roll Forming Machine / Box Beam Roll Forming Machine With 1.8-2.3mm Thickness supplier

Large Image :  Casting Structure Rack Beam Roll Forming Machine / Box Beam Roll Forming Machine With 1.8-2.3mm Thickness

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-RBB300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Material: Galvanized Coil Or Carbon Steel Material Thickness: 1.5-2.5mm
Box Interlock Machine: 4 Forming Stations Main Power: 11KW
Forming Speed: 0-15m/min Forming Station: About 14 Stations

Casting Structure Rack Beam Roll Forming Machine / Box Beam Roll Forming Machine With 1.8-2.3mm Thickness





   Summary of Box Beam Roll Former



Shelving Box Beam Roll Forming Machine is to form metal plates into required sections by continuous deformation of a group of rollers at room temperature, and is made two identical channel sections nested together to form a box beam.





   Reference Profile Drawing / Finished Sample Pieces



Casting Structure Rack Beam Roll Forming Machine / Box Beam Roll Forming Machine With 1.8-2.3mm Thickness
Casting Structure Rack Beam Roll Forming Machine / Box Beam Roll Forming Machine With 1.8-2.3mm Thickness





   Main Technical Specifications



1). Coil material thickness: 1.5-2.5mm

2). Material: carbon steel, GI

3). Weight capacity of decoiler: Max. 5 Ton

4). Coil width: Max. 1500mm

5). 2 rollers pinch feeding

6). 5 rollers leveling (Upper 2 roller, lower 3 rollers)

7). Machine frame stand: Welded structure steel

8). Forming motor: about 11KW

9). Shaft material: 45# high grade steel tempering treatment (HB220-260)

10). Roller material: GCr15 steel, quenched and heated process HRC58-62

11). Drive type: Chain transmission

12). Forming Speed: about 0-15m/min (excluding cutting time)

13). Forming stations: about 14 staitons

14). Cutting type: Hydraulic cutting

15). Hydraulic power: 4KW

16). Cutting tolerance: 10m+/-2.0mm

17). Box interlock stations: 4 stations

18). Power: 3KW





   Working Flow Chart



Decoiler → Feeding Guide → Leveling →  Main Roll Forming → Hydraulic Cutting → Support Table → Interlock



Machine



Casting Structure Rack Beam Roll Forming Machine / Box Beam Roll Forming Machine With 1.8-2.3mm Thickness





   Applications



Box beam, Rack box beam, Shelf box beam, Rack Shelf box beam, Shelf rack box beams



Box beam is the most widely used beam, as the structure is the most strong compare with other type of beam.

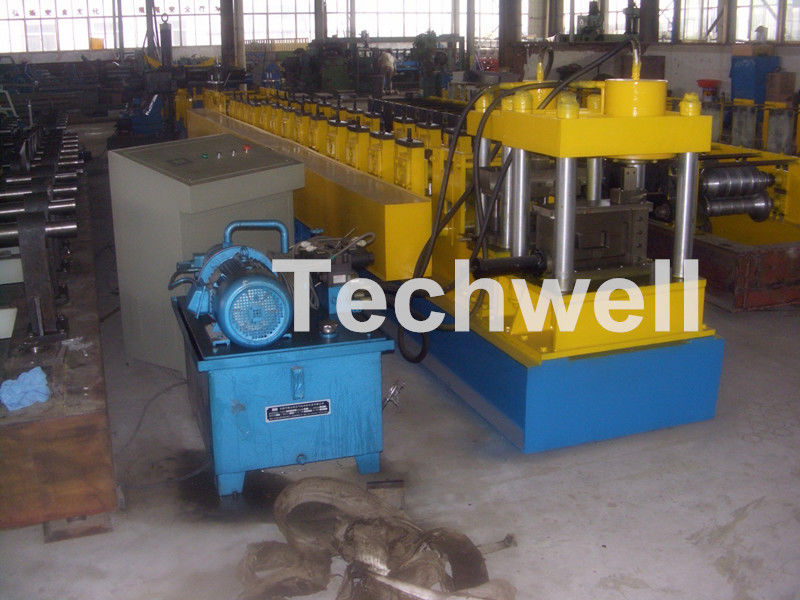

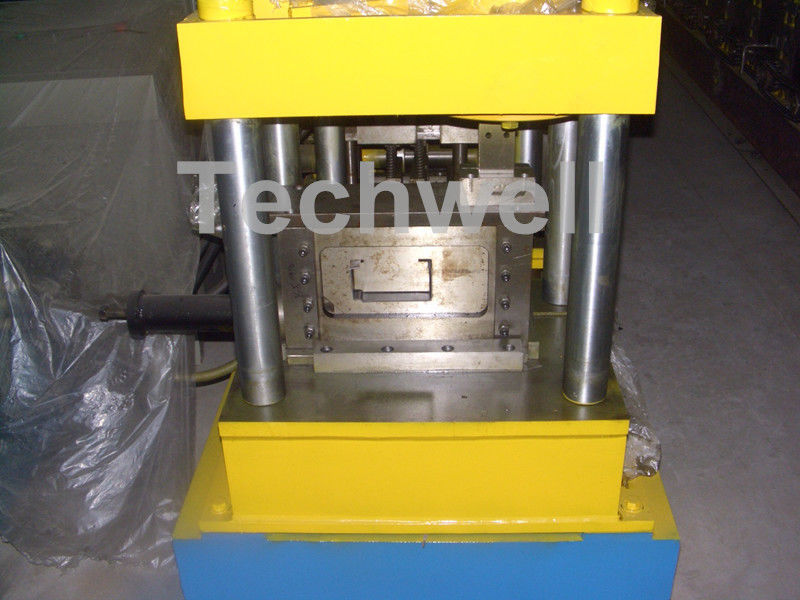

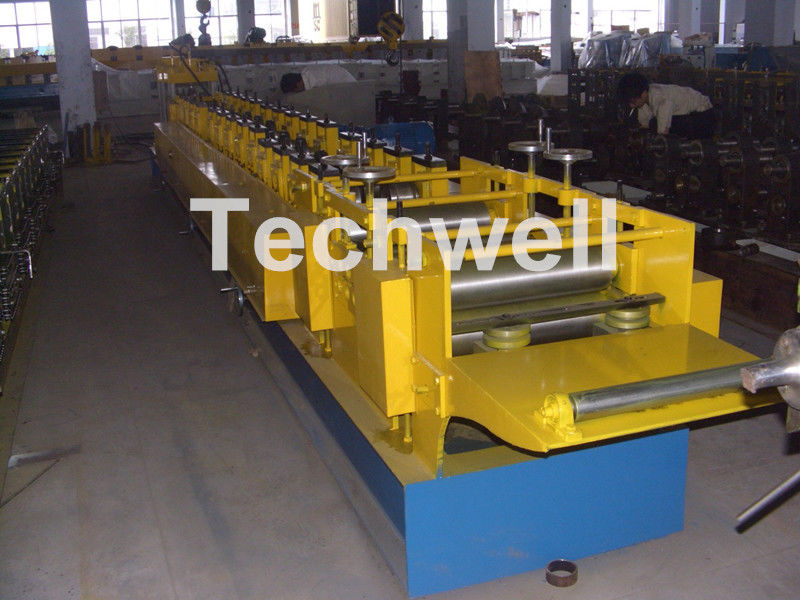

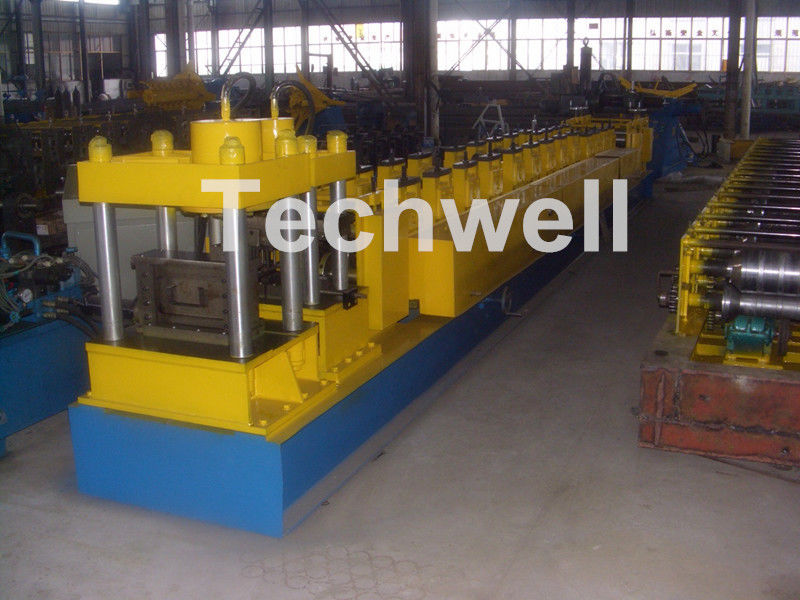

   More Machine Pictures



Casting Structure Rack Beam Roll Forming Machine / Box Beam Roll Forming Machine With 1.8-2.3mm Thickness
