Detailed Product Description
Forming Structure: Ion Casting Coil Thicknes: 1.5-2.5mm
Material: GI, Carbon Steel Leveling: 5 Rollers Leveling
Machine Frame: Welded Structure Steel Forming Motor: About 11KW

12-15m/min Forming Speed Box Beam Cold Roll Forming Machine for Upright Rack, Storage Shelf





   Main Technical Specifications





 1). 5 Ton Manual Uncoiler

  1. Machine frame: welding structure with shot lastingtreatment

  2. Components: Base, brake device, inner hole support, Expanding / tighten device

  3. Weight capacity: 5 Ton

  4. I.D: 500mm

  5. Max. coil width: 500mm

  6. O.D: Max. 1500mm



 2). Pinch Feeding & Leveling Device

  1. 2 Rollers pinch feeding,
  2. 5 rollers leveling (Upper 2 rollers, lower 3 rollers)



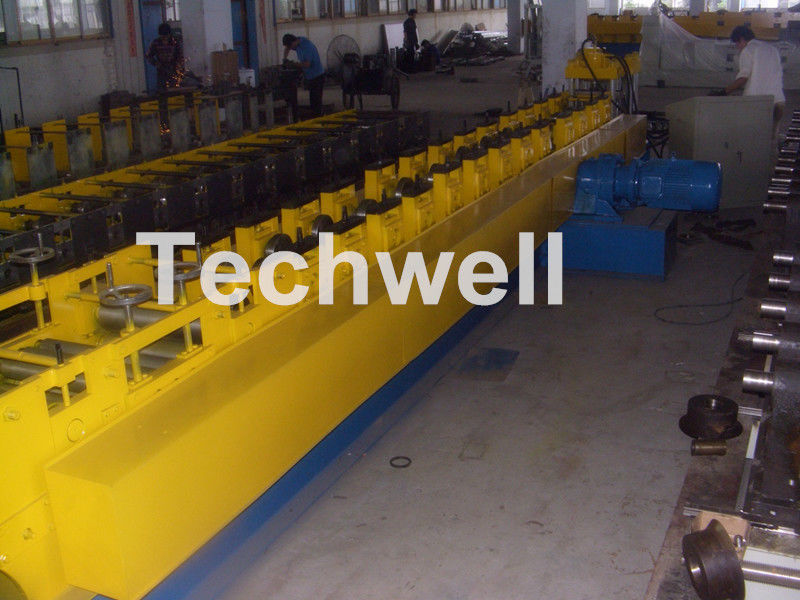

 3). Main Roll Forming Part

  1. Forming material thickness: 1.5-2.5mm
  2. Forming material type: GI or Carbon Steel
  3. Machine Frame: high grade steel welded and tempering treatment
  4. Shaft Material: 45# high grade steel tempering treatment (HB220-260)
  5. Shaft Diameter: Φ 70mm
  6. Bearing: HRB bearing ( Top Chinese brand )
  7. Roller Material: high grade GCr15 steel, quenched and heated process HRC58-62
  8. Forming Station: ≈ 14 stations
  9. Forming Speed: 0-15m/min, excluding cutting time
  10. Forming Motor: 11KW
  11. Drive type: Chain Drive



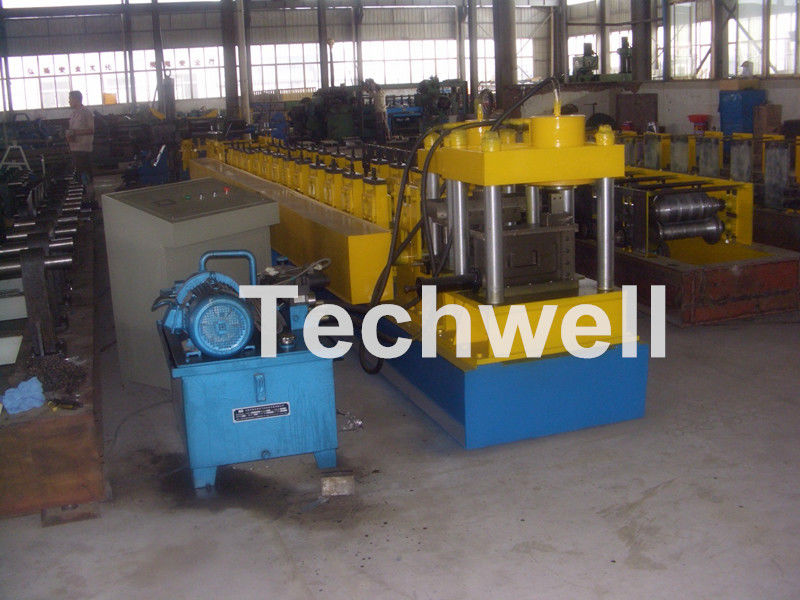

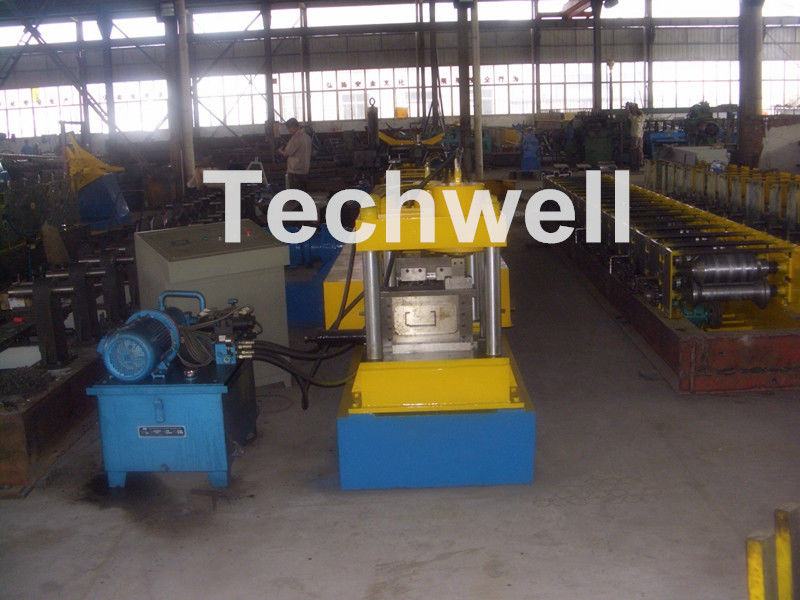

 4). Hydraulic Cutting & Hydraulic Station

  1. Cutting type: hydraulic cutting
  2. When cutting, machine stop
  3. cutting tolerance: 10m+/-1.5mm
  4. Hydraulic Power: 4.0KW



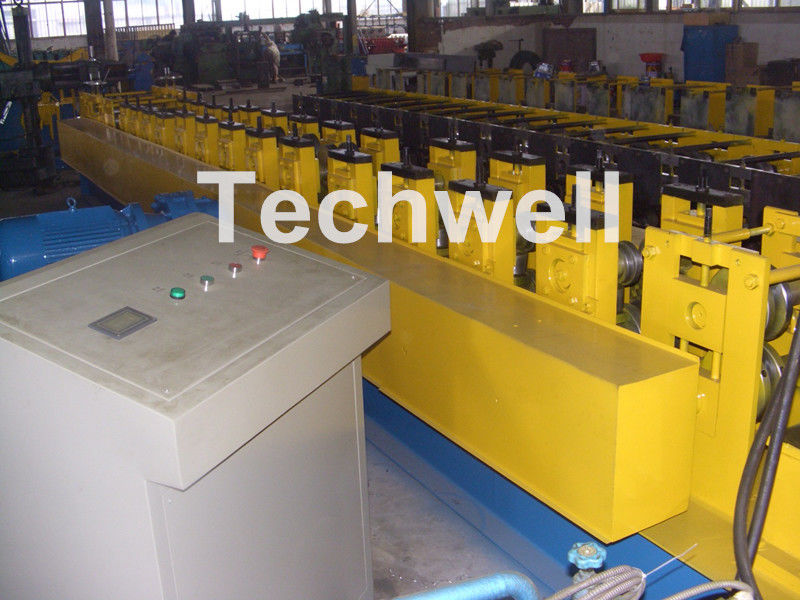

 5). PLC Control System

  1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.
  2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.



 6). Run-out Table

  1. Form: Steel welding structure, no-power exit rack
  2. Quantity:1 pieces



 7). Box Interlock Machine

  1. Function: 4 stations to crimp, fix and bite two separated like C shape panles together to be locked as box beam
  2. Power: 3KW





   Summary of Box Beam Roll Former



Storage Rack Box Beam Roll Forming Machine has the advantages of high productivity, steady quality, power and labor saving in forming all kinds of complicated profiles. Our Company, Wuxi Techwell Machinery Co., Ltd, can also design all kinds of shaped steel profile forming equipment, punching molding and welding production line according to customers’ requests.

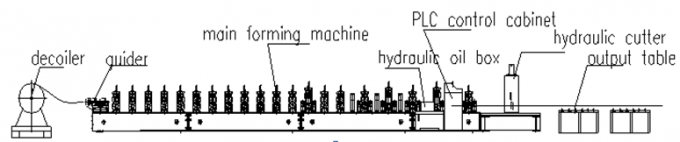

   Working Flow Chart



12-15m/min Forming Speed Box Beam Rack Roll Forming Machine for Upright Rack , Storage Shelf

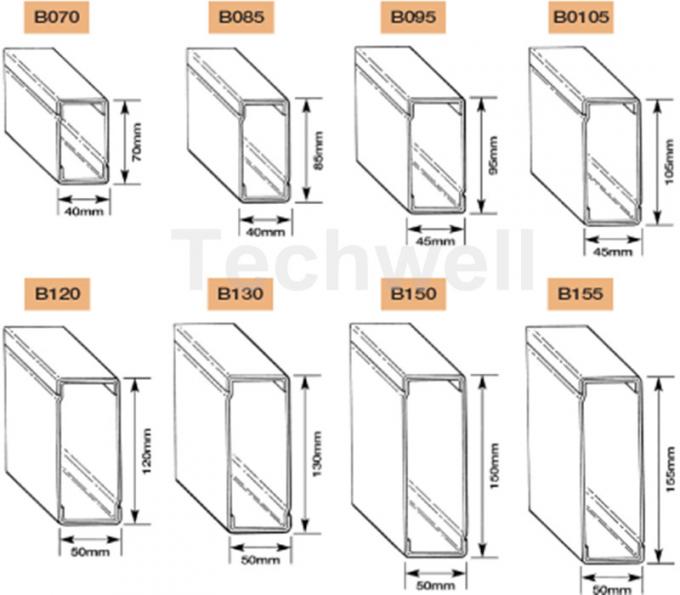

   Profile Drawing



12-15m/min Forming Speed Box Beam Rack Roll Forming Machine for Upright Rack , Storage Shelf

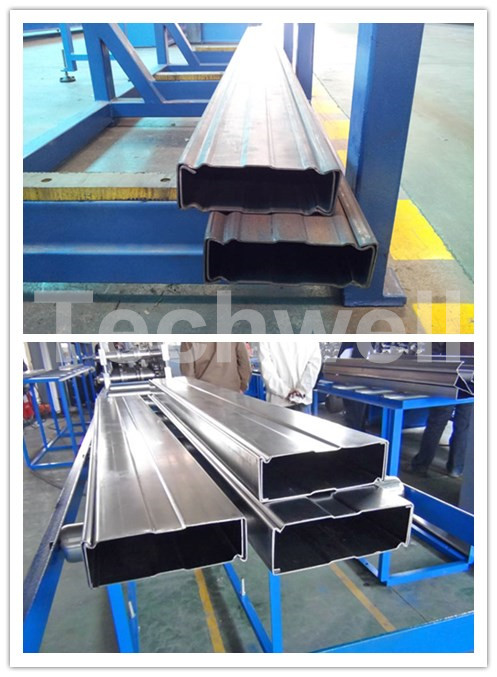

   Finished Sample Photos
