Galvanized Steel Cold Roll Forming Machine With High Speed 12-15m/min For Rack Box Beam / Step Beam

China Galvanized Steel Cold Roll Forming Machine With High Speed 12-15m/min For Rack Box Beam / Step Beam supplier
Galvanized Steel Cold Roll Forming Machine With High Speed 12-15m/min For Rack Box Beam / Step Beam supplier Galvanized Steel Cold Roll Forming Machine With High Speed 12-15m/min For Rack Box Beam / Step Beam supplier Galvanized Steel Cold Roll Forming Machine With High Speed 12-15m/min For Rack Box Beam / Step Beam supplier Galvanized Steel Cold Roll Forming Machine With High Speed 12-15m/min For Rack Box Beam / Step Beam supplier

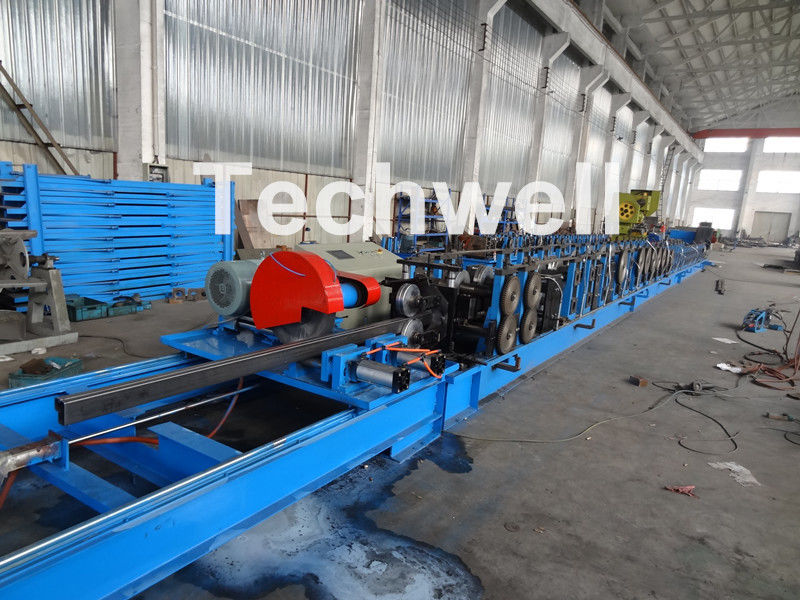

Large Image :  Galvanized Steel Cold Roll Forming Machine With High Speed 12-15m/min For Rack Box Beam / Step Beam

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-RBB300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Material: Q235 Galvanized Sheet, Cold-rolled Coil, Hot-rolled Coil Forming Motor: About 15KW
Shaft Material: 45# High Grade Steel Tempering Treatment (HB220-260) Cutting Type: Tracking Flying Saw Cutting
Cuttign Power: 4.0KW Forming Stations: About 24 Staitons

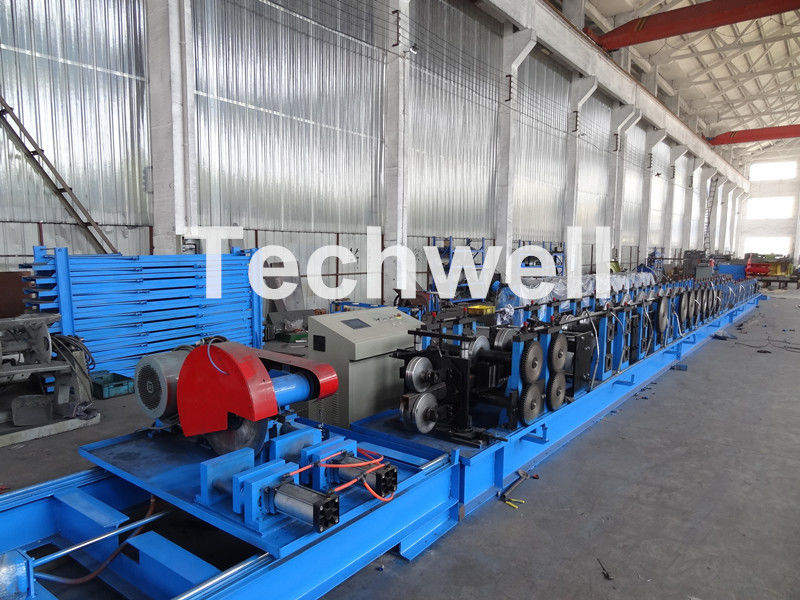

Galvanized Steel Cold Roll Forming Machine With High Speed 12-15m/min For Rack Box Beam / Step Beam





   Main Technical Specifications





 1). 4 Ton Manual Uncoiler

  1. Decoiler Type: Manual type decoiler

  2. Machine frame: welding structure with shot lastingtreatment

  3. Components: Base, brake device, inner hole support, Expanding / tighten device

  4. Weight capacity: 4 Ton

  5. I.D: 470-520mm

  6. Max. coil width: 500mm

  7. O.D: 600mm



 2). Pinch Feeding & Leveling Device

  1. 2 Rollers pinch feeding,
  2. 7 rollers leveling (Upper 3 rollers, lower 4 rollers)



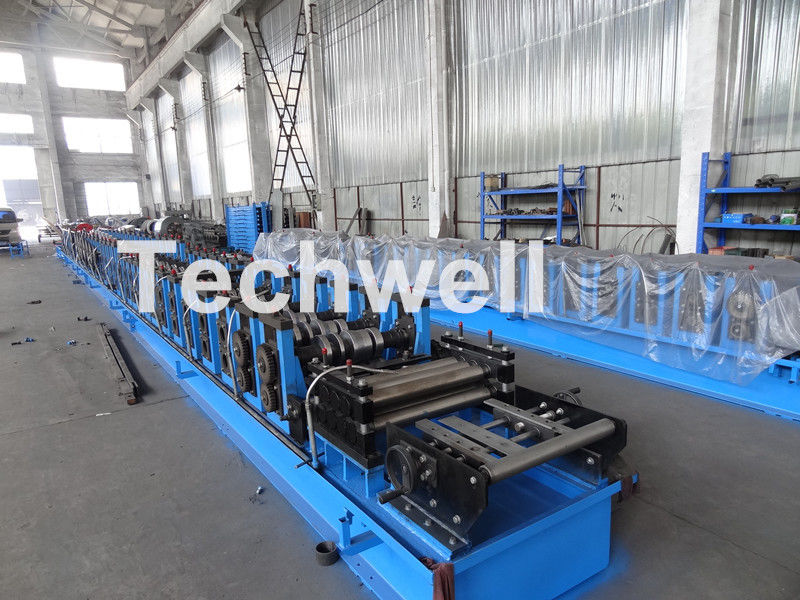

 3). Main Roll Forming Part

  1. Forming material thickness: 1.5-2.0mm
  2. Forming material type: Q235 Galvanized Sheet, Cold-rolled Coil, Hot-rolled Coil
  3. Machine Frame: high grade steel welded and tempering treatment
  4. Shaft Material: 45# high grade steel tempering treatment (HB220-260)
  5. Shaft Diameter: Φ 80mm
  6. Bearing: HRB bearing ( Top Chinese brand )
  7. Roller Material: high grade GCr15 steel, quenched and heated process HRC58-62
  8. Forming Station: ≈ 24 stations
  9. Forming Speed: 0-15m/min, excluding cutting time
  10. Forming Motor: 15KW
  11. Drive type: Chain Drive
  12. The rectangular tube is sealed by spot welding.



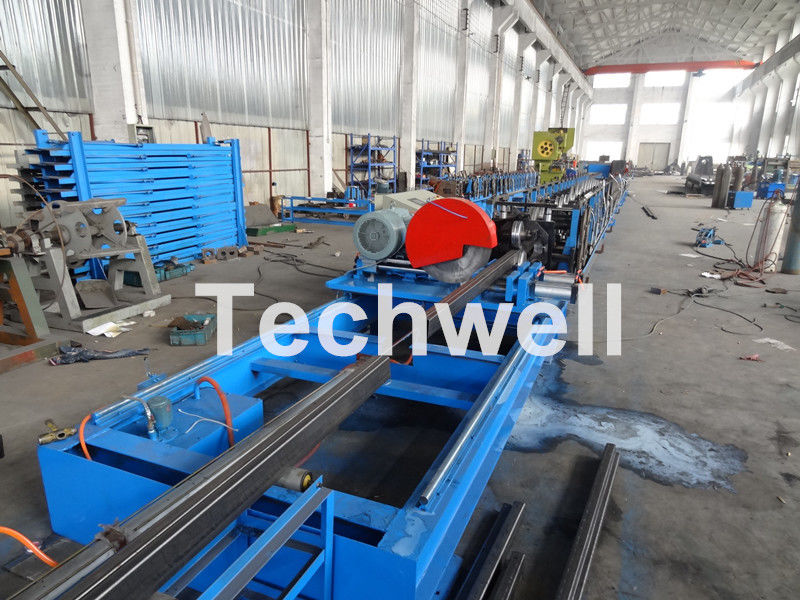

 4). Cuttign Device

  1. Cutting type: Tracking Flying Saw Cutting
  2. cutting tolerance: 10m+/-1.5mm
  3. Cutting Power: 4.0KW



 5). PLC Control System

  1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.
  2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.

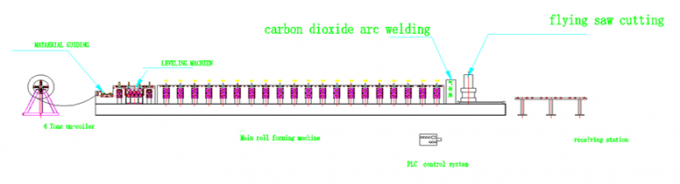

   Working Flow Chart



Decoiler → Feeding Guide → Leveling → Main Roll Forming → Carbon Dioxide Arc Welding → Flyign Saw



Cutting → Support Table



Galvanized Steel Cold Roll Forming Machine With High Speed 12-15m/min For Rack Box Beam / Step Beam





   Main Components



Decoiler 1 Unit
Pinch Feeding 1 Unit
7 Rollers Leveling 1 Unit
Main roll forming machine 1 Unit
Carbon Dioxide Arc Welding Machine 1 Unit
Tracking Flying Saw Cutting 1 unit
PLC computer control 1 Unit
Output table 1 Unit

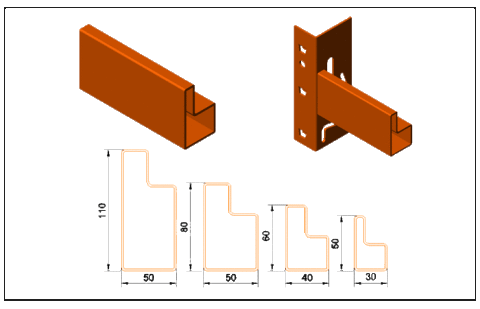

   Reference Profile Drawing



Galvanized Steel Cold Roll Forming Machine With High Speed 12-15m/min For Rack Box Beam / Step Beam
