Wall Plate Structure Cold Roll Forming Machine With 0-15m/Min Forming Speed For Making Top Hat Channel

China Wall Plate Structure Cold Roll Forming Machine With 0-15m/Min Forming Speed For Making Top Hat Channel supplier
Wall Plate Structure Cold Roll Forming Machine With 0-15m/Min Forming Speed For Making Top Hat Channel supplier Wall Plate Structure Cold Roll Forming Machine With 0-15m/Min Forming Speed For Making Top Hat Channel supplier Wall Plate Structure Cold Roll Forming Machine With 0-15m/Min Forming Speed For Making Top Hat Channel supplier Wall Plate Structure Cold Roll Forming Machine With 0-15m/Min Forming Speed For Making Top Hat Channel supplier

Large Image :  Wall Plate Structure Cold Roll Forming Machine With 0-15m/Min Forming Speed For Making Top Hat Channel

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-HCM100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Thickness Of Sheet: 1.5-3.0mm Material: GI, Carbon Steel
Forming Structure: Welded Wall Plate Structure Forming Stations: 14 Stations (Depend On Profiles)
Shaft Diameter: Φ 80mm Main Power: 15KW

Wall Plate Structure Cold Roll Forming Machine With 0-15m/Min Forming Speed For Making Top Hat Channel





   Main Specifications





 1). 5 Ton Manual Uncoiler

  1. Machine frame: welding structure with shot lastingtreatment

  2. Components: Base, brake device, inner hole support, Expanding / tighten device

  3. Weight capacity: 5 Ton

  4. I.D: 500mm

  5. Max. coil width: 500mm

  6. O.D: Max. 1500mm



 2). Feeding & Leveling Device

  1. 4 Rollers feeding
  2. 7 rollers leveling (Upper 3 rollers, lower 4 rollers)



 3). Main Roll Forming Part

  1. Forming material thickness: 1.5-3.0mm
  2. Forming material type: GI or Carbon Steel
  3. Machine Frame: high grade steel welded and tempering treatment
  4. Shaft Material: 45# high grade steel tempering treatment
  5. Shaft Diameter: Φ 80mm
  6. Bearing: HRB bearing ( Top Chinese brand )
  7. Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm
  8. Forming Station: ≈ 14 stations (Depend on profiles)
  9. Forming Speed: 0-15m/min excluding punching / cutting time
  10. Forming Motor: 15KW
  11. Drive type: Chain Drive
  12. Forming Speed: 0-15m/min



 4). Hydraulic Cutting & Hydraulic Station

  1. Cutting type: hydraulic cutting
  2. When cutting, machine stop
  3. cutting tolerance: 10m+/-1.5mm
  4. Encoder: OMRON brand
  5. Hydraulic Power: 7.5KW



 5). PLC Control System

  1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.
  2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.





   Reference Profile Drawing



Wall Plate Structure Cold Roll Forming Machine With 0-15m/Min Forming Speed For Making Top Hat Channel
Wall Plate Structure Cold Roll Forming Machine With 0-15m/Min Forming Speed For Making Top Hat Channel





   Working Flow Chart



Decoiler → Feeding Guide → Leveling →  Main Roll Forming → Hydraulic Cutting → Support Table



Wall Plate Structure Cold Roll Forming Machine With 0-15m/Min Forming Speed For Making Top Hat Channel





   Applications



Top Hat Channel, Furring Channel, Hat Channel, Ridge Channel, Top Furring Channel...





   Competitive Advantages



1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements





   More Machine Pictures

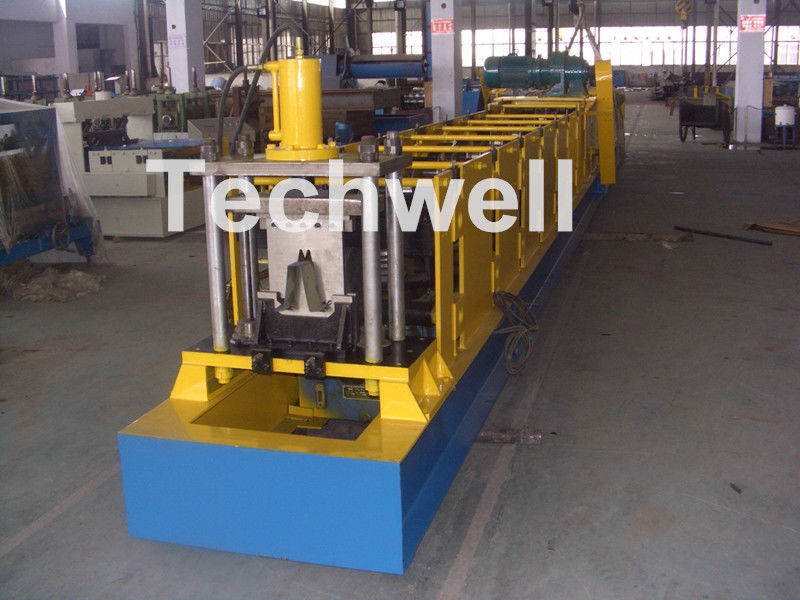

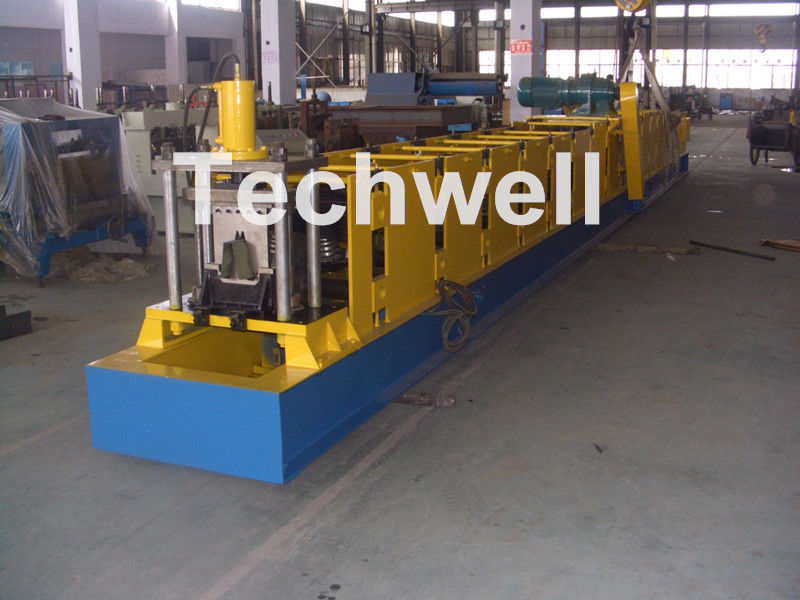

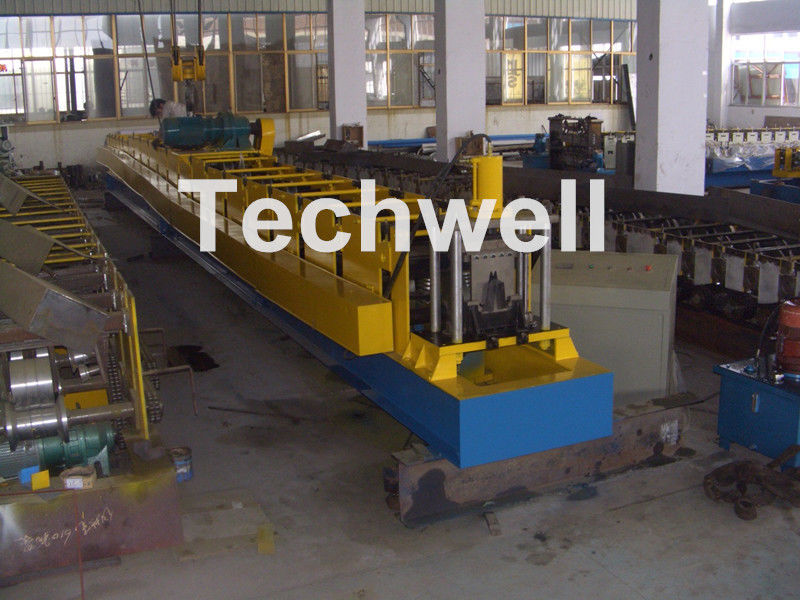

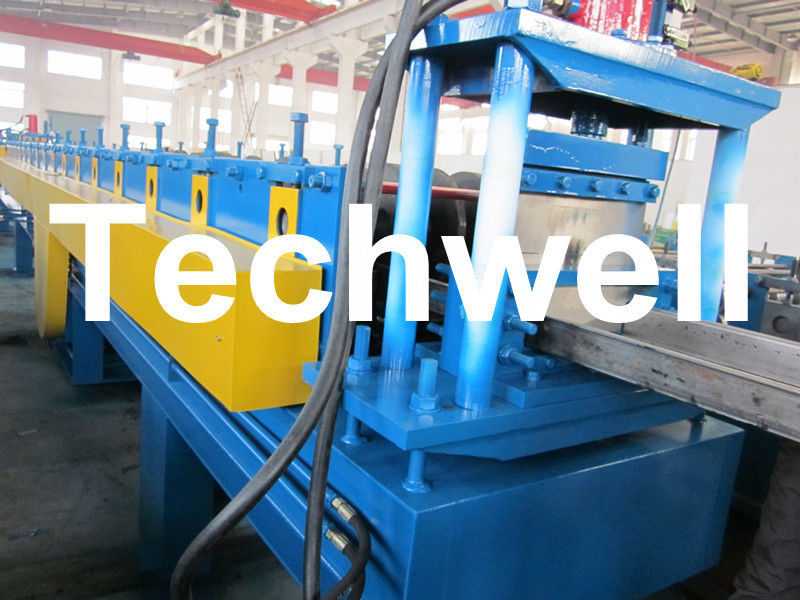

Wall Plate Structure Cold Roll Forming Machine With 0-15m/Min Forming Speed For Making Top Hat Channel
