0-15m/min Forming Speed Cold Roll Forming Machine With Sheet Left And Right Traverse Movement

China 0-15m/min Forming Speed Cold Roll Forming Machine With Sheet Left And Right Traverse Movement supplier
0-15m/min Forming Speed Cold Roll Forming Machine With Sheet Left And Right Traverse Movement supplier 0-15m/min Forming Speed Cold Roll Forming Machine With Sheet Left And Right Traverse Movement supplier 0-15m/min Forming Speed Cold Roll Forming Machine With Sheet Left And Right Traverse Movement supplier 0-15m/min Forming Speed Cold Roll Forming Machine With Sheet Left And Right Traverse Movement supplier

Large Image :  0-15m/min Forming Speed Cold Roll Forming Machine With Sheet Left And Right Traverse Movement

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TE-TRE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Material Thickness: 0.8-1.5mm Decoiler Type: Manual Or Hydraulic Or Auto Type
Forming Structure: Welded Wall Plate Structure Roller Material: 45# High Grade Steel, And Roller Surface With Hard Chrome ≥ 0.05mm
Shaft Diameter: Φ 75mm Shaft Material: 45# High Grade Steel Tempering Treatment

0-15m/min Forming Speed Cold Roll Forming Machine With Sheet Left And Right Traverse Movement





   Main Specifications



Thickness of sheet 0.8-1.5mm
Material GI, Carbon steel
Decoiler Type Passive type decoiler, or customized
Weight capacity of decoiler Max. 5T
Forming stations 14 stations (Depend on profiles)
Roller material 45# high grade steel, and roller surface with hard chrome 0.05mm
Shaft diameter Φ 75mm
Shaft material 45# high grade steel tempering treatment
Drive type Chain transmission
Forming Speed about 0-15m/min (excluding cutting time)
Main power 11KW
Cutting type Hydraulic cutting
Cutting blade Cr12Mov, quenched
Cutting tolerance 10m+/-1.5mm
Hydraulic power 4.0KW
PLC PANASONIC brand





   Working Flow Chart



Decoiler → Feeding Guide → Hydraulic Cutting → Main Roll Forming → Support Table





   Main Components



  • Decoiler / Uncoielr ------------------------------------------------- 1 Unit
  • Pinch Feeding  ------------------------------------------------------ 1 Unit
  • Hydraulic cutting device ------------------------------------------- 1 Unit
  • Main roll forming machine -----------------------------------------1 Unit
  • Hydraulic Station ---------------------------------------------------- 1 Unit
  • Electric Control Board -------------------------------------------- 1 Unit
  • Output table ---------------------------------------------------------- 1 Unit



   Competitive Advantages



  1. High Quality
  2. Good after Service
  3. 1 Year Warranty
  4. More Than 10 Years Experience
  5. Simple to operate when assemble
  6. Easy to handle the products
  7. Direct manufacturer, provide with high quality and best price.

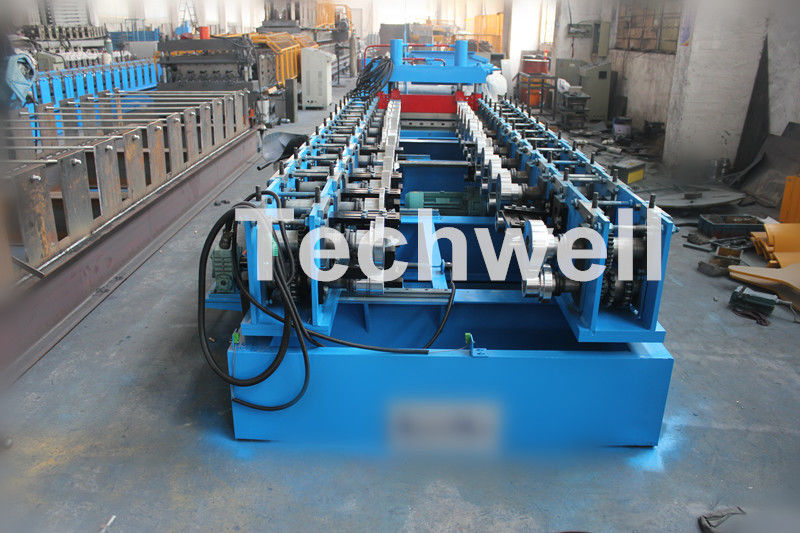

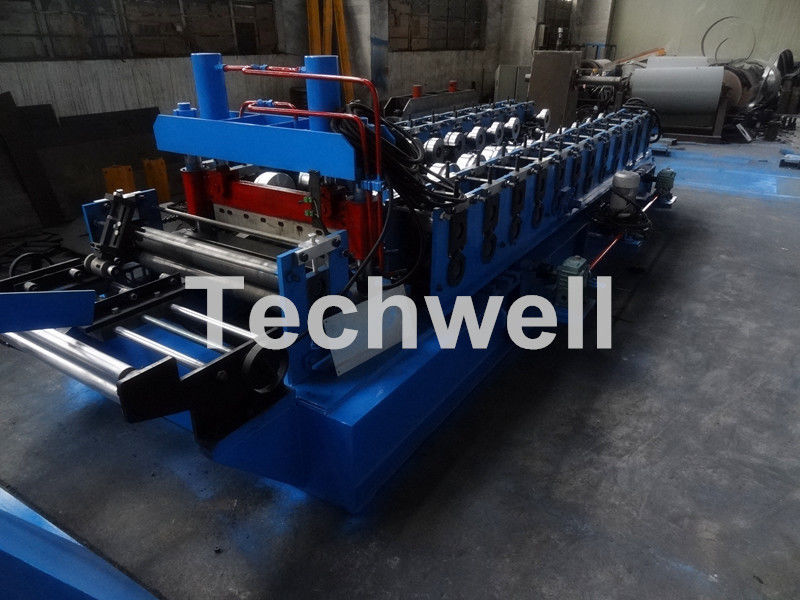

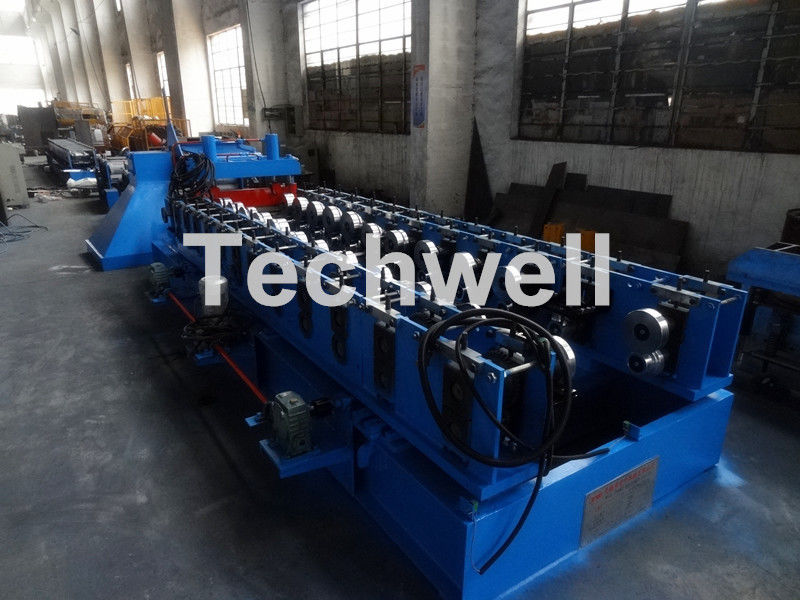

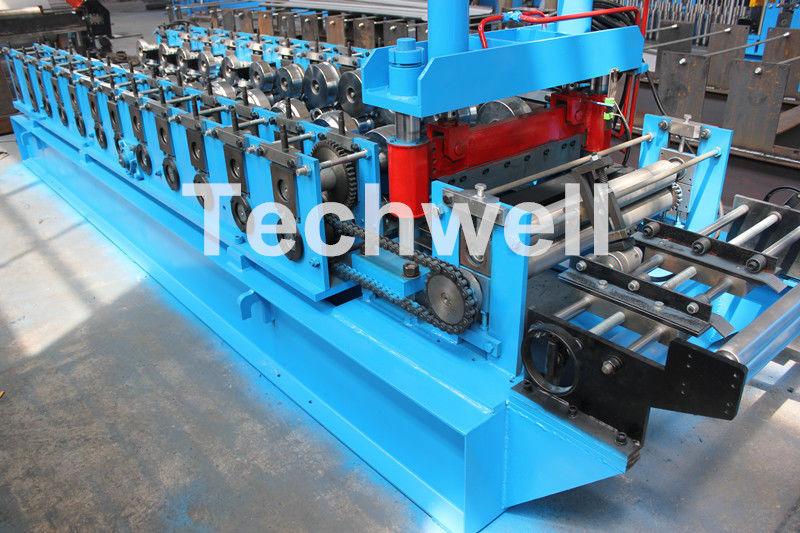

   More Machine Pictures



0-15m/min Forming Speed Cold Roll Forming Machine With Sheet Left And Right Traverse Movement





   Factory Photos



0-15m/min Forming Speed Cold Roll Forming Machine With Sheet Left And Right Traverse Movement
