7 / 10 / 15 Ton Weight Capacity Steel Coil Decoiler With Adjustable Working Speed

China 7 / 10 / 15 Ton Weight Capacity Steel Coil Decoiler With Adjustable Working Speed supplier
7 / 10 / 15 Ton Weight Capacity Steel Coil Decoiler With Adjustable Working Speed supplier 7 / 10 / 15 Ton Weight Capacity Steel Coil Decoiler With Adjustable Working Speed supplier 7 / 10 / 15 Ton Weight Capacity Steel Coil Decoiler With Adjustable Working Speed supplier 7 / 10 / 15 Ton Weight Capacity Steel Coil Decoiler With Adjustable Working Speed supplier

Large Image :  7 / 10 / 15 Ton Weight Capacity Steel Coil Decoiler With Adjustable Working Speed

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-DECOILER

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Coil Width: Max. 1500mm Or Customized Uncoiling Speed: 0-20m/min (Adjustable)
Pressure Of Hydraulic System: 6.3MPa Feeding Type: Active Uncoiling, Hydraulic To Expand
Weight Capacity: 7/10/15Ton Electric Condition: 380V/3Phase/ 50HZ

Automatic Decoiler & Coil Car For Weight Capacity Of 7/10/15 Ton With Adjustable Working Speed





   Description of Hydraulic Uncoiling Machine



This machine can make stretch coil-deliver coil automatically, the speed of which is same with the forming machine. It is a matching machine for colored steel equipment. In order to save human recourse and lower labor cost, it is better to work with colored steel mould machine and stacker, with which it formed a completely porducing line.



7 / 10 / 15 Ton Weight Capacity Steel Coil Decoiler With Adjustable Working Speed





   Main Technical Specifications



Decoiler type Hydraulic decoiler
Feeding type Active uncoiling, hydraulic to expand
Machine Frame welding structure with shot lasting treatment
Description Put the coil to the mandrel, the hydraulic cylinder will tighten the coil.
Start the machine, the motor will drive the mandrel at first, then the steel sheet will be released to the leveling
Electric releasing coil, hydraulic expanding, tension
Weight capacity 7/10/15 Ton
Coil width Max. 1500mm
I.D 508-610mm
O.D 1300mm
Material of main shaft 40Cr
Hydraulic motor power 5.0Kw
Hydraulic System Power 3KW
Uncoiling speed 0-20m/min, adjustable
Hydraulic system pressure 6.3Mpa
Coil car stoke 2.5m
Weight of coil car 7/10/15 Ton





   Competitive Advantages





1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements

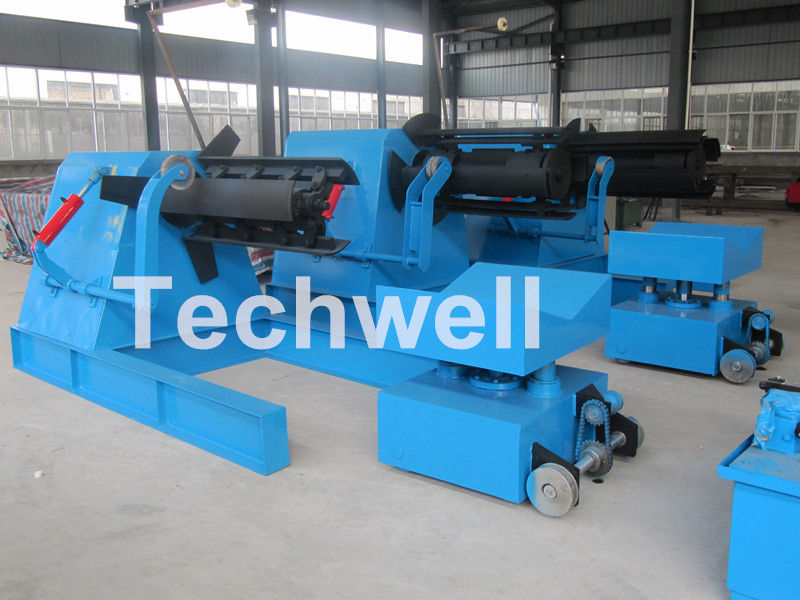

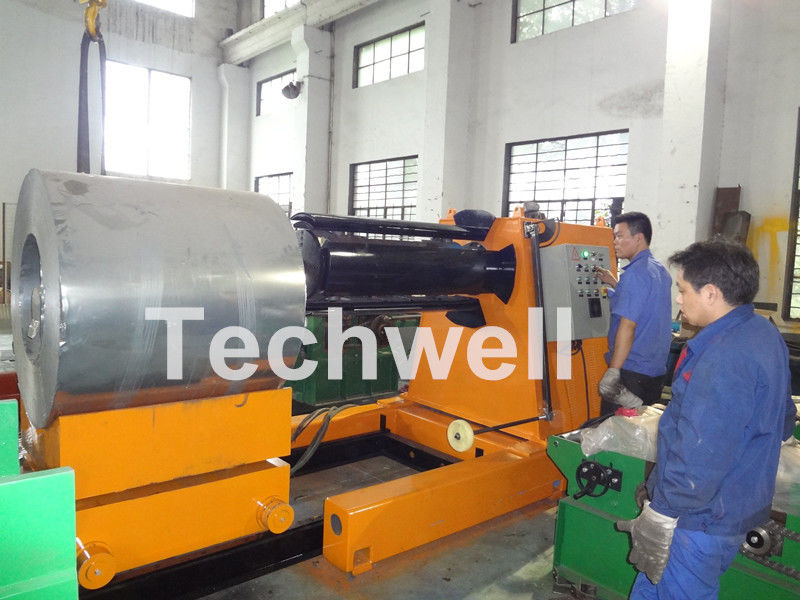

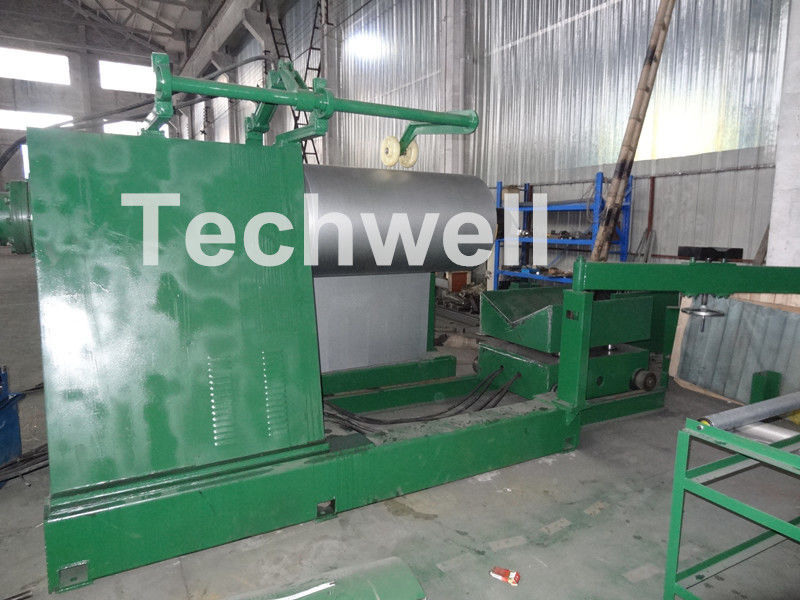

   More Machine Pictures



7 / 10 / 15 Ton Weight Capacity Steel Coil Decoiler With Adjustable Working Speed

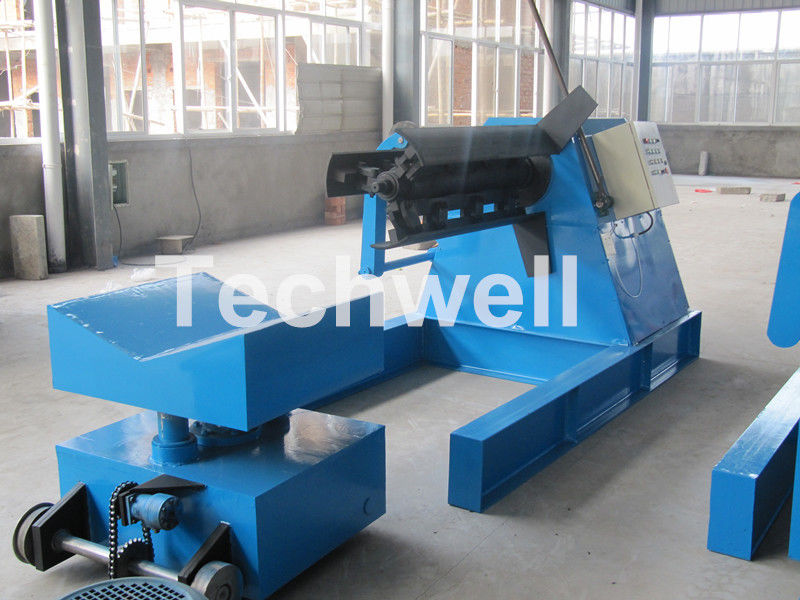

   Machine Photos With Loading Container



7 / 10 / 15 Ton Weight Capacity Steel Coil Decoiler With Adjustable Working Speed
