G550Mpa 0.18mm Cold Roll Forming Machine , Glazed Tile Roll Forming Machine

China G550Mpa 0.18mm Cold Roll Forming Machine , Glazed Tile Roll Forming Machine supplier
G550Mpa 0.18mm Cold Roll Forming Machine , Glazed Tile Roll Forming Machine supplier G550Mpa 0.18mm Cold Roll Forming Machine , Glazed Tile Roll Forming Machine supplier G550Mpa 0.18mm Cold Roll Forming Machine , Glazed Tile Roll Forming Machine supplier G550Mpa 0.18mm Cold Roll Forming Machine , Glazed Tile Roll Forming Machine supplier

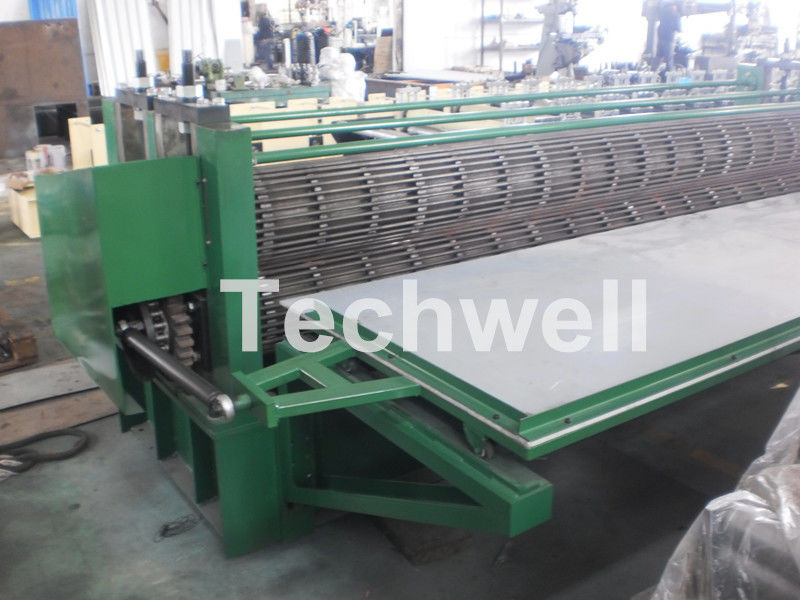

Large Image :  G550Mpa 0.18mm Cold Roll Forming Machine , Glazed Tile Roll Forming Machine

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-C100

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description

G550Mpa 0.18mm Galvanized Steel Horizontal Corrugation Machine, Barrel Type Corrugation Machine





   Description of Horizontal Type Corrugated Sheet Machine



1. Thinner Corrugated Sheet Roll Forming Machine is one special machine widely used in the African Market



2. Because in the African Market , Many Customers used the thinner thickness of the sheet (0.13mm-0.3mm thickness) if you used the normally roll forming machine , the thinner thickness of the sheet is very easy rebound ,So we manufactured the Thinner Corrugated Sheet Roll Forming Machine, The different of this thinner Corrugated Sheet Roll Forming Machine with the Normally corrugated sheet roll forming machine . The Thinner Corrugated Sheet roll forming machine is Horizontal form the sheet, the normally corrugated sheet roll forming machine is vertical formed the sheet.



3. The thinner thickness of the sheet after formed by Thinner Corrugated Sheet Roll Forming Machine are widely used for the roof sheet of the house.





   Main Technical Specifications



Coil material thickness 0.18-0.35mm
Material Galvanized color steel, G550mpa
Feeding width 910mm,1000mm,1200mm, or customized
Roll forming machine 4.2 meters width, can depend on customer's requirements
Rolling speed 12-15m/min
Roller stations 6 stations
Shaft diameter 120mm
Material of cutting Cr12Mov, with quench HRC58-62
Motor 11KW
Voltage 230V, 60Hz, 3 Phase
Material of chain 45# forged steel with frequency quenching





   Reference Profile Drawing



G550Mpa 0.18mm Cold Roll Forming Machine , Glazed Tile Roll Forming Machine

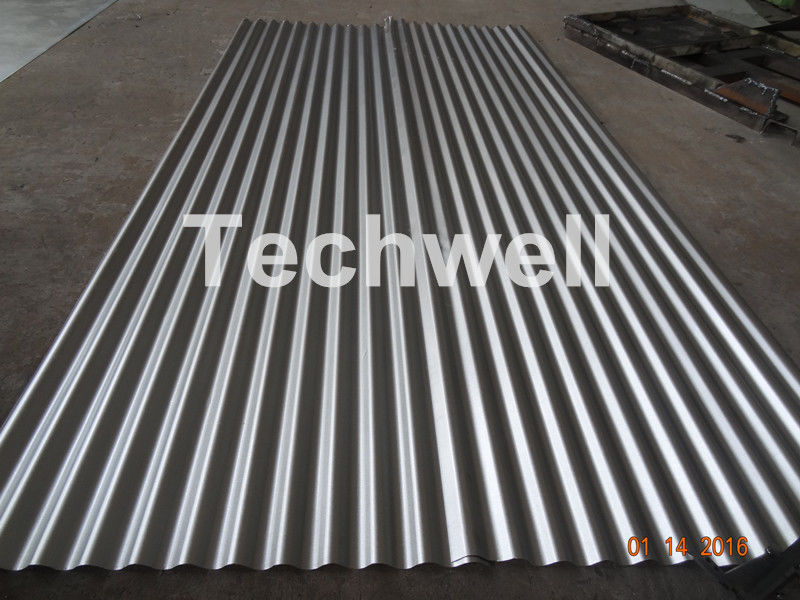

   Finished Sample Sheets



G550Mpa 0.18mm Cold Roll Forming Machine , Glazed Tile Roll Forming Machine





   Competitive Advantages



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

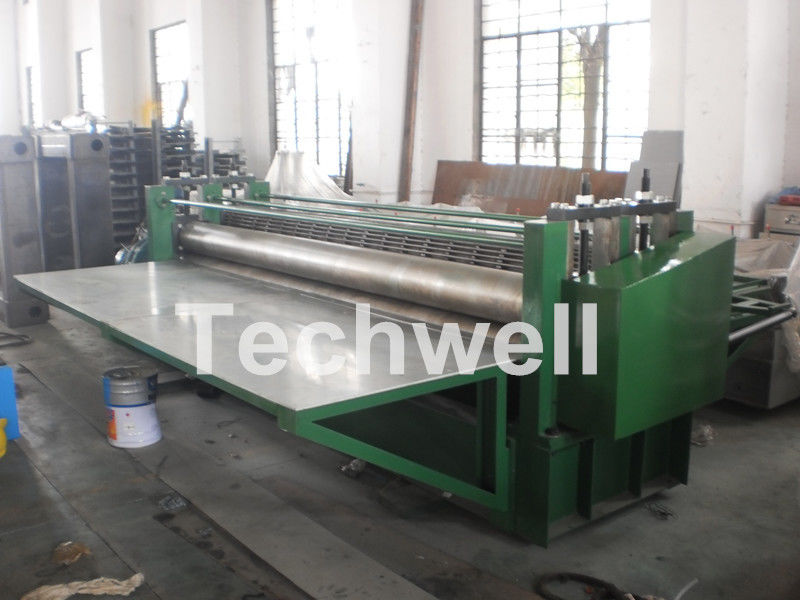

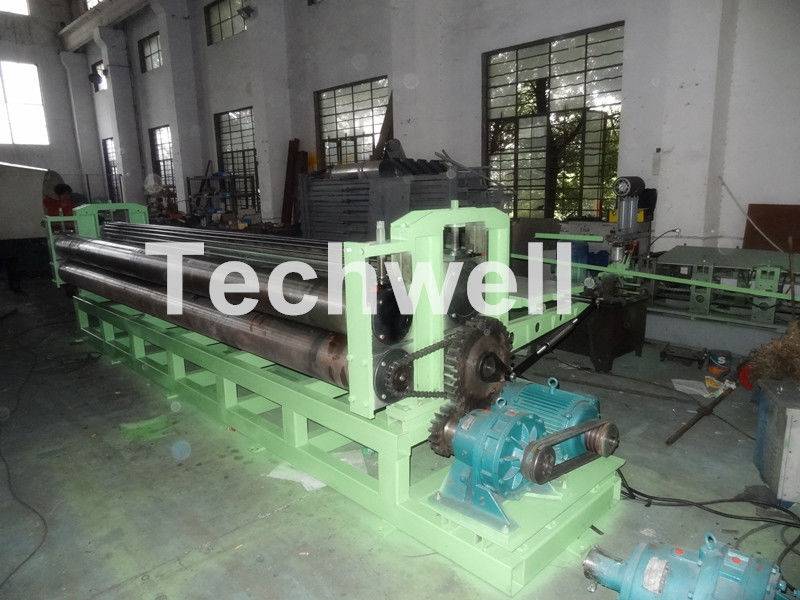

   More Machine Photos



G550Mpa 0.18mm Cold Roll Forming Machine , Glazed Tile Roll Forming Machine
