PLC Control Cold Roll Forming Machine For Different Size Garage Door Panel

China PLC Control Cold Roll Forming Machine For Different Size Garage Door Panel supplier
PLC Control Cold Roll Forming Machine For Different Size Garage Door Panel supplier PLC Control Cold Roll Forming Machine For Different Size Garage Door Panel supplier PLC Control Cold Roll Forming Machine For Different Size Garage Door Panel supplier PLC Control Cold Roll Forming Machine For Different Size Garage Door Panel supplier

Large Image :  PLC Control Cold Roll Forming Machine For Different Size Garage Door Panel

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-DP008

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Forming Stand Type: Welded Wall Plate Frame With Chain Drive Cutting Type: Hydraulic Shearing And Flanging Integral Mold
Cutting Blade Material: Cr12Mov, Quench Treatment, HRC58-62 Hydraulic Station Power: 11KW
Forming Motor: 7.5KW Shaft Diameter: Φ 70mm

Size Adjustable Garage Door Skin Panel Cold Roll Forming Machine for Different Door Panel Profile Size


   Summary of Door Panel Roll Former

1). This door panel roll forming machine adopts galvanized coil production material to form door panel through 5 Ton hydraulic de-coiler, embossing guide feeding, hydraulic pressing, main roll forming part, Hydraulic shear and folding composite mold, hydraulic station, PLC control system and Non-power type support tables.

2) The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.

3) Forming Speed: about 15 m/min ( not excluding punching & cutting time);


   Main Technical Specifications

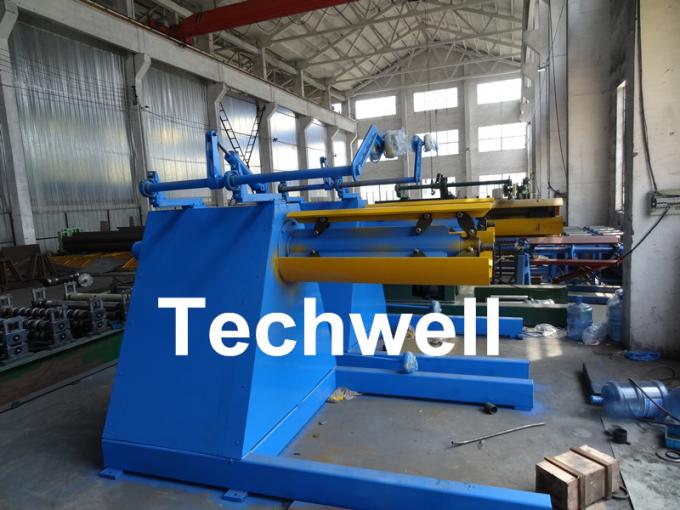

 1). 5 Ton Hydraulic Uncoiler

  1. Machine frame: welding structure with shot lastingtreatment

  2. Description: Put the coil to the mandrel, the hydraulic cylinder will tighten the coil.

  3. Start the machine, the motor will drive the mandrel at first, then the steel sheet will be released to the leveling

  4. Electric releasing coil, hydraulic expanding, tension

  5. Weight capacity: 5 Ton

  6. I.D: 460-530mm

  7. Motor Power: 4.0KW

  8. Hydraulic System Power: 3.0KW

PLC Control Cold Roll Forming Machine For Different Size Garage Door Panel

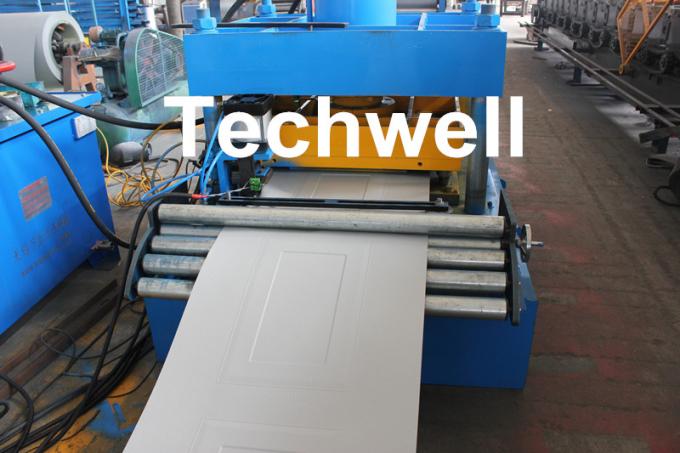

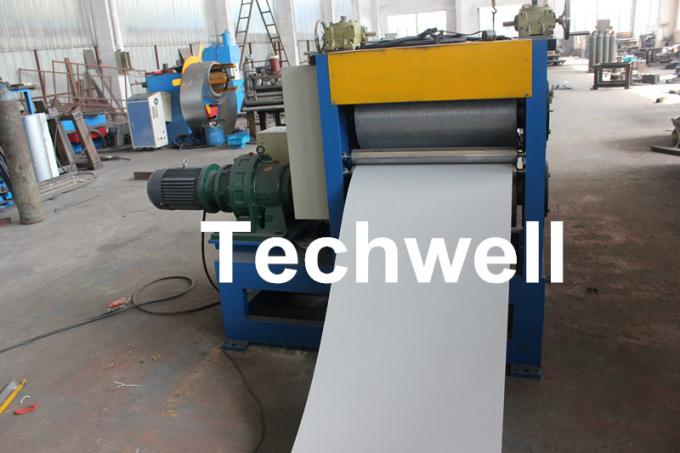

 2). Embossing Feeder

  1. Embossing Pattern: Customized as sample provided by client
  2. Roller Material: Superior alloy steel,42 CrMov alloy steel solid forging.
  3. Process of roller: Quenching – Tempering at high temperature – Middle frequency quenching – Surface hardness HRC43-52
  4. Roller pattern adopt laser sculpture
  5. Main Motor Power: 5.5KW frequency speed control

PLC Control Cold Roll Forming Machine For Different Size Garage Door Panel

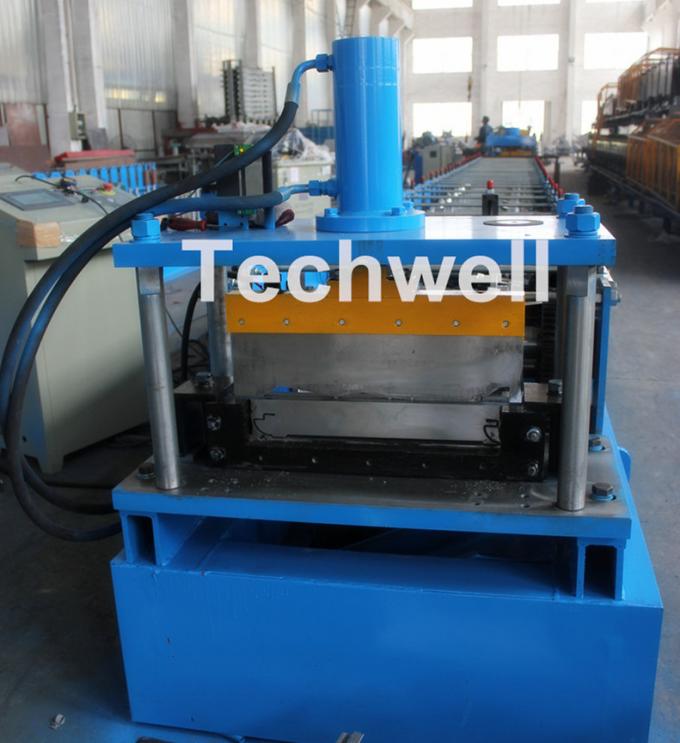

 3). Hydraulic Pressing Unit

  1. Pressing type: Hydruallic type
  2. Pressing mould: 40Cr
  3. Pressing Die size: according to drawing
  4. Punching controlled by PLC

PLC Control Cold Roll Forming Machine For Different Size Garage Door Panel

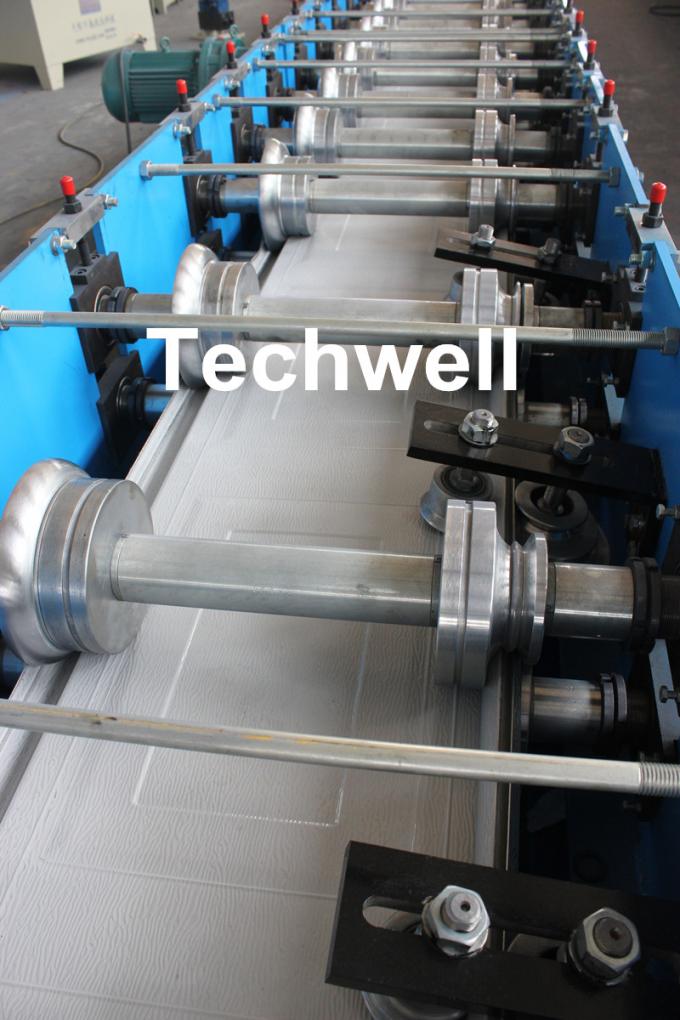

 4). Main Door Panel Roll Forming Machine

  1. Forming material thickness: 1.0-2.0mm
  2. Forming material type: GI or Carbon Steel
  3. Feeding type: guide feeding
  4. Machine Frame: high grade steel welded and tempering treatment
  5. Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)
  6. Shaft Diameter: Φ 70mm
  7. Bearing: HRB bearing ( Top Chinese brand )
  8. Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm
  9. Forming Station: ≈ 12 stations
  10. Forming Speed: 0-15m/min, excluding punching / cutting time
  11. Forming Motor: 7.5KW
  12. Size adjustment: electrical power adjustment
  13. Forming Stand Type: Welded Wall Plate Frame with Chain Drive

PLC Control Cold Roll Forming Machine For Different Size Garage Door Panel


 5). Hydraulic Cutting & Hydraulic Station

  1. Cutting type: Hydraulic Shearing and Flanging Integral Mold
  2. When Cutting, Machine stop
  3. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62
  4. Hydraulic system to supply power for pressing / cutting device
  5. Hydraulic Station Power: 11KW

PLC Control Cold Roll Forming Machine For Different Size Garage Door Panel


 6). PLC Control System

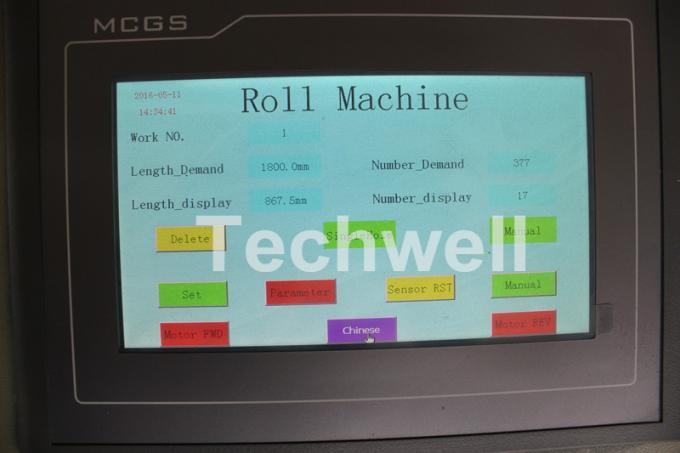

  1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.
  2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.

PLC Control Cold Roll Forming Machine For Different Size Garage Door Panel


 7). Run-out Table

  1. Form: Steel welding structure, no-power exit rack
  2. Quantity:1 pieces

PLC Control Cold Roll Forming Machine For Different Size Garage Door Panel



   Main Components


5 Ton Hydraulic Uncoiler1 Unit
Embossing Feeder1 Unit
Hydraulic Pressing Device1 Unit
Main Roll Forming1 Unit
Hydraulic Cutting1 Unit
PLC Electrical Control Board1 Unit
Hydraulic Stations1 Unit
Support Tables1 Unit



   Competitive Advantages


  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

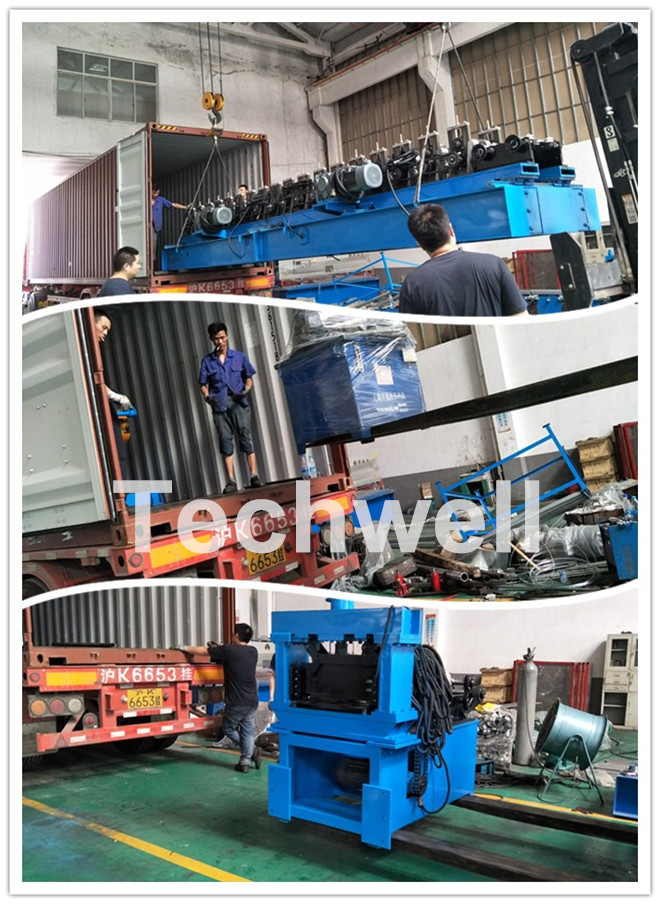

   Shipment photos of Machine
