7.5KW Metal Tile Roll Forming Machine For Color Steel / Galvanized Coil

China 7.5KW Metal Tile Roll Forming Machine For Color Steel / Galvanized Coil supplier
7.5KW Metal Tile Roll Forming Machine For Color Steel / Galvanized Coil supplier 7.5KW Metal Tile Roll Forming Machine For Color Steel / Galvanized Coil supplier 7.5KW Metal Tile Roll Forming Machine For Color Steel / Galvanized Coil supplier 7.5KW Metal Tile Roll Forming Machine For Color Steel / Galvanized Coil supplier

Large Image :  7.5KW Metal Tile Roll Forming Machine For Color Steel / Galvanized Coil

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-GTM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Raw Material: Color Steel, Galvanized Coil Machine Frame: Welded Structural Advanced Steel
Forming Motor: 7.5KW Shaft Diameter: Φ 75mm
Forming Station: 18 Stations Drive Type: Chain Of Transmission

Metal Tile Cold Roll Forming Machine For Color Steel / Galvanized Coil With 18 Forming Stations





   Main Technical Specifications





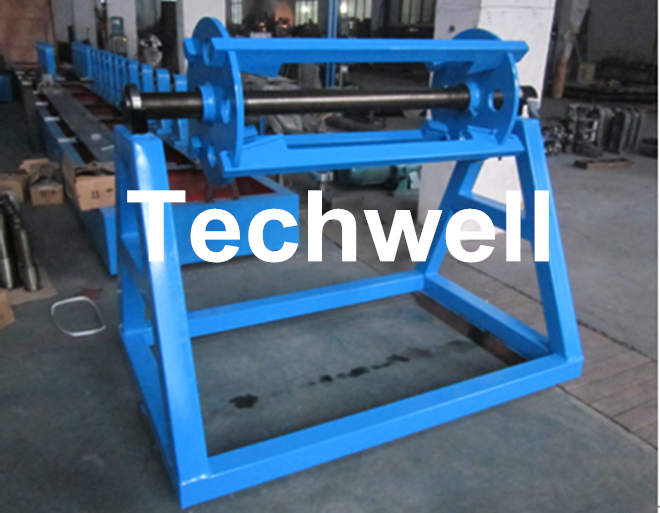

 1). 5 Ton Manual Uncoiler

  1. Decoiler Type: Manual type decoiler

  2. Manual expanding, Passive uncoiling

  3. Weight capacity: 5 Ton

  4. I.D: 508mm

7.5KW Metal Tile Roll Forming Machine For Color Steel / Galvanized Coil



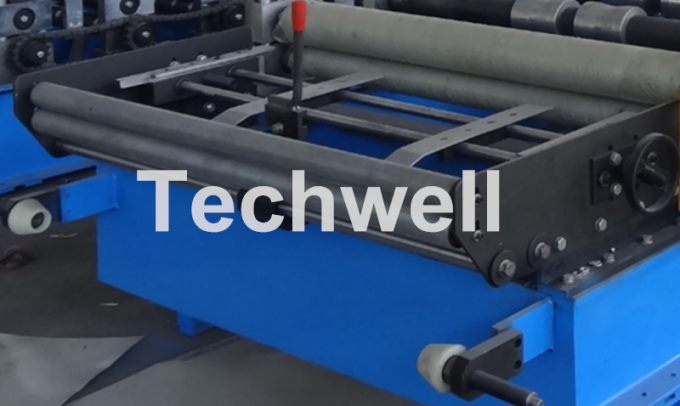

 2). Feeding Guide

  1. Two guiding platforms are set at right and left of the feeding entrance of the main machine.
  2. The material being fed into the main machine by the two guiding platform can keep the correct position to the roll forming system. It can be manually adjusted by screw bar.

7.5KW Metal Tile Roll Forming Machine For Color Steel / Galvanized Coil



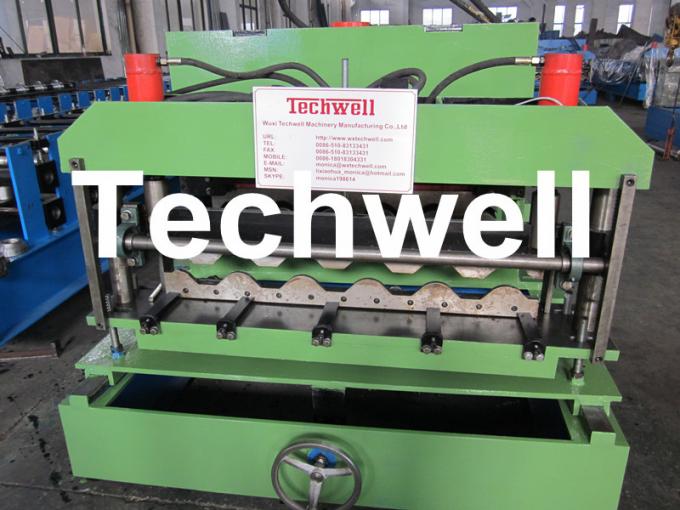

 3). Main Roll Forming Machine

  1. Forming material thickness: 0.3-0.7mm
  2. Forming material type: GI or Carbon Steel
  3. Feeding type: guide feeding
  4. Machine Frame: high grade steel welded and tempering treatment
  5. Shaft Material: 45# high grade steel tempering treatment (HB220-260)
  6. Shaft Diameter: Φ 75mm
  7. Bearing: HRB bearing ( Top Chinese brand )
  8. Roller Material: 45# high grade steel, and roller surface with hard chrome 0.05mm
  9. Forming Station: ≈ 18 stations
  10. Forming Speed: 0-15m/min, excluding cutting time
  11. Forming Motor: 7.5KW
  12. Forming Stand Type: Welded Wall Plate Frame with Chain Drive

7.5KW Metal Tile Roll Forming Machine For Color Steel / Galvanized Coil



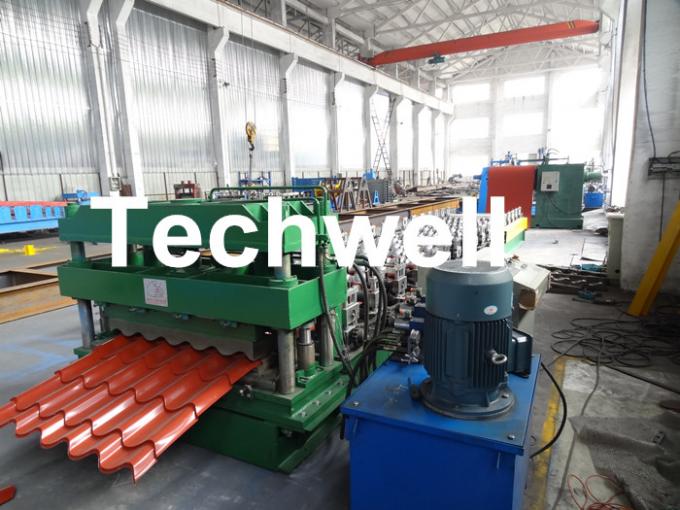

 4). Pressing & Cutting & Hydraulic Station

  1. Cutting shear & pressing type: Hydraulic cutting, pressure-type one mould
  2. Cutting type: Hydraulic cutting after roll forming, Burr-free cutting
  3. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62
  4. Hydraulic system to supply power for pressing / cutting device
  5. Hydraulic Station Power: 5.5KW
  6. Cutting Tolerance: 10m ± 2.0mm

7.5KW Metal Tile Roll Forming Machine For Color Steel / Galvanized Coil

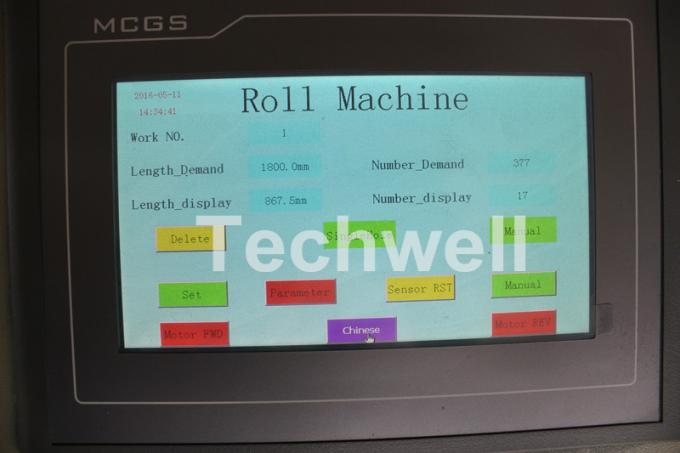

 5). PLC Control System

  1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.
  2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.

7.5KW Metal Tile Roll Forming Machine For Color Steel / Galvanized Coil





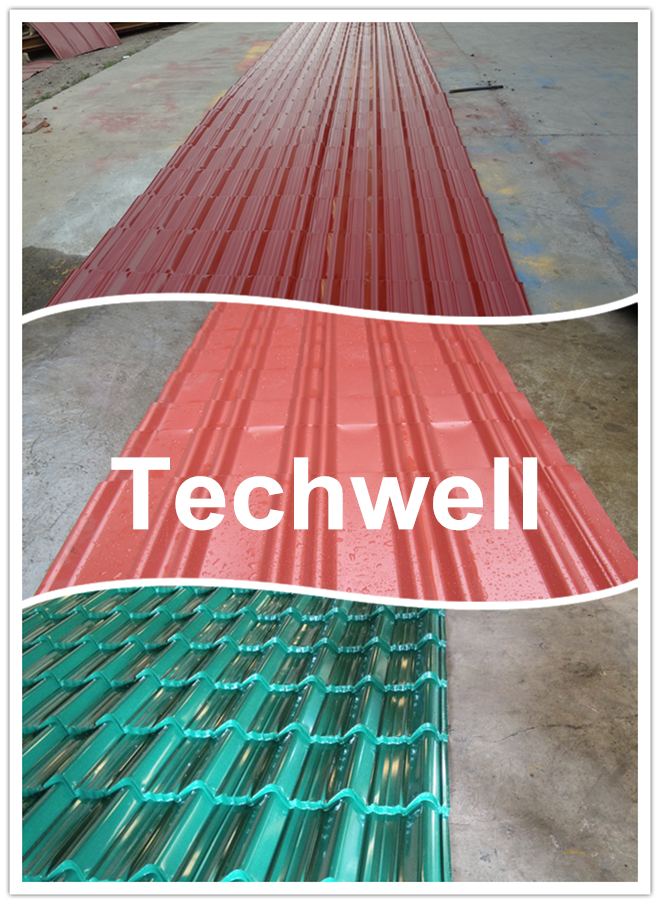

   Finished Sample Sheets



7.5KW Metal Tile Roll Forming Machine For Color Steel / Galvanized Coil

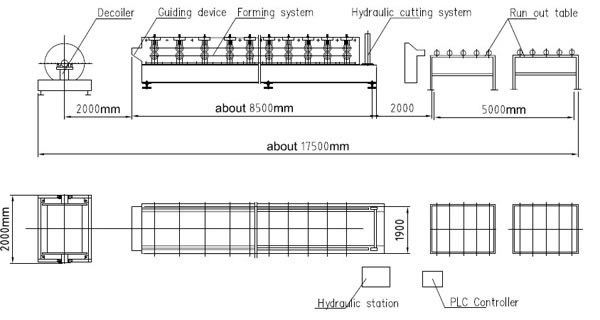

   Working Flow Chart



7.5KW Metal Tile Roll Forming Machine For Color Steel / Galvanized Coil





   Applications



Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing



sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding
