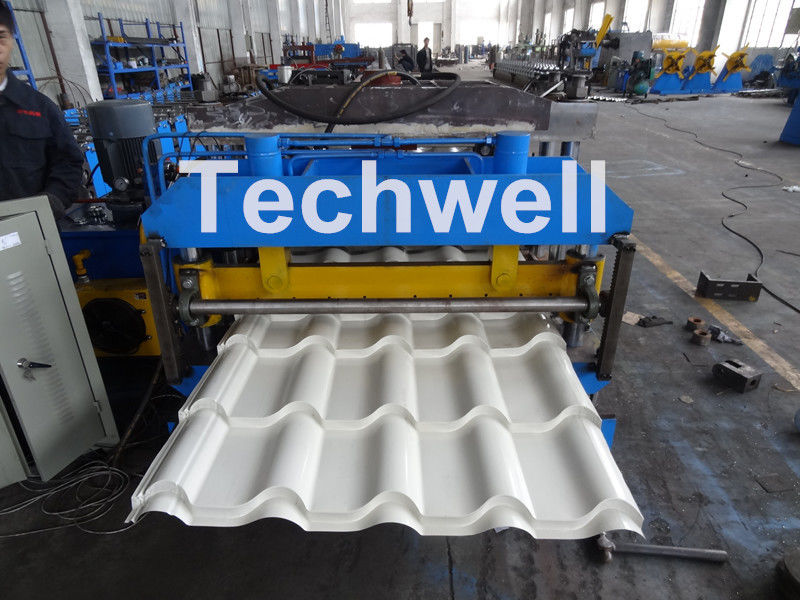

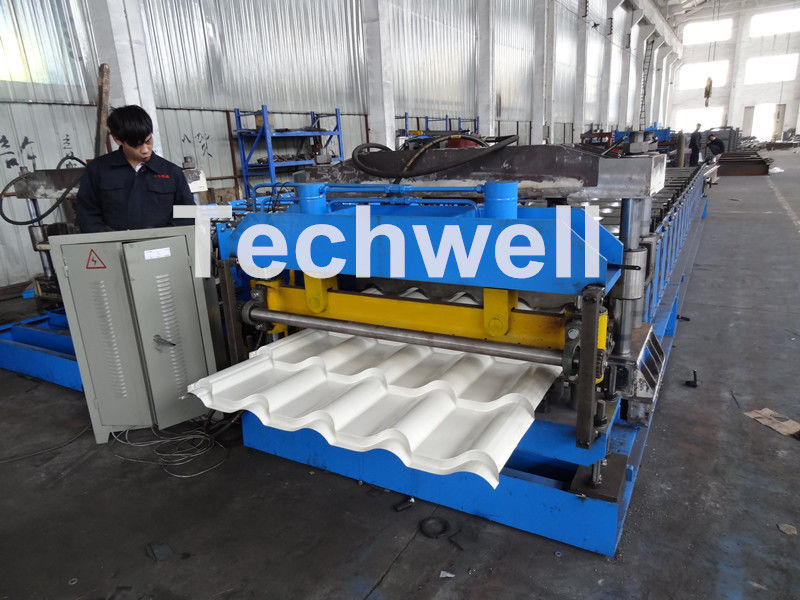

Automatic PLC Controlled Tile Roll Forming Machine For Steel Metal Glazed Tile

China Automatic PLC Controlled Tile Roll Forming Machine For Steel Metal Glazed Tile supplier
Automatic PLC Controlled Tile Roll Forming Machine For Steel Metal Glazed Tile supplier Automatic PLC Controlled Tile Roll Forming Machine For Steel Metal Glazed Tile supplier Automatic PLC Controlled Tile Roll Forming Machine For Steel Metal Glazed Tile supplier Automatic PLC Controlled Tile Roll Forming Machine For Steel Metal Glazed Tile supplier

Large Image :  Automatic PLC Controlled Tile Roll Forming Machine For Steel Metal Glazed Tile

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-GTM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Forming Material Thickness: 0.3-0.8mm Feeding Type: Guide Feeding
Shaft Material: 45# High Grade Steel Tempering Treatment (HB220-260) Roller Material: 45# High Grade Steel, And Roller Surface With Hard Chrome ≥ 0.05mm
Hydraulic Station Power: 5.5KW Cutting Blade Material: Cr12Mov, Quench Treatment, HRC58-62

Automatic PLC Controlled Step Roof Tile Roll Forming Machine for Making Steel Metal Glazed Tile





   Description of the tile roll former

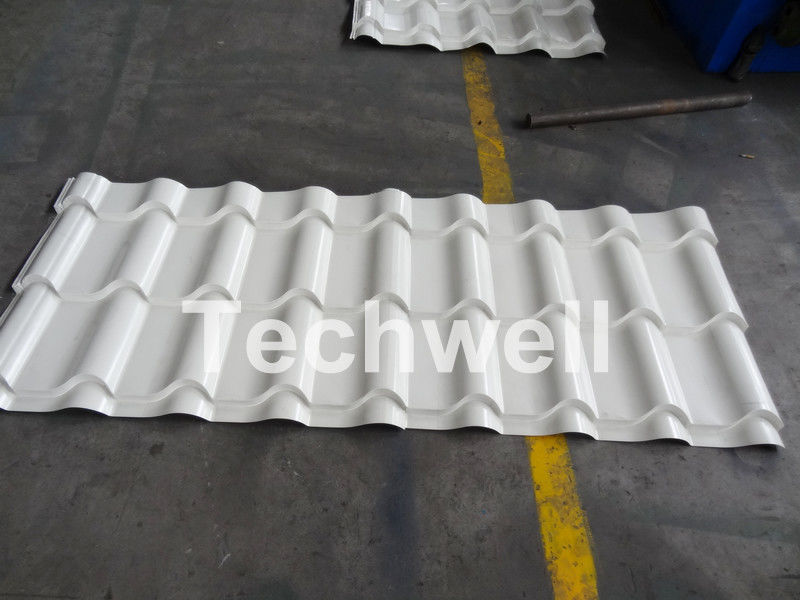

1). This Wall Panel Tile Roof Profile Roll Forming Machine can rollform metal roofing wall sheet. After roll formed by this wall panel sheet roll forming machine, the surface of iron roof wall panel is very smooth and beautiful without any scratch on the surface of profile sheets.



2). The Roof Tile Sheet Roll Forming Machine is with fully automatic control system with PLC.



3). 1 Year warranty, lifelong time service.



4). We also can do a custom roll forming machine, we can design machines according to your specifications and profile drawings, all our machines are customized.





   Main Technical Specifications





 1). 5 Ton Manual Uncoiler

  1. Decoiler Type: Manual type decoiler

  2. Manual expanding, Passive uncoiling

  3. Weight capacity: 5 Ton

  4. I.D: 508mm

Automatic PLC Controlled Tile Roll Forming Machine For Steel Metal Glazed Tile



 2). Feeding Guide

  1. Two guiding platforms are set at right and left of the feeding entrance of the main machine.
  2. The material being fed into the main machine by the two guiding platform can keep the correct position to the roll forming system. It can be manually adjusted by screw bar.

Automatic PLC Controlled Tile Roll Forming Machine For Steel Metal Glazed Tile



 3). Main Roll Forming Machine

  1. Forming material thickness: 0.3-0.7mm
  2. Forming material type: GI or Carbon Steel
  3. Feeding type: guide feeding
  4. Machine Frame: high grade steel welded and tempering treatment
  5. Shaft Material: 45# high grade steel tempering treatment (HB220-260)
  6. Shaft Diameter: Φ 75mm
  7. Bearing: HRB bearing ( Top Chinese brand )
  8. Roller Material: 45# high grade steel, and roller surface with hard chrome 0.05mm
  9. Forming Station: ≈ 18 stations
  10. Forming Speed: 0-15m/min, excluding cutting time
  11. Forming Motor: 7.5KW
  12. Forming Stand Type: Welded Wall Plate Frame with Chain Drive

Automatic PLC Controlled Tile Roll Forming Machine For Steel Metal Glazed Tile



 4). Pressing & Cutting & Hydraulic Station

  1. Cutting shear & pressing type: Hydraulic cutting, pressure-type one mould
  2. Cutting type: Hydraulic cutting after roll forming, Burr-free cutting
  3. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62
  4. Hydraulic system to supply power for pressing / cutting device
  5. Hydraulic Station Power: 5.5KW
  6. Cutting Tolerance: 10m ± 2.0mm

Automatic PLC Controlled Tile Roll Forming Machine For Steel Metal Glazed Tile



 5). PLC Control System

  1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.
  2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.

Automatic PLC Controlled Tile Roll Forming Machine For Steel Metal Glazed Tile





   Working Flowing



Decoiler -------- Guide Feeding ------ Main Roll Forming Machine ------- Hydraulic Cutting & Pressing ------ Support



Table



Automatic PLC Controlled Tile Roll Forming Machine For Steel Metal Glazed Tile





   Competitive Advantages



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

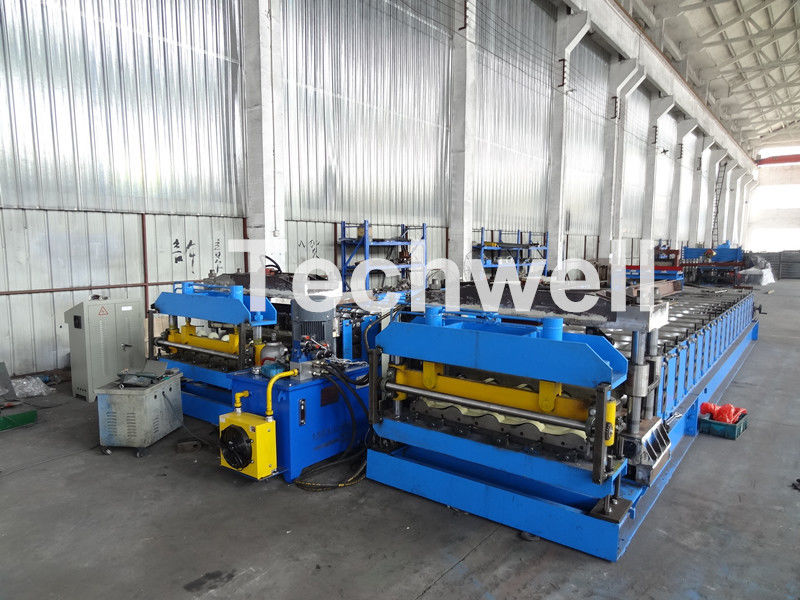

   More Machine Pictures



Automatic PLC Controlled Tile Roll Forming Machine For Steel Metal Glazed Tile
