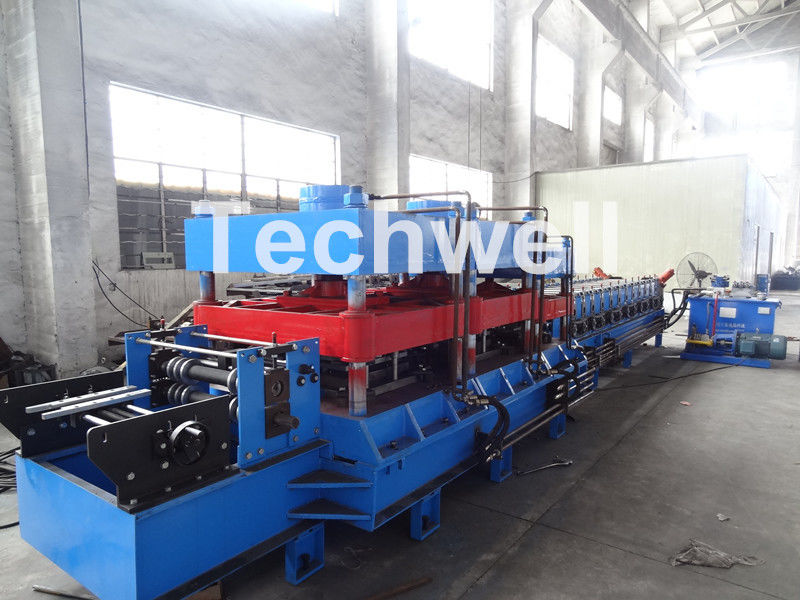

2 In 1 Metal Stud Roll Forming Machine , Sheet Metal Roll Forming Machines

China 2 In 1 Metal Stud Roll Forming Machine , Sheet Metal Roll Forming Machines supplier
2 In 1 Metal Stud Roll Forming Machine , Sheet Metal Roll Forming Machines supplier 2 In 1 Metal Stud Roll Forming Machine , Sheet Metal Roll Forming Machines supplier 2 In 1 Metal Stud Roll Forming Machine , Sheet Metal Roll Forming Machines supplier 2 In 1 Metal Stud Roll Forming Machine , Sheet Metal Roll Forming Machines supplier

Large Image :  2 In 1 Metal Stud Roll Forming Machine , Sheet Metal Roll Forming Machines

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-ST45

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Forming Rollers: 2 Lines (one Line For C Stud Profile, Another Line For U Track Profile) Machine Frame: High Grade Steel Welded And Tempering Treatment
Shaft Material: 65mm Forming Speed: 0-15m/min
Forming Station: About 14 ( Depend On Profile Drawing ) Material Of Roller: High Grade 45# Forge Steel, Polished And Coated With 0.05mm Chrome Surface.

2 In 1 Metal Stud Track Cold Roll Forming Machine For C Stud & U Runner 2 Lines





   Main Technical Specifications





 1). 3 Ton Manual Uncoiler

  1. Decoiler Type: Manual type decoiler

  2. Manual expanding, Passive uncoiling

  3. Weight capacity: 3Ton

  4. I.D: 508mm

2 In 1 Metal Stud Roll Forming Machine , Sheet Metal Roll Forming Machines

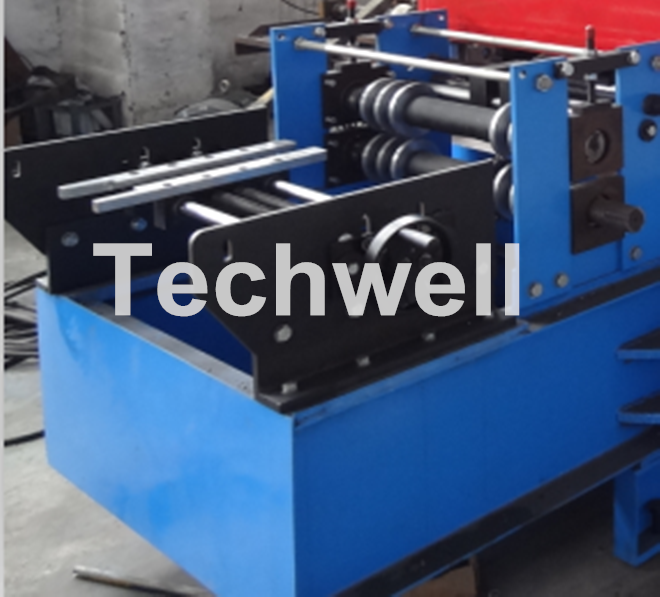

 2). Feeding Guide

  1. Two guiding platforms are set at right and left of the feeding entrance of the main machine.
  2. The material being fed into the main machine by the two guiding platform can keep the correct position to the roll forming system. It can be manually adjusted by screw bar.

2 In 1 Metal Stud Roll Forming Machine , Sheet Metal Roll Forming Machines

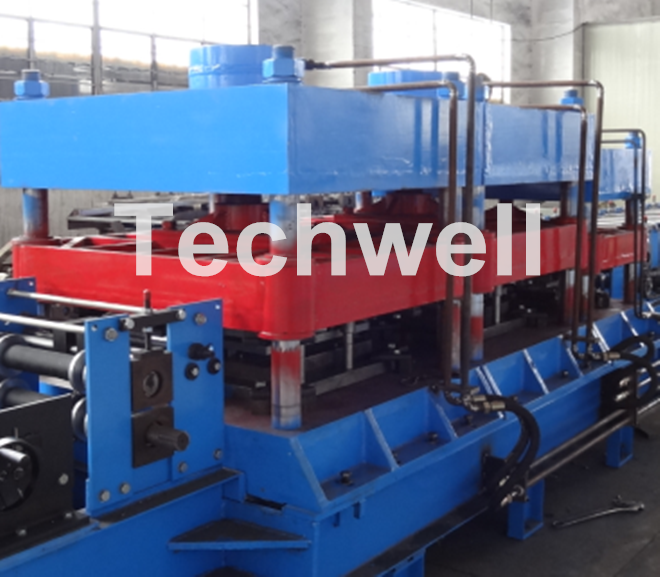

 3). Hydraulic Pre-punching

  1. Punching Die: Cr12 Mov, quenching process
  2. Punching Die size: according to drawing

2 In 1 Metal Stud Roll Forming Machine , Sheet Metal Roll Forming Machines

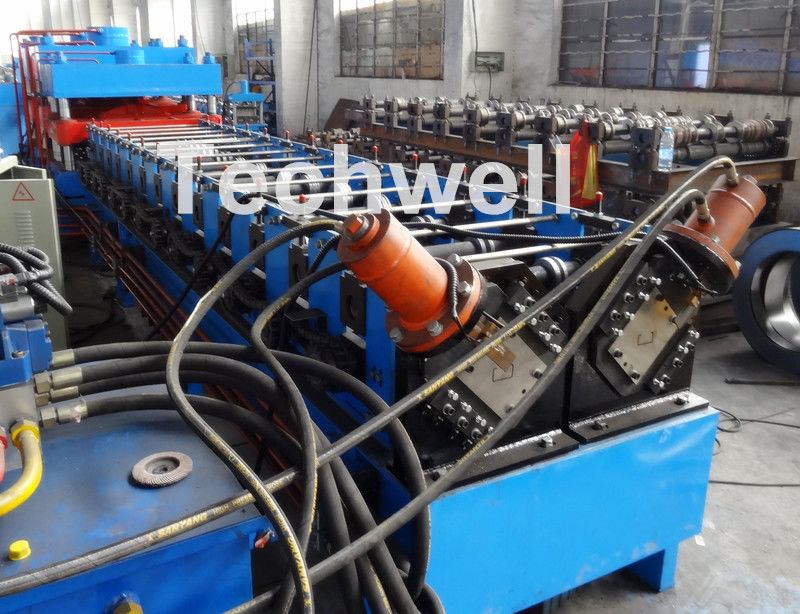

 4). Main Roll Forming Machine

  1. Forming material thickness: 0.3-0.7mm
  2. Forming material type: GI or Carbon Steel
  3. Machine Frame: high grade steel welded and tempering treatment
  4. Forming rollers: 2 lines ( one line for C stud profile, Another line for U track profile. )
  5. Shaft Material: 45# high grade steel tempering treatment (HB220-260)
  6. Shaft Diameter: Φ 65mm
  7. Bearing: HRB bearing ( Top Chinese brand )
  8. Roller Material: 45# high grade steel, and roller surface with hard chrome 0.05mm
  9. Forming Station: ≈ 14 stations
  10. Forming Speed: 0-15m/min, excluding cutting time
  11. Forming Motor: ≈7.5KW
  12. Drive Type: Chain Drive

2 In 1 Metal Stud Roll Forming Machine , Sheet Metal Roll Forming Machines

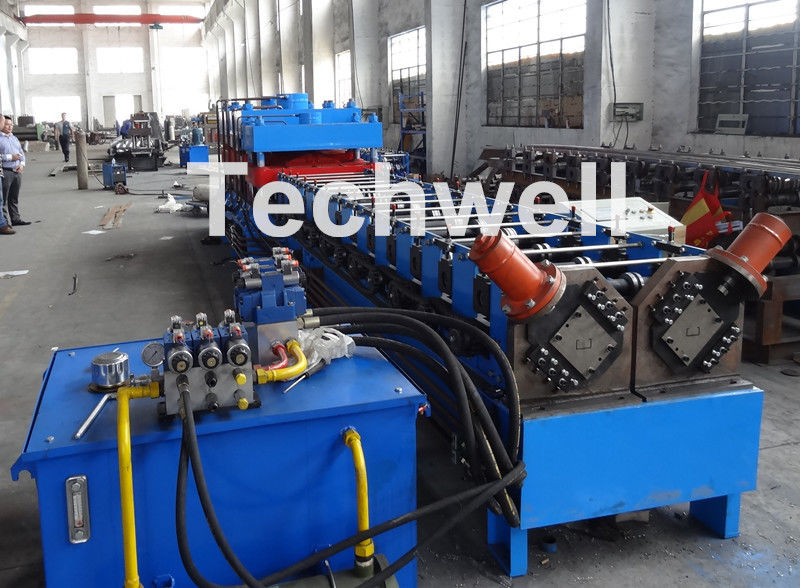

 5). Cutting & Hydraulic Station

  1. Cutting type: Hydraulic cutting after roll forming, Burr-free cutting
  2. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62
  3. Hydraulic system to supply power for cutting device
  4. Hydraulic Station Power: 5.0KW
  5. Cutting Tolerance: 10m ± 1.5mm



 6). PLC Control System

  1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.
  2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.

2 In 1 Metal Stud Roll Forming Machine , Sheet Metal Roll Forming Machines





   Reference Profile Drawing



2 In 1 Metal Stud Roll Forming Machine , Sheet Metal Roll Forming Machines
2 In 1 Metal Stud Roll Forming Machine , Sheet Metal Roll Forming Machines





   Main Components



  1. Uncoiler / Decoiler ----------------------------------------------------- 1 Unit
  2. Pinch Feeding ---------------------------------------------------------- 1 Unit
  3. Hydraulic Punching ---------------------------------------------------- 1 Unit
  4. Main Roll Forming Part ----------------------------------------------- 1 Unit
  5. Hydraulic Cutting ------------------------------------------------------- 1 Unit
  6. Electrical Control System -------------------------------------------- 1 Unit
  7. Support Tables --------------------------------------------------------- 1 Unit



   Working Flow Chart



Manual Decoiler → Pinch Feeding → Punching → Main Roll Forming → Hydraulic Cutting → Support Table





   Applications



Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten,



roof truss, c truss, light weight steel truss...

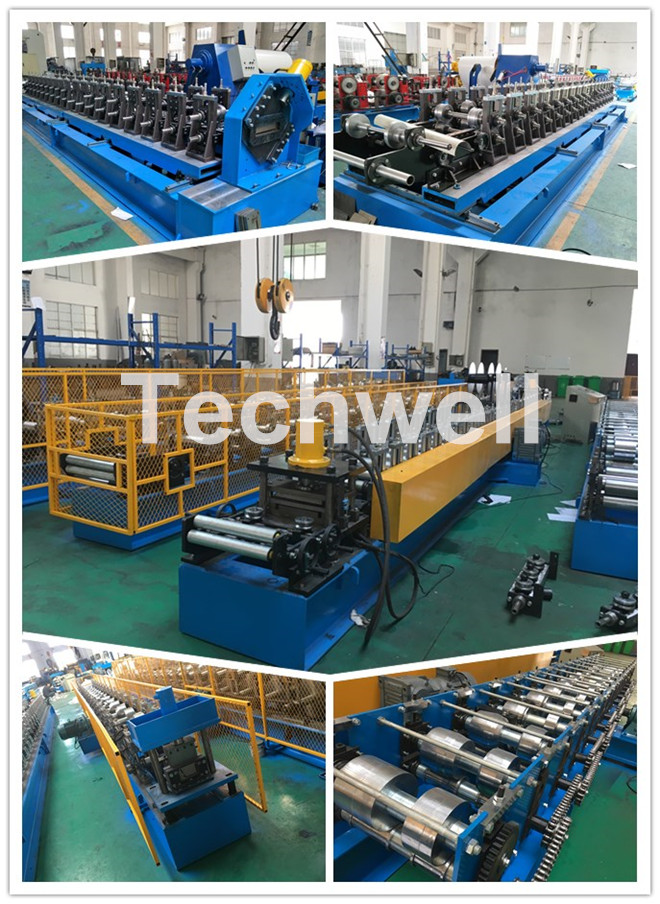

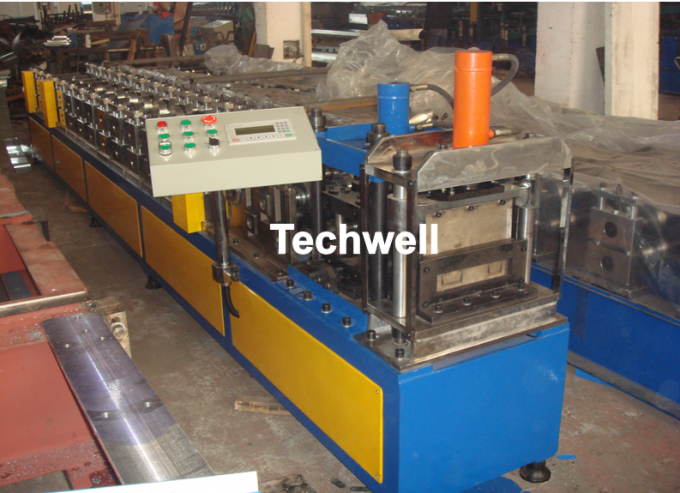

   More Machine Photos



2 In 1 Metal Stud Roll Forming Machine , Sheet Metal Roll Forming Machines
