Technical Specifications of Standing Seam Roll Forming Machine
| Coil Material | Thickness | 0.3-0.8mm |
| Coil width | Custom-made | |
| Yield Strength | 250-350Mpa | |
| Material | PPGI, Color Steel, GI. Aluminium | |
| Decoiler / Uncoiler | Coil Width | Max. 1250mm, Customized |
| I.D | 508-610mm | |
| O.D | Max. 1500mm | |
| Standing Seam Forming Machine | Forming Stations | 11 Stations ( Depend on Profiles ) |
| Roller material | 45# steel, surface coated with 0.05mm hard chrome | |
| Diameter of shaft | 76mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chain transmission | |
| Forming speed | 0-15m/min | |
| Main power | 5.5KW | |
| Hydraulic Cutting | Cutting type | Hydraulic cutting |
| Cutting power | 4KW | |
| Cutting Tolerance | 10m+/-1.5mm | |
| Encoder | OMRON Brand | |
| Electrical control System | PLC | PANASONIC Brand or Custom-made |
| Inverter | YASKAWA Brand or Custom-made | |
| Touch screen | PANASONICE or Custom-made | |
| Operation type | Touch screen & Button | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Runout Table | Table type | Simple nonpower type |
| Function | To support the finished panels |
Main Components of Standing Seam Roll Forming Machine
| Decoiler / Uncoiler | 1 Unit |
| Feeding Guide | 1 Unit |
| Main Standing Seam Roll Forming Machine | 1 Unit |
| Hydraulic Cutting Device | 1 Unit |
| Hydraulic Station | 1 Unit |
| PLC Computer Control Board | 1 Unit |
| Runout Table | 2 Units |
Process Flow Chart of Standing Seam Roll Forming Machine
Decoiler ---> Fedding Guide ---> Roll Forming ---> Cut-to-length ---> Run out table
Standing Seam Roof Profile Drawing For Reference

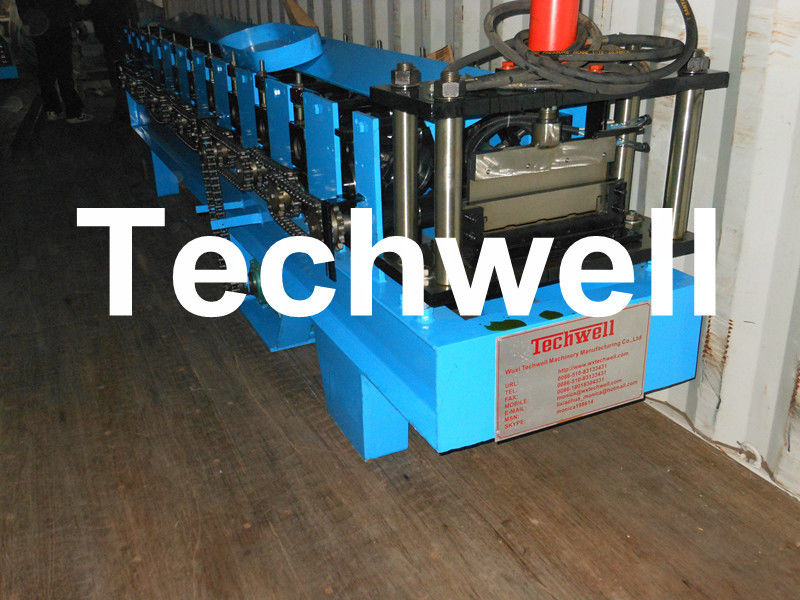

Pictures of Standing Seam Roll Forming Machine
