Hydraulic 1500mm 20m/Min 15T Coil Roll Forming Machine

small.img.alt small.img.alt small.img.alt

Large Image :  Hydraulic 1500mm 20m/Min 15T Coil Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-DECOILER
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Detailed Product Description
Coil Width: Max. 1500mm Or Customized Uncoiling Speed: 0-20m/min (Adjustable)
Pressure Of Hydraulic System: 6.3MPa Feeding Type: Active Uncoiling, Hydraulic To Expand
Weight Capacity: 7/10/15Ton Electric Condition: 380V/3Phase/ 50HZ
High Light:

20m/min coil roll forming machine


1500mm roll forming machinery


15T coil roll forming machine

Hydraulic 1500mm 20m/Min 15T Coil Roll Forming Machine


- The machine is our new type new design,use all import electric part such as PLC,Frequency converter,

- The electromagnetic valve,Aviation plug,Touch screen,and so on.we use the brand such Mitsubishi,Matsushita,Siemens and so on

- Also the oil pump,electric motor Reducer we use Yuken, all the part of the machine have best quality and more than 35 years life time.

- The production size we can design the machine all as customize,customer just show us the profile drawing material thickness width, we can design the machine according as the request

- When we finish the machine, we will test the machine and adjust the machine many times to be sure the machine have a perfect status

- when customer receive the machine, the machine can be used very easy


No. Item Specification
1 Can Formed Material GI,AI
2 Equipment operation Automatic
3 Voltage 380V 60Hz 3Phase or as your requirement
4 Thickness of sheet (mm) 0.8-1.2mm
5 Material width(mm) As your requirement
6 Cover Width of the sheet after formed as your drawing
7 The size of the roll forming machine 5000mmx800mmx1400mm
8 Speed 8-15m/min
9 Diameter of shaft 40mm
10 Weight of the Machine 3000-3500KGS
11 Material of rollers C45 steel quenched and chromed
12 Motor brand Siemens or Guomao
13 PLC Siemens or Delta or Mitsubushi
14 Total power (kw) 8kw
15 Power of hydraulic system 4kw
16 Power of main molding core 4kw



   Description of Hydraulic Uncoiling Machine


This machine can make stretch coil-deliver coil automatically, the speed of which is same with the forming machine. It is a matching machine for colored steel equipment. In order to save human recourse and lower labor cost, it is better to work with colored steel mould machine and stacker, with which it formed a completely porducing line.



   Main Technical Specifications


Decoiler type Hydraulic decoiler
Feeding type Active uncoiling, hydraulic to expand
Machine Frame welding structure with shot lasting treatment
Description Put the coil to the mandrel, the hydraulic cylinder will tighten the coil.
Start the machine, the motor will drive the mandrel at first, then the steel sheet will be released to the leveling
Electric releasing coil, hydraulic expanding, tension
Weight capacity 7/10/15 Ton
Coil width Max. 1500mm
I.D 508-610mm
O.D 1300mm
Material of main shaft 40Cr
Hydraulic motor power 5.0Kw
Hydraulic System Power 3KW
Uncoiling speed 0-20m/min, adjustable
Hydraulic system pressure 6.3Mpa
Coil car stoke 2.5m
Weight of coil car 7/10/15 Ton



   Competitive Advantages



1. Durable and widely used products

2. Simple to operate when assemble

3. Direct manufacturer, provide with high quality and best price.

4. Provide sample in free.

5. Products and design solution supplied fast and freely

6. Best design oriented for your special requirements

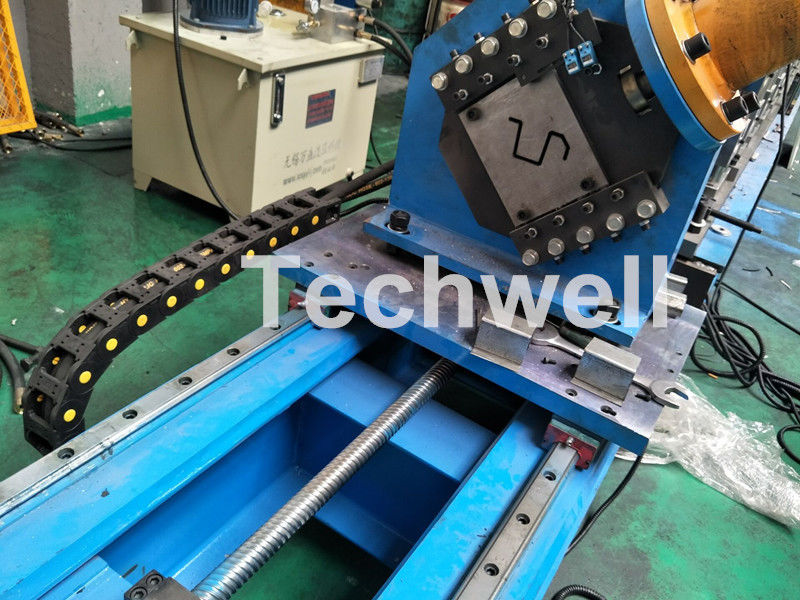

Hydraulic 1500mm 20m/Min 15T Coil Roll Forming Machine 0


   More Machine Pictures

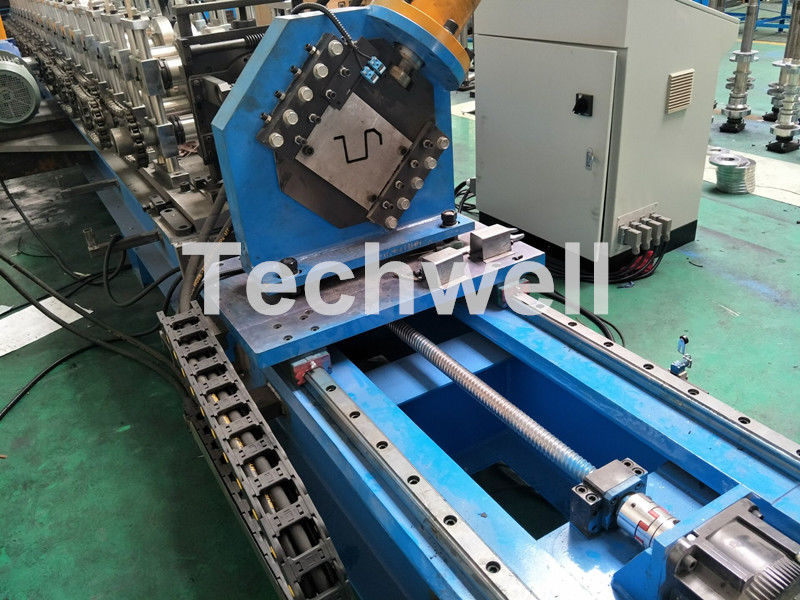

Hydraulic 1500mm 20m/Min 15T Coil Roll Forming Machine 1



   Machine Photos With Loading Container

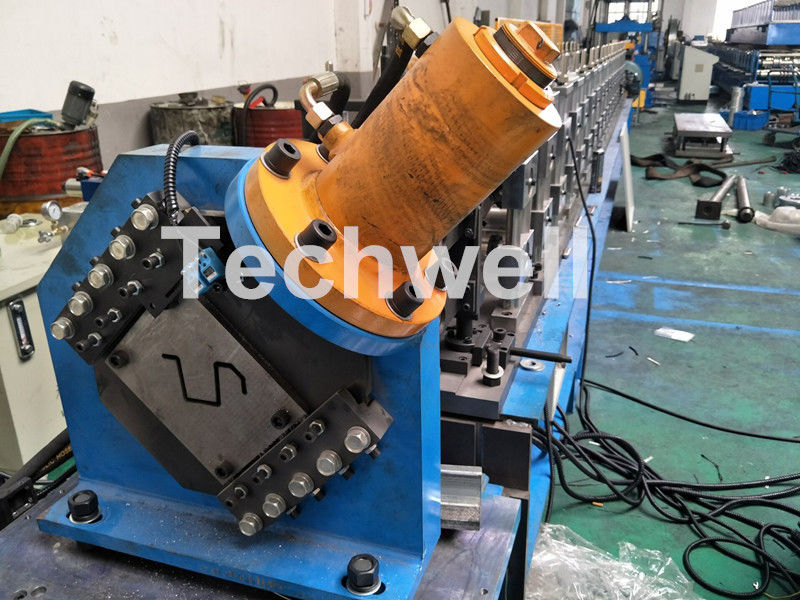

Hydraulic 1500mm 20m/Min 15T Coil Roll Forming Machine 2
