Strawberry Growing Cassette Type Mobile Portable Gutter Making Machines

Strawberry Growing Cassette Type Mobile Portable Gutter Making Machines

Cassette portable gutter making machines

Galvanized portable gutter making machines

Cassette mobile gutter machines

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-GM400

Contact Us

Request A Quote
Product Details
Forming Material Thickness:
0.6mm
Material Type:
Painted Galvanized
Material Width:
400mm
Material Length:
Cut To The Set Length
Forming Stations:
8 Stations
Machine Type:
Mobile Cassette Type
Application:
For Strawberry Growing Gutter
Product Description

Mobile Greenhouse Strawberry Growing Gutter Machine, Movable Cassette Type



1). WUXI TECHWELL is the first to research, develop, produce the greenhouse gutter machines in China and we also do projects of greenhouse to support the whole hanging, standing growing gutter system, We have got highly approved in the greenhouse market no matter the machine or finished growing gutter system. So our gutter machines have characteristic of strong stability and most reasonable matching of the Caterpillar Chassis, hydraulic system & PLC control board to realize the pressure adjustable of each action of forward, backward, rotate no matter when loading with or without coil on the machine when walking on the different roads, through different projects practice and developing.

2). The way to roll forming of the profiles, Caterpillar Chassis, PLC control system and Hydraulic system are special developing for the mobile greenhouse gutter machines through constant project practice and exploration, we can see our machines are most stability, and strong, and the finished profiles are high quality.



3). And our greenhouse gutter machine is cassette type, it can interchange for making both growing gutter profiels for strawberry and tomato...



Strawberry Growing Cassette Type Mobile Portable Gutter Making Machines 0



4). As we all know Hydroponics is the soil-less method of growing crops, vergetables and fruits, and is an important technology, especially in Middle East countries, Afria where water is scarrce and food production can be hindered. And also it is widely used in China with large population. Hydroponic farming has proved and elegant solution, with crops growing more efficiently than in typical agricultural conditions.



Strawberry Growing Cassette Type Mobile Portable Gutter Making Machines 1



   Main Technical Specifications of Caterpillar Mounted Portable Gutter Machine



1). Gutter Pofile



Strawberry Growing Cassette Type Mobile Portable Gutter Making Machines 2



  Profile Name

  Gutter Profile
  Material Type   Painted Galvanized Steel
  Material Thickness   0.6mm
  Material Width   400mm
  Profile Length   Cut to required length
  • This gutter profile widely used gutter model for the production of strawberries,
  • And this profile is used in both standing support systems.





















Strawberry Growing Cassette Type Mobile Portable Gutter Making Machines 3



2).  The Characteristic Specification of Portable Gutter Machine





  • This mobile greenhouse gutter forming machine is movable caterpillar mounted type machine, which can do site-working at the desired length. And the machine base can rotate 360° and move forward and backword for special site-working requirement.



  • And the forming machine base structure is quick interchangeable Cassette tyoe structure for different profiles required. And if in future the user want to add new more profiles, just need to buy the cassette type forming part and cutting device.



  • Forming Station: 8 Station



  • Shaft Diameter: φ75mm



  • Main Power: 7.5KW



  • Hydraulic Power: 11KW



  • Caterpillar Chassis Working Type: Hydraulic drive move forward, backward and rotate 360°.



  • PLC: PANASONIC Brand



  • Inverter: YASKAWA Brand





    Layout Drawing of Portable Gutter Machine



Strawberry Growing Cassette Type Mobile Portable Gutter Making Machines 4

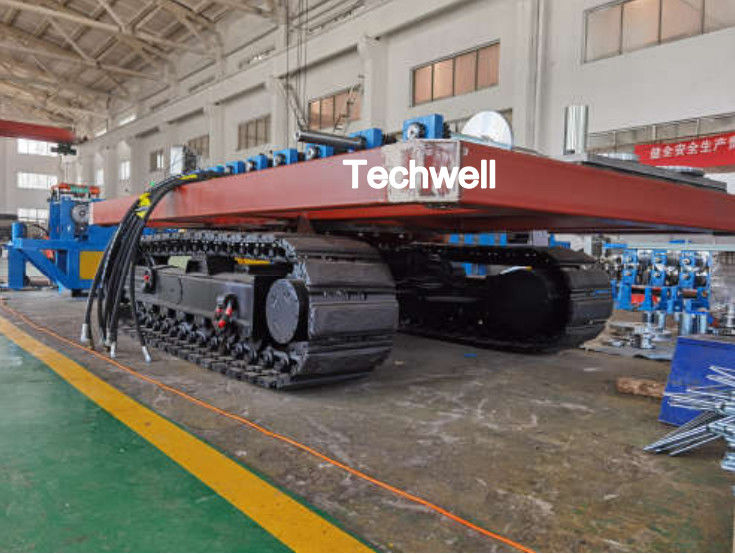

    The Caterpillar Chassis



Strawberry Growing Cassette Type Mobile Portable Gutter Making Machines 5



   Mobie Greenhouse Gutter Forming Machine Pictures



Strawberry Growing Cassette Type Mobile Portable Gutter Making Machines 6

Strawberry Growing Cassette Type Mobile Portable Gutter Making Machines 7

Strawberry Growing Cassette Type Mobile Portable Gutter Making Machines 8

Strawberry Growing Cassette Type Mobile Portable Gutter Making Machines 9
