1.6mm Beam Rack Roll Forming Machine With Spot Welding Gearbox Driving

Pallet Rack Step Beam Roll Forming Machine Line is for producing rack P step beams, and also called cross beams for storage warehouse pallet rack shelving system.

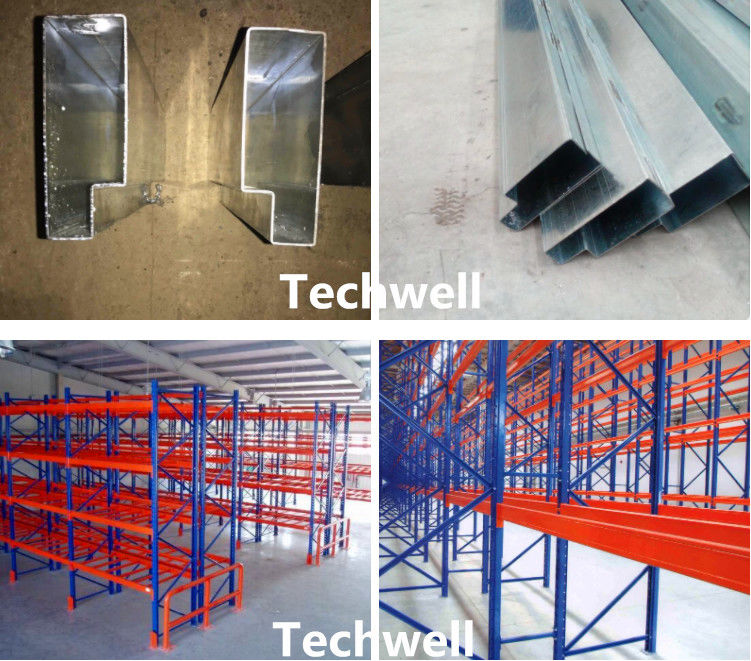

    Introduction of Rack Beam

The Step Beam or Cross beam support the pallet racks to assure the racks have adequate supports for the wieght of the products stored on them, ensuring the racks do not bow or create an unsafe condition. The racking beams manufactured by our rack beam roll forming machines are availabe in multiple length and also with different dimensions of beams suitable for almost any warehouse layout and products. The right beams allow you to store goods safely and securely while allowing complete accessibility for the material handling equipments.

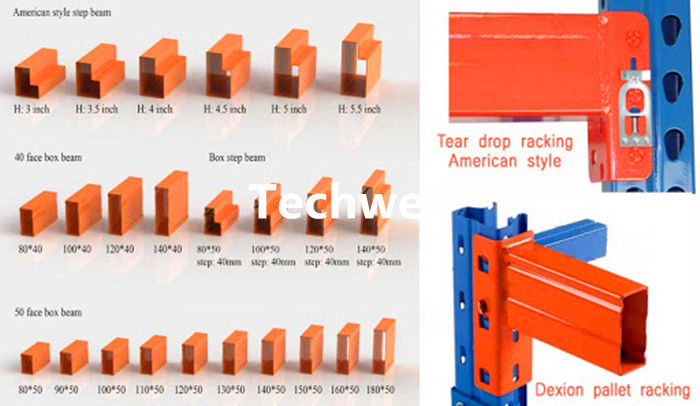

    Step Beam Profiles

   The Working Flow of Step Beam Forming Machine

Uncoiler --> Feeding & Leveling --> Roll Forming --> Servo Tracking Spot Welding --> Flying Saw Cutting --> Run-out Tables

   Main Specifications of Upright Rack Roll Forming Machine

• Material thickness: 1.2-1.6mm
• Material type: Carbon steel
• Roller stations: 23 stations
• Roller material: GCr15, HRC58-60
• Shaft material: 40Cr
• Forming speed: 0-15m/min
• Main motor power: 30Kww
• Fly saw cutting power: 18.5Kw
• PLC control panel: Panasonic

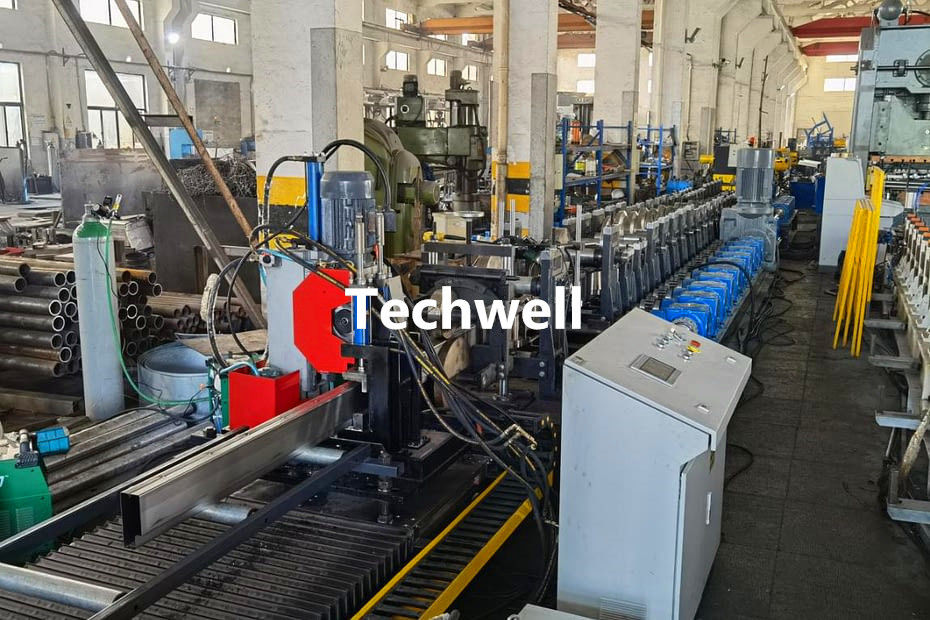

    Main Components of Upright Rack Production Line

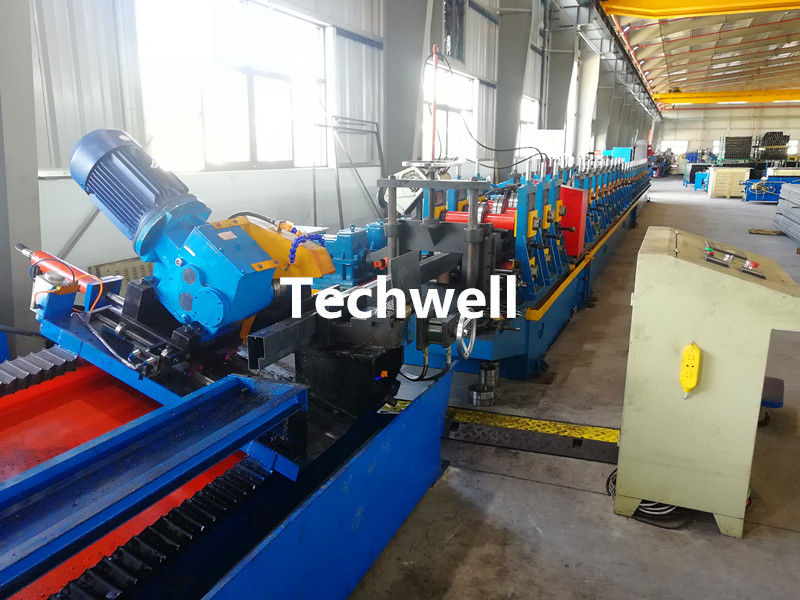

   More Upright Rack Forming Machine Pictures
