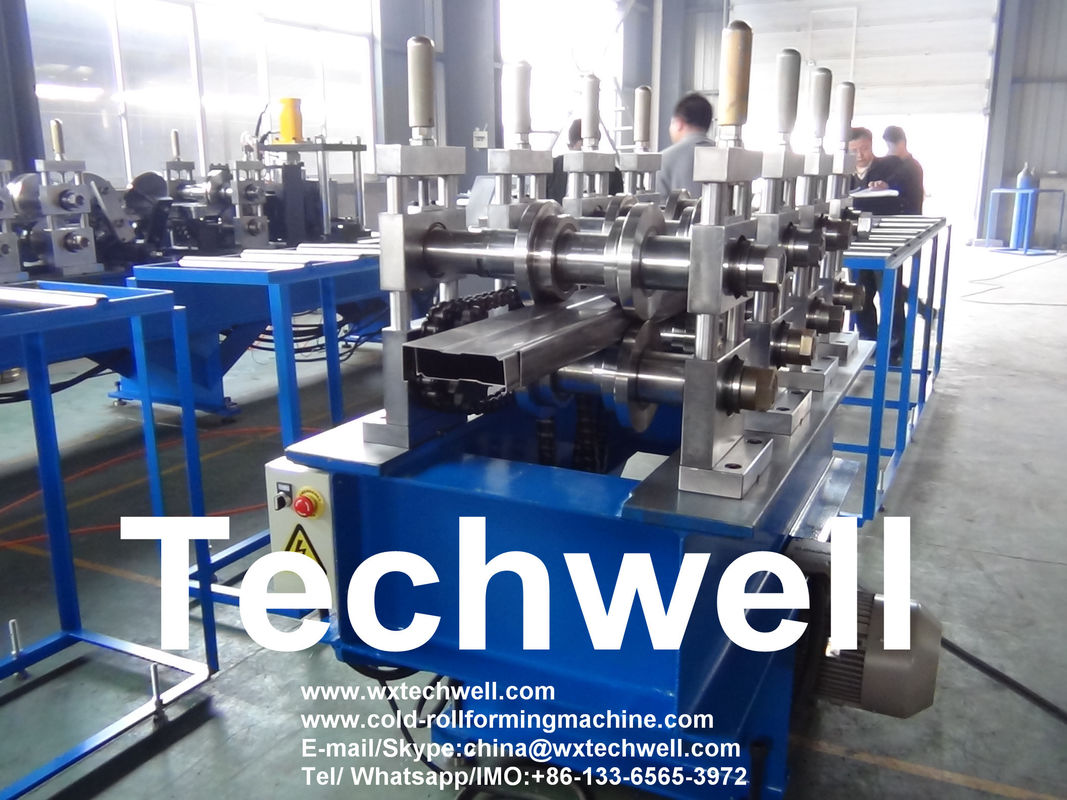

Galvanized 1.5mm Thick Cnc Rack Roll Forming Machine

Casting Structure Rack Beam Roll Forming Machine / Box Beam Roll Forming Machine With 1.8-2.3mm Thickness

   Summary of Box Beam Roll Former

Shelving Box Beam Roll Forming Machine is to form metal plates into required sections by continuous deformation of a group of rollers at room temperature, and is made two identical channel sections nested together to form a box beam.

   Reference Profile Drawing / Finished Sample Pieces

   Main Technical Specifications

1). Coil material thickness: 1.5-2.5mm

2). Material: carbon steel, GI

3). Weight capacity of decoiler: Max. 5 Ton

4). Coil width: Max. 1500mm

5). 2 rollers pinch feeding

6). 5 rollers leveling (Upper 2 roller, lower 3 rollers)

7). Machine frame stand: Welded structure steel

8). Forming motor: about 11KW

9). Shaft material: 45# high grade steel tempering treatment (HB220-260)

10). Roller material: GCr15 steel, quenched and heated process HRC58-62

11). Drive type: Chain transmission

12). Forming Speed: about 0-15m/min (excluding cutting time)

13). Forming stations: about 14 staitons

14). Cutting type: Hydraulic cutting

15). Hydraulic power: 4KW

16). Cutting tolerance: 10m+/-2.0mm

17). Box interlock stations: 4 stations

18). Power: 3KW

   Working Flow Chart

Decoiler → Feeding Guide → Leveling →  Main Roll Forming → Hydraulic Cutting → Support Table → Interlock

Machine

   Applications

Box beam, Rack box beam, Shelf box beam, Rack Shelf box beam, Shelf rack box beams

Box beam is the most widely used beam, as the structure is the most strong compare with other type of beam.

   More Machine Pictures
