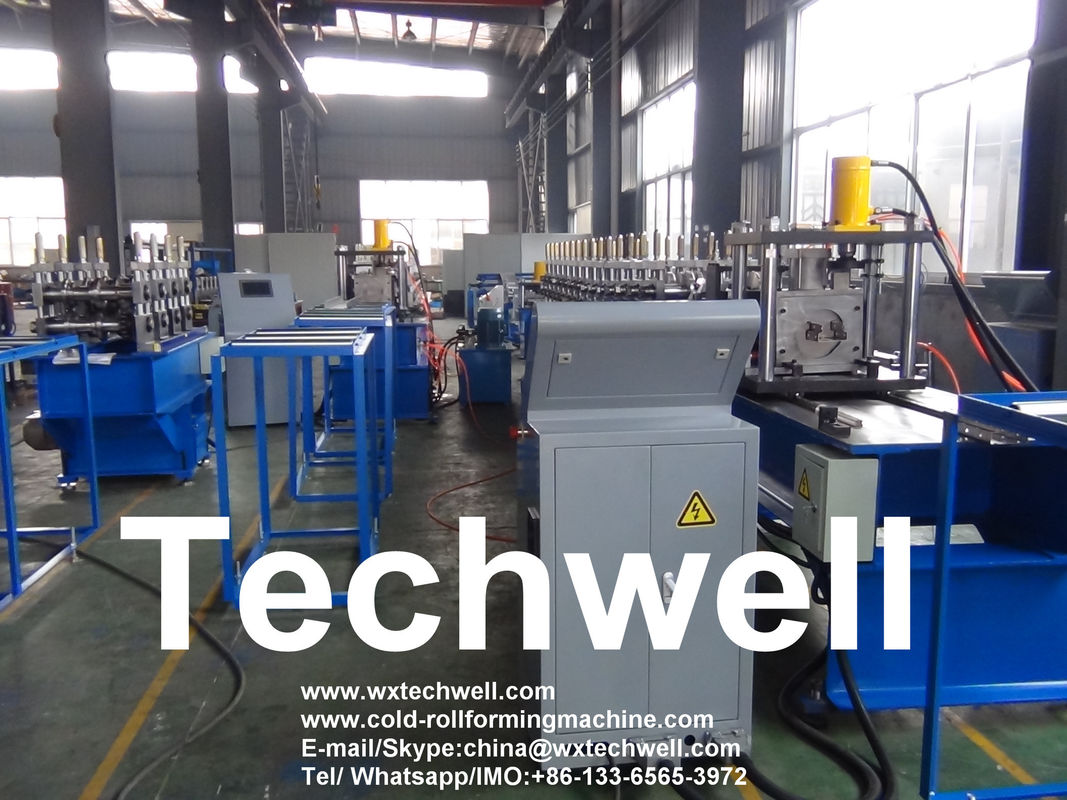

Hydraulic Punching 15m/Min Channel Panel Roll Forming Machine

Touch Screen PLC Control Rack Upright Roll Forming Machine For Hydraulic Station Power 5.5kw With Thickness 1.5-2.5mm

   Description of Rack Roll Forming Machine

Rack Upright Roll Forming Machine is a kind of Racking Roll Forming Machine, which can also be called as shelf roll forming machine.

The products of the Rack Upright can be widely used. We can always see its application in factories, warehouses, make shift houses, plants and so forth.

   Main Specifications of Rack Forming Machine

• Material Thickness: 1.5-2.5mm
• Forming Stations: 16 stations
• Main Power: 15Kw
• Forming Speed: 10-15m/min
• Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
• Shaft Diameter: 70mm
• Shaft Material: 45# Advanced Steel
• Punching: Hydraulic punching
• Drive Type: Chain Drive
• Cutting: Hydraulic cutting
• Cutting Length Tolerance: +/-1mm
• Cutting Die Material: Cr12Mov, Quench HRC58-62
• Hydraulic Station Power: 11Kw
• PLC: Panasonic,Japan
• Touch Screen: MCGS Brand
• Encoder: OMRON Brand
• Inverter: YASKAWA Brand

   Working Flow of Rack

Decoiler – Feeding - Leveling– Servo Feeding –Hydraulic Punching – Pinch Feeding --- Main Roll Forming – Straightness Device – Hydraulic Cutting -- Run out table

   Main Components

   Rack Upright Profile Drawing

   Application

Storage rack, storage shelf, Steel rack,steel shelf, rack beam

   Our Advantages

• High Quality
• Reasonable Price
• Good after Service
• Factory Visit
• Simple to operate when assemble
• 1 Year Warranty
• More Than 10 Years Experience

   Out Put Table Products
