TW-18-228.5-914 Roof and Wall Cladding Roll Forming Machine With Hydralic Cutting and PLC Control

China Wuxi Techwell Machinery Co., Ltd certification
China Wuxi Techwell Machinery Co., Ltd certification
Wuxi TECHWELL provide good quality roll forming machines, till now, the machines have been working 3 years, no any break, we are very satisfied.

—— Javier

WUXI TECHWELL SUPPLY HIGH QUALITY MACHINES WITH GOOD AFTER SERVICE AND REASONABLE PRICE, WHO ARE A RELIABLE MANUFACTURER IN CHINA.

—— ROOFTECH CO., LIMITED

I'm Online Chat Now

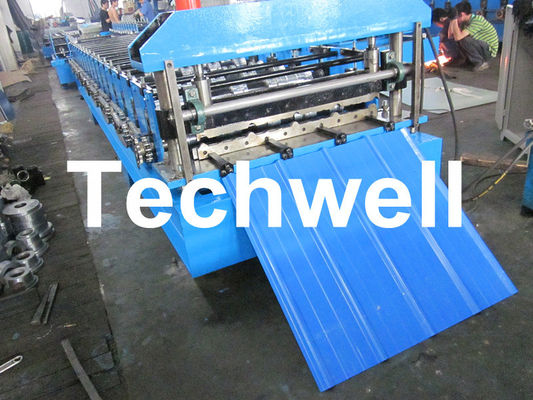

TW-18-228.5-914 Roof and Wall Cladding Roll Forming Machine With Hydralic Cutting and PLC Control

TW-18-228.5-914 Roof and Wall Cladding Roll Forming Machine With Hydralic Cutting and PLC Control
TW-18-228.5-914 Roof and Wall Cladding Roll Forming Machine With Hydralic Cutting and PLC Control TW-18-228.5-914 Roof and Wall Cladding Roll Forming Machine With Hydralic Cutting and PLC Control TW-18-228.5-914 Roof and Wall Cladding Roll Forming Machine With Hydralic Cutting and PLC Control TW-18-228.5-914 Roof and Wall Cladding Roll Forming Machine With Hydralic Cutting and PLC Control

Large Image :  TW-18-228.5-914 Roof and Wall Cladding Roll Forming Machine With Hydralic Cutting and PLC Control

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE, BV
Model Number: TW-18-228.5-914
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Detailed Product Description
Profile Type: Roof Wall Cladding Profile PLC: Japan Panasonic Brand
Inverter: Japn YASKAWA Brand Roller Material: High Grade 45# Steel
Shaft Diameter: 76mm Cutting: Hydrulic Cutting
High Light:

metal roof roll forming machine

,

Roof Sheet Roll Forming Machine



TW-18-228.5-914 Roof and Wall Cladding Roll Forming Machine With Hydralic Cutting and PLC Control



  Technical Summary of Roof Wall Cladding Roll Forming Machine



  • Model: TW-18-228.5-914 Roof Wall CladdingProfile
  • Material thickness: 0.3-0.8mm
  • Material width: depend on customer’s requirement
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Inverter: YASKAWA Brand
  • Touch Screen: MCGS Brand
  • Weight of Roof Wall Cladding Roll Forming Machine: about 5 Ton
  • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  • Weight Capacity Of Decoiler: 5 Ton
  • Main Motor Power: 5.5 Kw
  • Hydraulic Motor Power: 3 Kw
  • Forming Station: 16 ( depend on profile drawing )
  • Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
  • Main Axis Material: High grade 45#, quenched and heat treatment.
  • Axis Diameter: ¢ 76mm
  • Working Speed: 0-15 m/min
  • Transporting Type: Chain Transmission
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Type of Cutting: Hydraulic cutting
  • Material Of Cutting Blade: C r 12
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Machine Frame stand: Welded structural steel
  • Thickmess of Fame Steel: 18mm



   Components of Roof Wall Cladding Roll Forming Machine





 Decoiler / Uncoiler  1 Unit
 Feeding Guide  1 Unit
 Roof Wall Panel Roll Forming Machine  1 Unit
 Hydraulic Cutting Part                              1 Unit
 Hydraulic Station  1 Unit
 PLC Computer Control Box  1 Unit
 Support Tables  2 Units



   Technical Data of Roof Wall Cladding Panel Roll Forming Machine



Item  Roof Wall Cladding Roll Forming Machine
 Coil Material  Thickness  0.3-0.8mm
 Coil width  Custom-made, 1000mm or 1200mm or 1250mm
 Yield Strength             250-350 Mpa
 Material  PPGI, Color Steel, GI.
 Decoiler / Uncoiler  Decoiler Type  Manual or Hydraulic or Auto Type
 Coil Width  Max. 1250mm
 I.D  508-610mm
 O.D  Max. 1500mm
 Roof Wall Cladding Roll Forming  Machine    Forming Stations  16-18 Stations ( Depend on Profiles )
 Roller material   45# steel, surface coated with 0.05mm hard  chrome
 Diameter of shaft   76mm
 Shaft material  High grade 45# steel
 Drive type  Chain transmission
 Forming speed  0-15m/min
 Main power  5.5KW
 Cutting To Length Device  Cutting type  Hydraulic cutting
 Cutting Die Material  Cr12Mov steel, HRC58-62
 Cutting power  3KW
 CuttingTolerance  10m+/-1.5mm
 Encoder  OMRON Brand
 PLC Electrical Control Box  PLC                                    PANASONIC Brand
 Inverter  YASKAWA Brand
 Touch screen  PANASONICE
 Operation type  Touch screen & Button
 Hydraulic Station  Hydraulic station  Famous Chinese brand
 Runout Tables  Table type  Simple nonpower type
 Function  To support the finished panels



   Roof Wall Cladding Profile Drawings
