0.2mm Roofing Corrugated Sheet Roll Forming Machine with 0 - 15m/min Speed

0.2mm Roofing Corrugated Sheet Roll Forming Machine with 0 - 15m/min Speed

Roof Sheet Roll Forming Machine

roof panel roll forming machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-RWM

Contact Us

Request A Quote
Product Details
Material Thickness:
0.2-0.8mm
Main Motor Power:
5.5 Kw
Hydraulic Motor Power:
3 Kw
Axis Diameter:
¢ 76mm
Working Speed:
0-15 M/min
Transporting Type:
Chain Transmission
Product Description



0.2mm Roofing Corrugated Sheet Roll Forming Machine with 0 - 15m/min Speed





   Specifications of Corrugated Roofing Sheet Roll Forming Machine



 Item  Roofing Corrugated Sheet Roll Forming Machine
 Coil Material             Thickness  0.3-0.8mm
 Coil width  Custom-made, 1000mm or 1200mm or 1250mm
 Yield Strength             250-350 Mpa
 Material  PPGI, Color Steel, GI.
 Decoiler / Uncoiler  Decoiler Type  Manual or Hydraulic or Auto Type
 Coil Width  Max. 1250mm
 I.D  508-610mm
 O.D  Max. 1500mm
 Corrugated Sheet Roll Forming Machine  Forming Stations  16 Stations ( Depend on Profiles )
 Roller material   45# steel, surface coated with 0.05mm hard  chrome
 Diameter of shaft   76mm
 Shaft material  High grade 45# steel
 Drive type  Chain transmission
 Forming speed  0-15m/min
 Main power  5.5KW
 Cutting  Cutting type  Hydraulic cutting
 Cutting Die Material  Cr12Mov steel, HRC58-62
 Cutting power  3KW
 CuttingTolerance  10m+/-1.5mm
 Encoder  OMRON Brand
 Electrical control  PLC                                    PANASONIC Brand
 Inverter  YASKAWA Brand
 Touch screen  PANASONICE
 Operation type  Touch screen & Button
 Hydraulic Station  Hydraulic station  Famous Chinese brand
 Runout Table  Table type  Simple nonpower type
 Function  To support the finished panels





   Components of Corrugated Roof Roll Forming Machine





 Decoiler / Uncoiler  1 Unit
 Feeding Guide  1 Unit
 Main Corrugated Sheet Roll Forming Machine  1 Unit
 Hydraulic Cutting Device                               1 Unit
 Hydraulic Station  1 Unit
 PLC Computer Control Board  1 Unit
 Runout Table  2 Units





   Reference Corrugated Drawings



0.2mm Roofing Corrugated Sheet Roll Forming Machine with 0 - 15m/min Speed 0



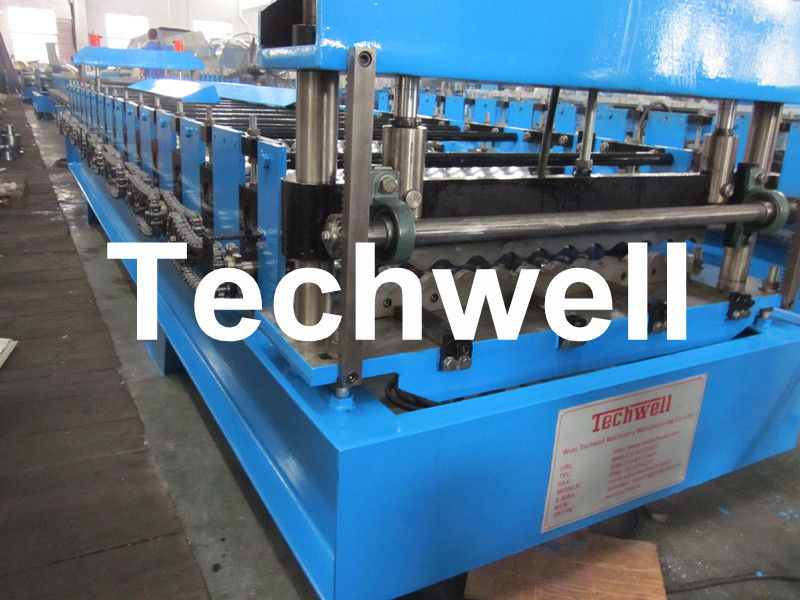

   Pictures of Corrugated Roofing Sheet Roll Forming Machine
