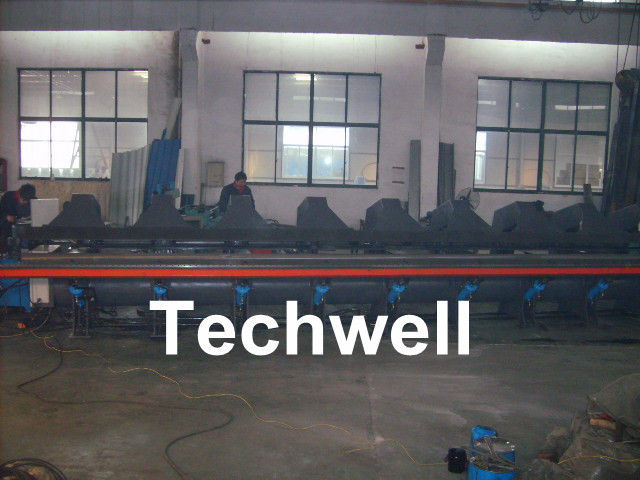

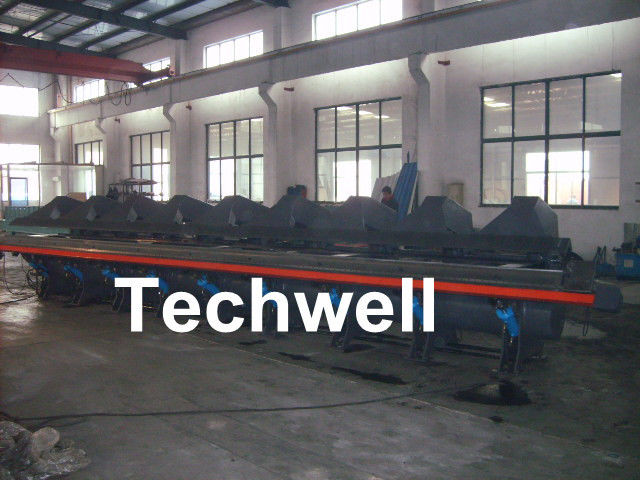

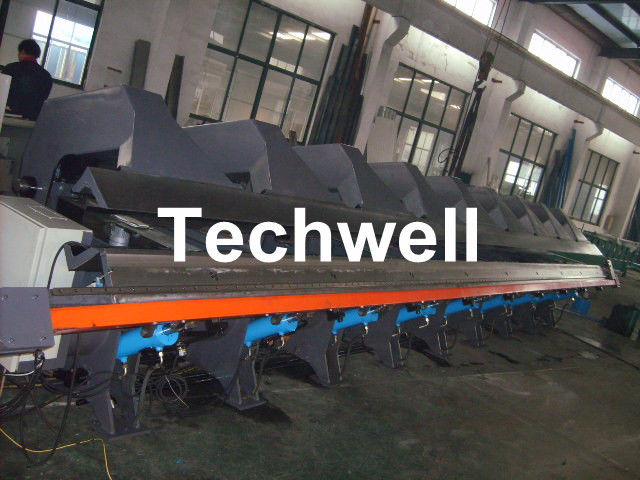

4000mm CNC Hydraulic Folding Machine With Slitting and Bending Function

4000mm CNC Hydraulic Folding Machine With Slitting and Bending Function
4000mm CNC Hydraulic Folding Machine With Slitting and Bending Function 4000mm CNC Hydraulic Folding Machine With Slitting and Bending Function 4000mm CNC Hydraulic Folding Machine With Slitting and Bending Function

Large Image :  4000mm CNC Hydraulic Folding Machine With Slitting and Bending Function

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE, BV
Model Number: TW-CNCFDM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 60-70 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 10 sets
Contact Now
Detailed Product Description
Max Folding Thickness: 0.3-1.5mm Galvanized Steel Sheet Max Folding Length: 4000mm
Max Folding Angle: 125 Degree Weight Of Machine: About 11Ton
Max Shearing Thickness: 0.3-1.5mm Galvanized Steel Sheet Shearing Speed: About 800mm/sec
High Light:

Roll Former Machine

,

Sheet Metal Roll Forming Machines

4000mm CNC Hydraulic Folding Machine With Slitting and Bending Function





  Summary



This CNC Hydraulic Folding Machine adopts CNC controller which can help to fix, clamp, fold and slit the sheet, it is a high-tech product which integrated with electromechanical and hydraulic.

The machine mainly consists of machine body, clamp unit, folding system, CNC control backstop, width shearing system, work piece supporting system, hydraulic system and PLC Control system, etc.





  Main Specifications

  • Max. folding thickness: 0.3-1.5mm Galvanized steel sheet or color steel sheet; 2.0mm Max. for Aluminium
  • Max. folding length: 4000mm
  • Max. folding angle: 125 degree
  • Weight of machine: about 11Ton
  • Width slitting function
  • Max. shearing thickness: 0.3-1.5mm Galvanized steel sheet or color steel sheet; 2.0mm Max. for Aluminium
  • Shearing speed: about 800mm/sec.
  • Shearing Mode: Rotary slitter
  • Control System: PC with 12” LCD
  • Electric Condition: 380/3Phase/50Hz ( or depend on customer’s requirement )
  • Outline dimension of main machine: 4595x1842x1375mm (LXWXH)





  Main Components

  • Machine Base
  • Clamp Unit
  • Folding Equipment
  • CNC Control
  • Width Shearing System
  • Work Piece supporting device
  • Hydraulic System
  • PLC Control System



  Our Advantages

  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

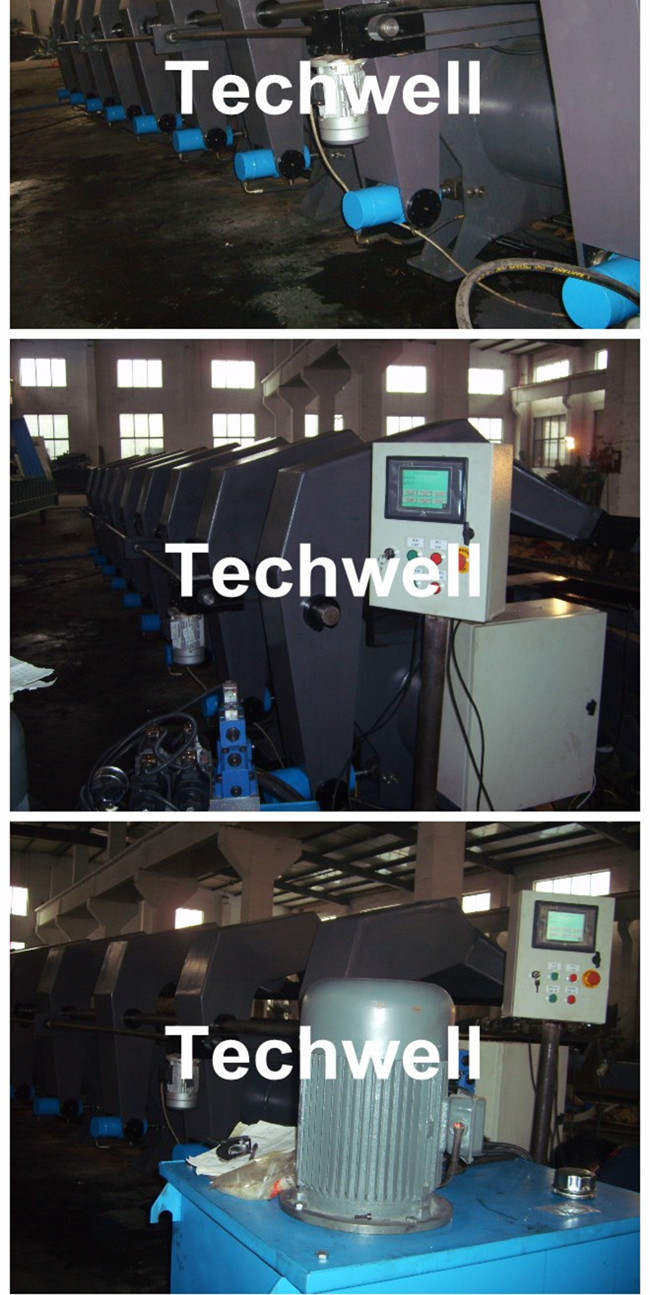

   More Machine Pictures



4000mm CNC Hydraulic Folding Machine With Slitting and Bending Function 0
