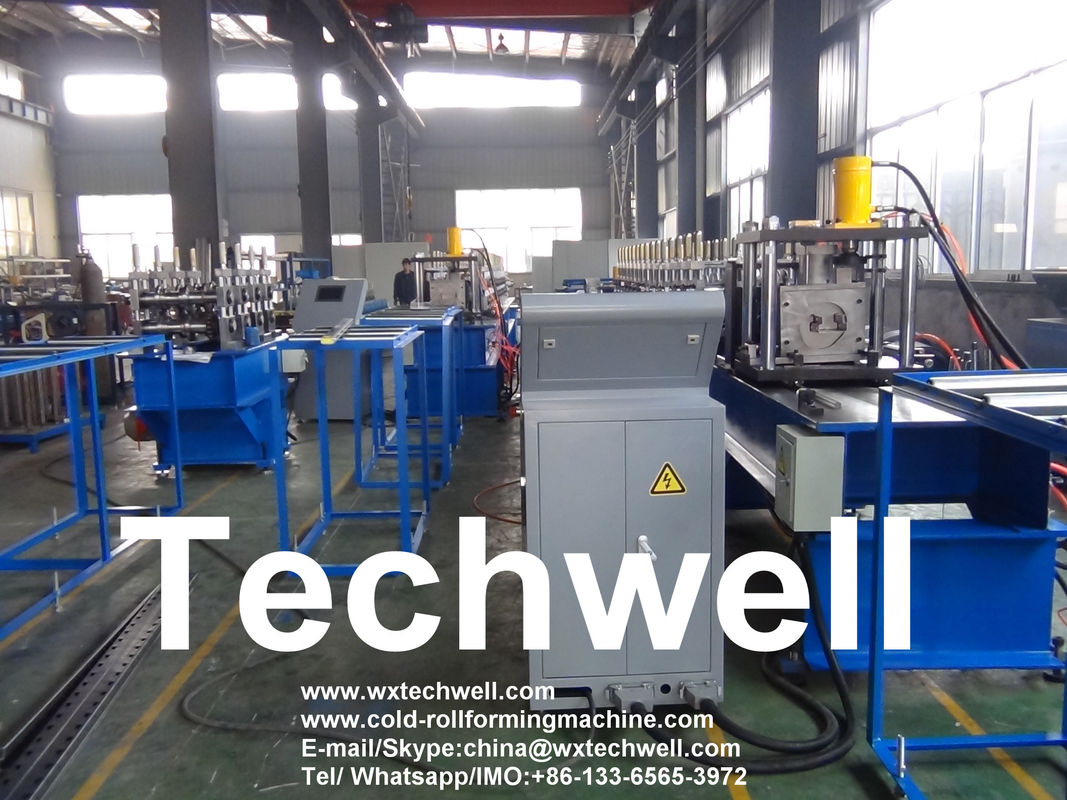

Steel Sheet Upright Rack Roll Forming Machine for Storage Shelf Profile

   A). Basic Introduction

The equipment is consisted with auto decoiler, guide frame, lever/feeding section, continuous bottom hole punching section, forming section, positioning and cutting section, collection table and electrical control system etc.

The C Z Purlin Roll Forming Machine can produce C and Z profiles. Produce the C and Z purlin by exchange one side of the roller up and down..Greatly improved the production efficiency and save the working space.C purlin roll forming machine adopt cast iron structure. The driving way is chain driving. The size will be adjusted by the spacers between the rollers. The cutting is after forming, so the cutting position will be very smooth.

   B). Main Specifications

   C). Main Components

Decoiler --------------------------------------------- 1 Unit

Feeding & Leveling -------------------------------- 1 Unit

Hydraulic punching device ------------------------ 1 Unit

Main roll forming machine ------------------------ 1 Unit

Hydraulic cutting device --------------------------- 1 Unit

Hydraulic Station ----------------------------------- 1 Unit

PLC computer control ------------------------------ 1 Unit

Output table ---------------------------------------- 1 Unit

   D). Working Flow

Decoiler --- Fedding & Leveling --- Punching --- Roll Forming --- Cut-to-length --- Run out table

   E).  Applications

With the production advantage of the shelving & storage racks Roll Forming Machine, an extensive catalogue of shelving, heavy duty shelving, warehouse shelving and racking for the home and office are developed rapidly.

Used as Storage rack, storage shelf, Steel rack,steel shelf, rack beam.

   F). Competitive Advantages

High Quality

Reasonable Price

Good after Service

Factory Visit

1 Year Warranty

More Than 10 Years Experience

   G). More Pictures

  H). Reference Products Pictures
