Tile Roofing Sheet Cold Roll Forming Machine Double Layer Iron 6.3Mpa

Tile Roofing Sheet Cold Roll Forming Machine Double Layer Iron 6.3Mpa

Cold Roll Forming Machine Hydraulic Decoiler

6.3 Mpa Cold Roll Forming Machine

10T Cold Roll Forming Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

TW-DECOILER

Contact Us

Request A Quote
Product Details
Decoiler Type:
Hydraulic Decoiler / Uncoiler
Weight Capacity:
5/10T
Uncoiling Speed:
0-15m/min
Coil Width:
Max. 1500mm
Feeding Type:
Active Uncoiling, Hydraulic To Expand
Pressure Of Hydraulic System:
6.3Mpa
Product Description

Double Layer Tile Roofing Sheet Making Machine Iron Sheet Cold Roll Forming Machine



   Introduction of Decoiler



  • Hydraulic uncoiler is the specific machine for uncoil. There are three or four rake fanning strip, connected by dovetail groove, installed on the mandrel.



  • In the end of the the fanning strip installed a radial slide incase it moves to the shaft. But it can open and shrink along the radial direction. The tail of the drum shaft connects to the rotatable cylinder. The cylinder piston rod drives the forward tetragonal shaft move along the shaft by the draw bar in the middle on it. The fanning strip would be lead to open or shrink and add the diameter of the coiling block.



  • This machine can make stretch coil-deliver coil automatically, the speed of which is same with the forming machine. It is a matching machine for colored steel equipment. In order to save human recourse and lower labor cost, it is better to work with colored steel mould machine and stacker, with which it formed a completely porducing line.



   Main Specifications



Decoiler type Hydraulic decoiler
Feeding type Active uncoiling, hydraulic to expand
Weight capacity 5/7/10 Ton
Coil width Max. 1500mm
I.D 508-610mm
O.D 1300mm
Material of main shaft 40Cr
Outline dimentision ablut 3110x1650x1780mm
Hydraulic motor power 2.5Kw
Uncoiling speed 0-15m/min
Capacity of hydraulic station 40L
Hydraulic system pressure 6.3Mpa
Pressure of hydraulic system 6.3Mpa



Tile Roofing Sheet Cold Roll Forming Machine Double Layer Iron 6.3Mpa 0





   Competitive Advantages



1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements

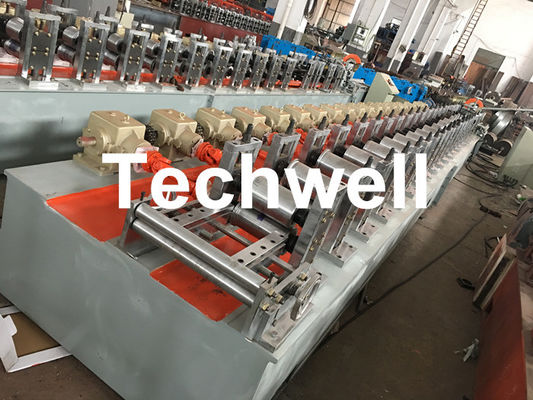

   Workshop Machine Pictures



Tile Roofing Sheet Cold Roll Forming Machine Double Layer Iron 6.3Mpa 1
