Automatical Steel Roof Wall Panel Roll Forming Machine With 13 - 20 Forming Station





   Technical Specifications of Top Roof Wall Panel Roll Forming Machine





Coil Material

Thickness 0.3-0.8mm
Coil width 1000mm / 1200mm/ 1220mm / 1250mm or custom-made
Yield Strength 250-350Mpa
Material PPGI, Color Steel,
Decoiler / Uncoiler Coil Width 1250mm
I.D 508-610mm
O.D Max. 1500mm
Roll Forming Machine Forming Stations 13-22 Stations ( Depend on Profiles )
Roller material   45# steel, surface coated with 0.05mm hard chrome
Diameter of shaft 76mm
Shaft material High grade 45# steel
Drive type Chain transmission
Forming speed      0-15m/min
Main power 5.5KW
Cutting Cutting type Hydraulic cutting
Cutting power 3KW
Cutting Tolerance     10m+/-1.5mm
Encoder OMRON Brand
Electrical control PLC PANASONIC Brand or Custom-made
Inverter YASKAWA Brand or Custom-made
Touch screen MCGS Brand or Custom-made
Operation type Touch screen & Button
Hydraulic Station Hydraulic station Famous Chinese brand
Runout Table Table type Simple nonpower type
Function To support the finished panels



   Main Components of Roof Wall Panel Roll Forming Machine



Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Main Roll Forming Machine 1 Unit
Hydraulic Cutting Device 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Board 1 Unit
Runout Table 2 Units





   Roof Wall Panel Profile Drawings For Reference





Automatical Steel Roof Wall Panel Roll Forming Machine With 13 - 20 Forming Station 0

Automatical Steel Roof Wall Panel Roll Forming Machine With 13 - 20 Forming Station 1

Automatical Steel Roof Wall Panel Roll Forming Machine With 13 - 20 Forming Station 2





   Application



Trapezoidal roof panel, trapezoidal sheet, trapezoidal roof metal, trapezoidal roofing, metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding



   TECHWELL Advantage



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

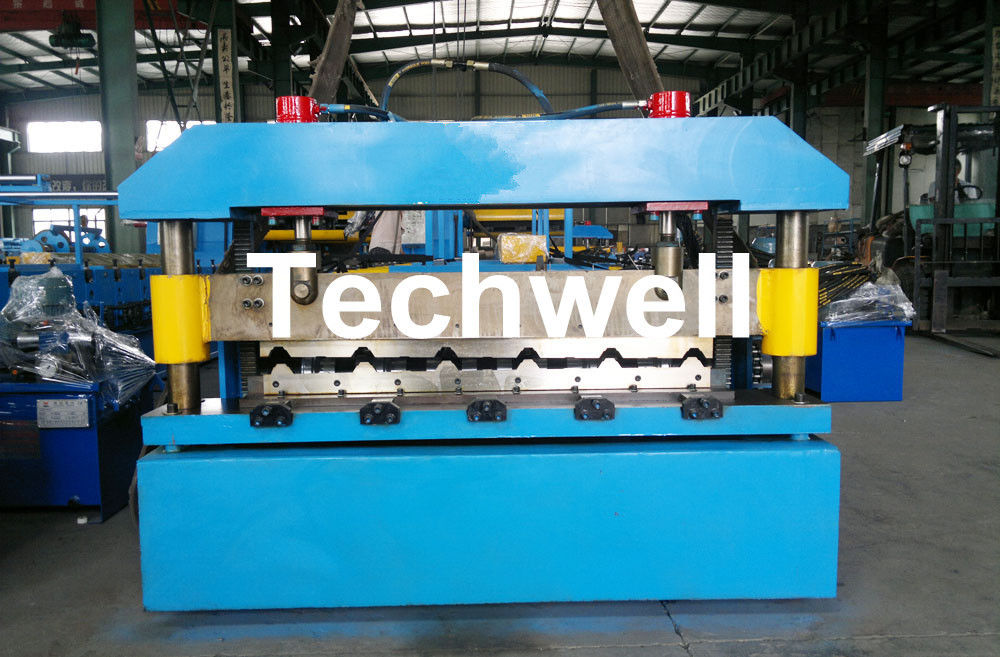

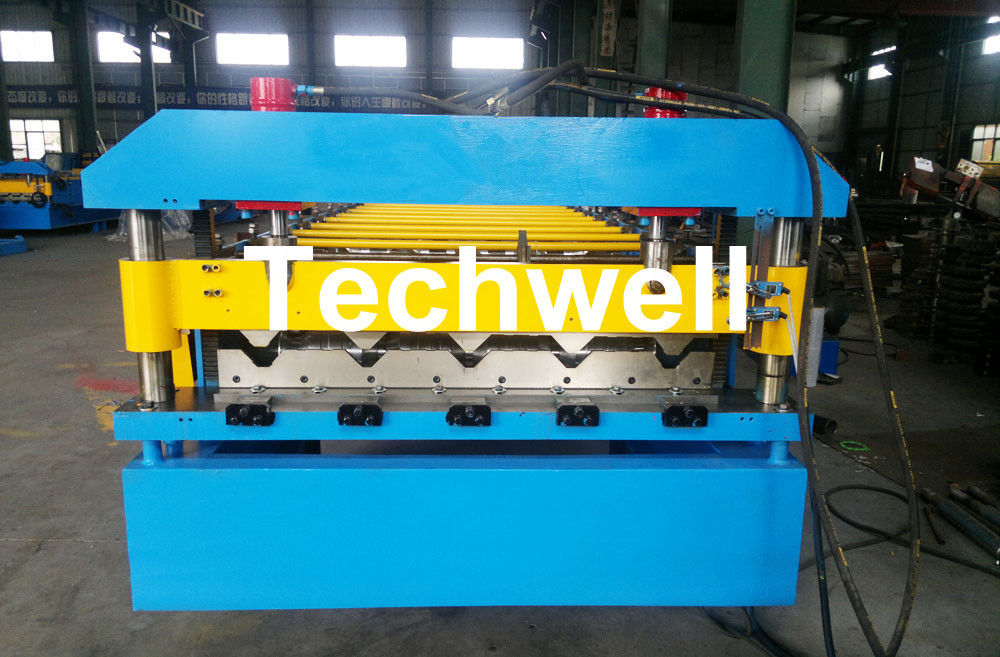

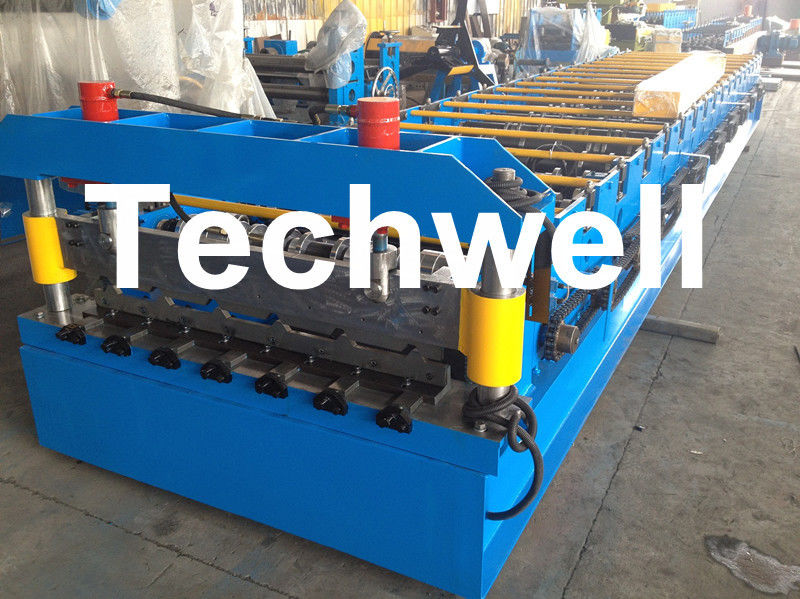

   Pictures of Roof Wall Panel Roll Forming Machines
