Corrugated Roof Wall Cladding Panel Roll Forming Machine With 0.3 - 0.8mm Thickness
Working Flow of Roof Panel Roll Forming Machine
Decoiler ---> Fedding Guide ---> Roof Panel Roll Forming ---> Cut-to-length ---> Run out table
Main Technical Data of Roof Panel Roll Forming Machine
| Item | Roof Panel Roll Forming Machine | |
| Coil Material | Thickness | 0.3-0.8mm |
| Coil width | Custom-made, 1000mm or 1200mm or 1250mm | |
| Yield Strength | 250-350 Mpa | |
| Material | PPGI, Color Steel, GI. | |
| Decoiler / Uncoiler | Decoiler Type | Manual or Hydraulic or Auto Type |
| Coil Width | Max. 1250mm | |
| I.D | 508-610mm | |
| O.D | Max. 1500mm | |
| Roof Panel Roll Forming Machine | Forming Stations | 13-18 Stations ( Depend on Profiles ) |
| Roller material | 45# steel, surface coated with 0.05mm hard chrome | |
| Diameter of shaft | 76mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chain transmission | |
| Forming speed | 0-15m/min | |
| Main power | 5.5KW | |
| Cutting | Cutting type | Hydraulic cutting |
| Cutting Die Material | Cr12Mov steel, HRC58-62 | |
| Cutting power | 3KW | |
| CuttingTolerance | 10m+/-1.5mm | |
| Encoder | OMRON Brand | |
| Electrical control | PLC | PANASONIC Brand |
| Inverter | YASKAWA Brand | |
| Touch screen | PANASONICE | |
| Operation type | Touch screen & Button | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Runout Table | Table type | Simple nonpower type |
| Function | To support the finished panels | |
Main Components of Roof Panel Roll Forming Machine
| Decoiler / Uncoiler | 1 Unit |
| Feeding Guide | 1 Unit |
| Roof Panel Roll Forming Machine | 1 Unit |
| Hydraulic Cutting Device | 1 Unit |
| Hydraulic Station | 1 Unit |
| PLC Computer Control Board | 1 Unit |
| Runout Table | 2 Units |
Reference Roof Panel Drawings
Our Advantage

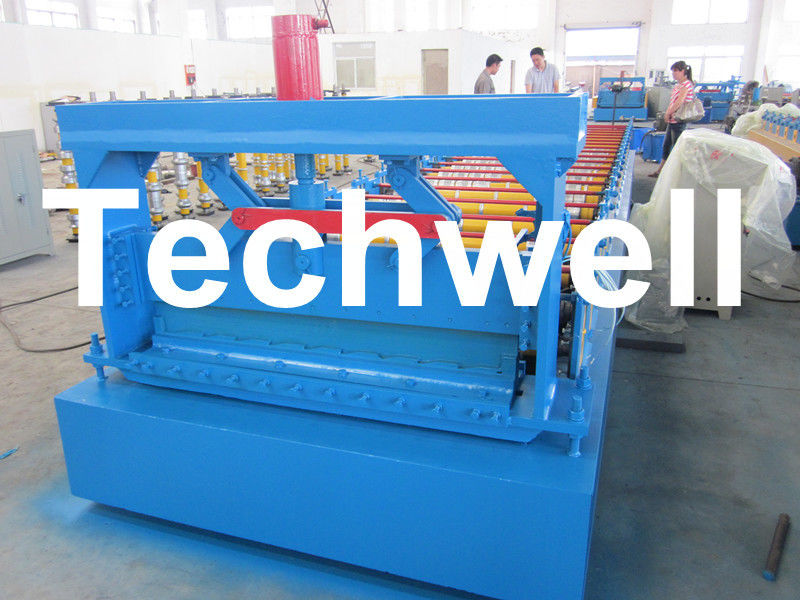

Roof Wall Panel Roll Forming Machine Pictures
