C Purlin Forming Machine / Cold Roll Forming Machine with Gearbox Drive for Steel C Purlin

C Purlin Forming Machine / Cold Roll Forming Machine with Gearbox Drive for Steel C Purlin
C Purlin Forming Machine / Cold Roll Forming Machine with Gearbox Drive for Steel C Purlin C Purlin Forming Machine / Cold Roll Forming Machine with Gearbox Drive for Steel C Purlin C Purlin Forming Machine / Cold Roll Forming Machine with Gearbox Drive for Steel C Purlin C Purlin Forming Machine / Cold Roll Forming Machine with Gearbox Drive for Steel C Purlin

Large Image :  C Purlin Forming Machine / Cold Roll Forming Machine with Gearbox Drive for Steel C Purlin

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-C300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Detailed Product Description
Form Profile: C Purlin Profile Purlin Size: 80-300mm
Size Change: Auto Plc Control Forming Station: 14
Main Power: 18.5KW Cutting Power: 5.5KW
High Light:

Sheet Metal Roll Forming Machines

,

Roll Forming Equipment


C Purlin Forming Machine / Cold Roll Forming Machine with Gearbox Drive for Steel C Purlin



   Main Specifications of C Purlin Roll Forming Machine





Coil Material

Thickness 1.5-3.0mm
Coil width Custom-made
Yield Strength 250-350Mpa
Material GI. Carbon Steel
Decoiler / Uncoiler Coil Width Max. 600mm
I.D 508-610mm
O.D Max. 1500mm
Pinch Feeding & Leveling Feeding roller 4 Rollers
Leveling roller 7 Rollers ( upper 3 rollers, bottom 4 rollers )
Roll Forming  Machine Forming stations 14 Stations ( Depend on Profiles )
Roller material   GCr15 steel, HRC58-62
Diameter of shaft                   80mm
Shaft material High grade 45# steel
Drive type Gimbal Gearbox Drive
Forming speed      0-15m/min
Main power 18.5KW
Punching Punching type Hydraulic Punching
  Punching die Cr12Mov, quenched, HRC58-62
Cutting Cutting type Hydraulic cutting
Cutting blade Cr12Mov, quenched
Cutting Tolerance     10m+/-1.5mm
Encoder OMRON Brand
Electrical control PLC PANASONIC Brand or Custom-made
Inverter YASKAWA Brand or Custom-made
Touch screen MCGS Brand or Custom-made
Operation type Touch screen & Button
Hydraulic Station Hydraulic station Famous Chinese brand
Hydraulic Power 7.5KW
Runout Table Table type Simple nonpower type
Function To support the finished panels





   Components of C Purlin Roll Forming Machine





Decoiler / Uncoiler 1 Unit
Pinch Feeding & Leveling 1 Unit
Main Roll Forming Machine 1 Unit
Hydraulic Punching 1 Unit
Cutting To Length 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Board 1 Unit
Runout Table 2 Units





   Flow Chart of Cee Purlin Roll Forming Machine




Decoiler ---> Fedding & Leveling ---> Roll Forming ---> Punching ---> Cut-to-length ---> Run out table



C Purlin Forming Machine / Cold Roll Forming Machine with Gearbox Drive for Steel C Purlin 0



   Reference Cee Purlin Profile Drawings





C Purlin Forming Machine / Cold Roll Forming Machine with Gearbox Drive for Steel C Purlin 1





   TECHWELL Advantage



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience



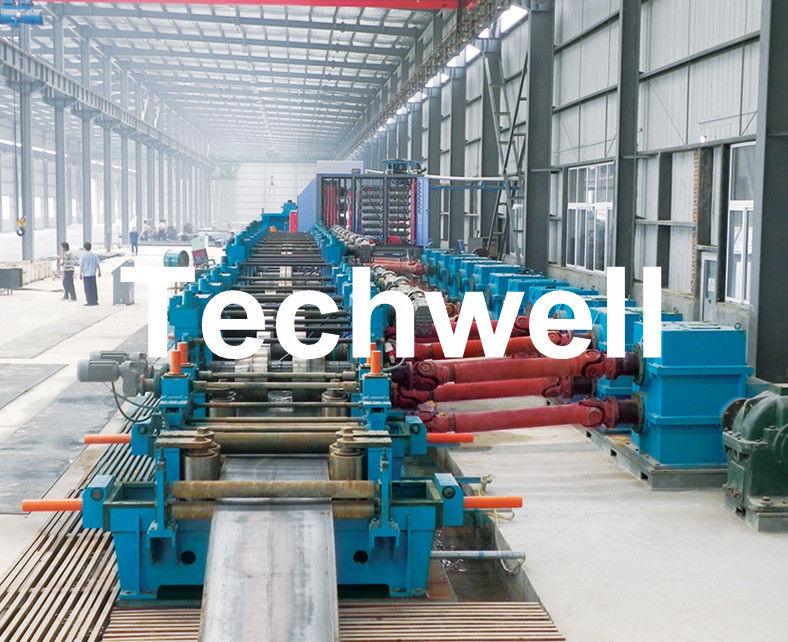

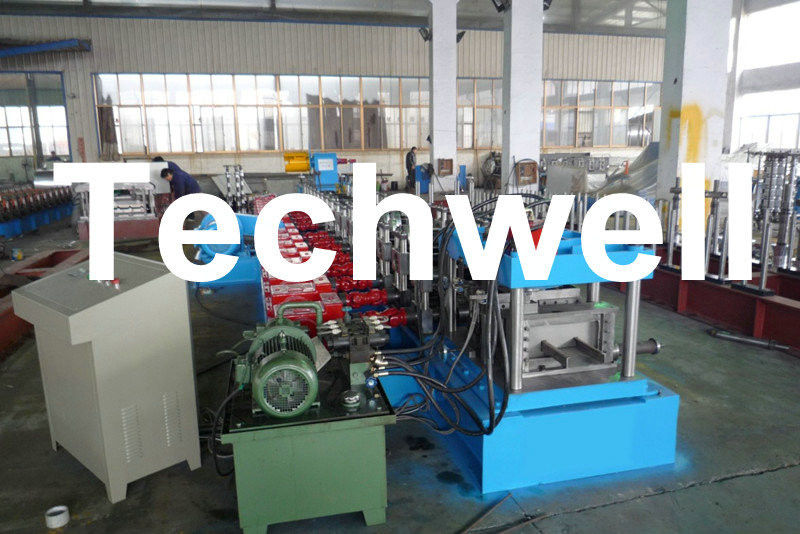

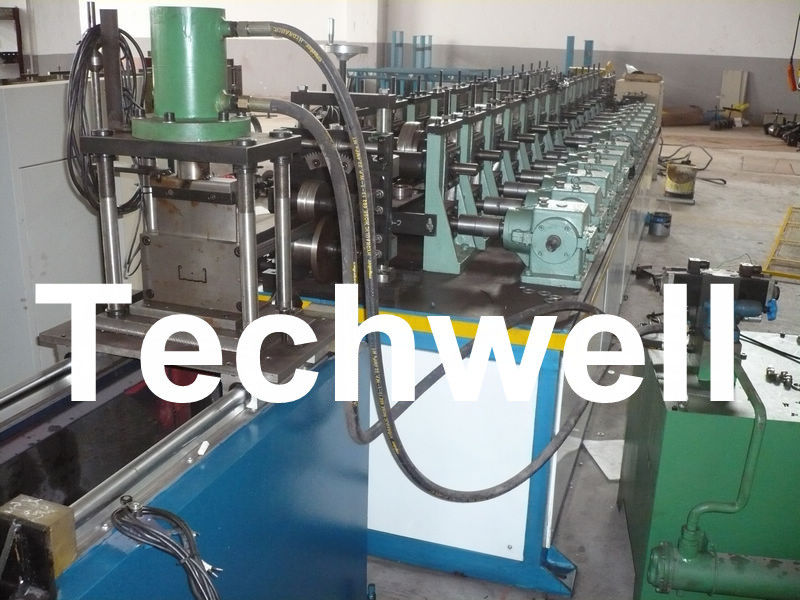

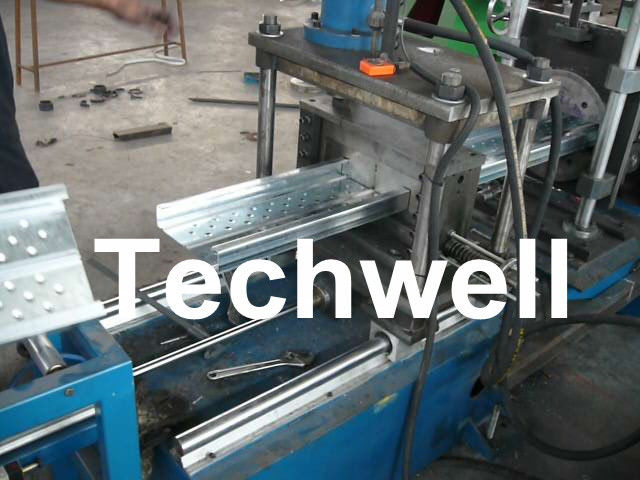

   Photos of C Purlin Roll Forming Machine





C Purlin Forming Machine / Cold Roll Forming Machine with Gearbox Drive for Steel C Purlin 2





C Purlin Forming Machine / Cold Roll Forming Machine with Gearbox Drive for Steel C Purlin 3
