U Shaped Channel Purlin Roll Forming Machine With 1.5 - 3.0mm Thickness TW-U100

China U Shaped Channel Purlin Roll Forming Machine With 1.5 - 3.0mm Thickness TW-U100 supplier
U Shaped Channel Purlin Roll Forming Machine With 1.5 - 3.0mm Thickness TW-U100 supplier U Shaped Channel Purlin Roll Forming Machine With 1.5 - 3.0mm Thickness TW-U100 supplier U Shaped Channel Purlin Roll Forming Machine With 1.5 - 3.0mm Thickness TW-U100 supplier U Shaped Channel Purlin Roll Forming Machine With 1.5 - 3.0mm Thickness TW-U100 supplier

Large Image :  U Shaped Channel Purlin Roll Forming Machine With 1.5 - 3.0mm Thickness TW-U100

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-U100

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Forming Shape: U Shape Profile Material Thickness: 1.5-3.0mm
Forming Station: 12 Roller Material: GCr15 Steel, HRC58-62
Shaft Diameter: 76mm Cutting: Hydraulic Cutting




U Shaped Channel Purlin Roll Forming Machine With 1.5 - 3.0mm Thickness TW-U100



   Main Specifications of U Channel Purlin Roll Forming Machine



Coil Material

Thickness 1.5-3.0mm
Coil width Custom-made
Yield Strength 250-350Mpa
Material GI. Carbon Steel
Decoiler / Uncoiler Coil Width Max. 600mm
I.D 508-610mm
O.D Max. 1500mm
Pinch Feeding & Leveling Feeding roller 4 Rollers
Leveling roller 7 Rollers ( upper 3 rollers, bottom 4 rollers )
Roll Forming  Machine Forming stations 12 Stations ( Depend on Profiles )
Roller material   GCr15 steel, HRC58-62
Diameter of shaft                   76mm
Shaft material High grade 45# steel
Drive type Chain Drive
Forming speed      0-15m/min
Main power 7.5KW
Cutting Cutting type Hydraulic cutting
Cutting blade Cr12Mov, quenched
Cutting Tolerance     10m+/-1.5mm
Encoder OMRON Brand
Electrical control PLC PANASONIC Brand or Custom-made
Inverter YASKAWA Brand or Custom-made
Touch screen MCGS Brand or Custom-made
Operation type Touch screen & Button
Hydraulic Station Hydraulic station Famous Chinese brand
Hydraulic Power 7.5KW
Runout Table Table type Simple nonpower type
Function To support the finished panels



   Working Flow of U Channel Roll Forming Machine


Decoiler ---> Fedding & Leveling ---> Roll Forming ---> Cut-to-length ---> Run out table



U Shaped Channel Purlin Roll Forming Machine With 1.5 - 3.0mm Thickness TW-U100





   Components of U Channel Machine





Decoiler / Uncoiler 1 Unit
Pinch Feeding & Leveling 1 Unit
Main Roll Forming Machine 1 Unit
Cutting To Length 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Board 1 Unit
Runout Table 2 Units



   U Channel Profile Drawings





U Shaped Channel Purlin Roll Forming Machine With 1.5 - 3.0mm Thickness TW-U100





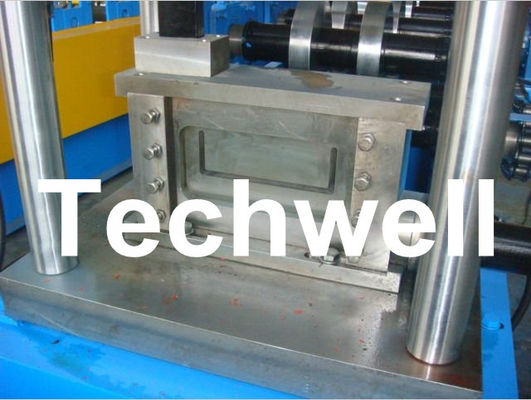

   U Channel Roll Forming Machine Photos



U Shaped Channel Purlin Roll Forming Machine With 1.5 - 3.0mm Thickness TW-U100







U Shaped Channel Purlin Roll Forming Machine With 1.5 - 3.0mm Thickness TW-U100



    Certificate





U Shaped Channel Purlin Roll Forming Machine With 1.5 - 3.0mm Thickness TW-U100



Contact Details
Wuxi Techwell Machinery Co., Ltd

Contact Person: monica

Send your inquiry directly to us (0 / 3000)
