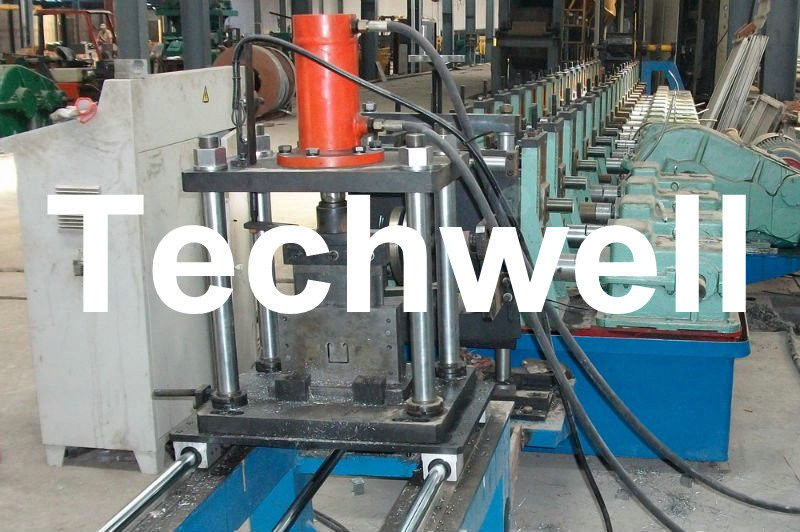

Gimbal Gearbox Drive U Channel Cold Roll Forming Machine for Steel U Channel, U Section, U Profile

China Gimbal Gearbox Drive U Channel Cold Roll Forming Machine for Steel U Channel, U Section, U Profile supplier
Gimbal Gearbox Drive U Channel Cold Roll Forming Machine for Steel U Channel, U Section, U Profile supplier Gimbal Gearbox Drive U Channel Cold Roll Forming Machine for Steel U Channel, U Section, U Profile supplier Gimbal Gearbox Drive U Channel Cold Roll Forming Machine for Steel U Channel, U Section, U Profile supplier Gimbal Gearbox Drive U Channel Cold Roll Forming Machine for Steel U Channel, U Section, U Profile supplier

Large Image :  Gimbal Gearbox Drive U Channel Cold Roll Forming Machine for Steel U Channel, U Section, U Profile

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-U100

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Material Thickness: 2.0-3.0mm Material Type: Carbon Steel, Aluzinc, G.I
Main Power: 18.5KW Roller Material: GCR15 With HRC58-60
Cutting Type: Hydraulic Post-Cutting Punching Type: Hydraulic Punching



Gimbal Gearbox Drive U Channel Cold Roll Forming Machine for Steel U Channel, U Section, U Profile


   Technical Specifications of U Channel Cold Roll Forming Machine





Coil Material

Thickness 1.5-3.0mm
Coil width Custom-made
Yield Strength 250-350Mpa
Material GI. Carbon Steel
Decoiler / Uncoiler Coil Width Max. 600mm
I.D 508-610mm
O.D Max. 1500mm
Pinch Feeding & Leveling Feeding roller 4 Rollers
Leveling roller 7 Rollers ( upper 3 rollers, bottom 4 rollers )
Roll Forming  Machine Forming stations 14 Stations ( Depend on Profiles )
Roller material   GCr15 steel, HRC58-62
Diameter of shaft                   80mm
Shaft material High grade 45# steel
Drive type Gimbal Gearbox Drive
Forming speed      0-15m/min
Main power 18.5KW
Cutting Cutting type Hydraulic cutting
Cutting blade Cr12Mov, quenched
Cutting Tolerance     10m+/-1.5mm
Encoder OMRON Brand
Electrical control PLC PANASONIC Brand or Custom-made
Inverter YASKAWA Brand or Custom-made
Touch screen MCGS Brand or Custom-made
Operation type Touch screen & Button
Hydraulic Station Hydraulic station Famous Chinese brand
Hydraulic Power 7.5KW
Runout Table Table type Simple nonpower type
Function To support the finished panels





   Flow Chart of U Channel Purlin Roll Forming Machine


Decoiler ---> Fedding & Leveling ---> Roll Forming ---> Cut-to-length ---> Run out table



   Components of U Channel Purlin Roll Forming Machine



Decoiler / Uncoiler 1 Unit
Pinch Feeding & Leveling 1 Unit
Main Roll Forming Machine 1 Unit
Cutting To Length 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Board 1 Unit
Runout Table 2 Units



   Reference U Channel Profile
