Electric Cutting 17 Stations 17.7KW Large Span Roof Panel Roll Forming Machine 45# Steel

Electric Cutting 17 Stations 17.7KW Large Span Roof Panel Roll Forming Machine 45# Steel

roofing sheet roll forming machine

K Span Forming Machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-K610

Contact Us

Request A Quote
Product Details
Product Name:
K-Span Roll Forming Machine
Usage:
Roof Building
Shaft Diaemter:
85mm
Drive:
1.5 Inch Single Chain
Stations:
16 Stations
Shaft Material:
45# Steel
Product Description

Electric Cutting 17 Stations 17.7KW Large Span Roof Panel Roll Forming Machine 45# Steel



   Dsescription of Large Span Roll Forming Machine



  • K span roll forming machine, also known as roll former, can be divided into vehicle-mounted k-span forming machine and floor-mounted k-span forming machine. It is mainly composed of decoiler, roll former, cutting device, curving machine, product table and computer control system. To realize a high performance in operation, K span roll forming machine can be debugged with little noise.



  • The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
  • All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
  • We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.






  Main Specifications Of Large Span Roof Panel Roll Forming Machine





  • Thickness of sheet: 0.8-1.5mm
  • Mounting dimension of Large Span Roll Forming Machine: 8900mmx2250mmx2300mm
  • Total weight: about 13 Ton
  • Forming Station: 17 stations
  • Control system: electric control
  • Main motor power: 17.7KW
  • Forming Power is 7.5KW
  • Curving motor power: 4KW
  • Electric cutting motor power: 4kw
  • Conical Power is 2.2KW
  • Material of rollers: 45# steel, quenched HRC58-62
  • Material of shaft: 45# steel, adjusted
  • Material of cutting blade: Cr12 steel
  • Quenching hardness: HRC58-60

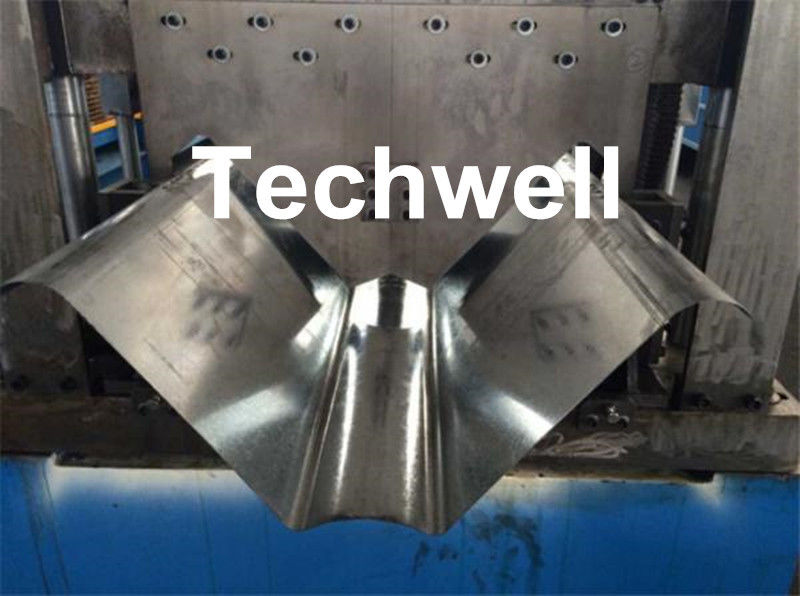

  K-Span Profile Drawings







Electric Cutting 17 Stations 17.7KW Large Span Roof Panel Roll Forming Machine 45# Steel 0

Electric Cutting 17 Stations 17.7KW Large Span Roof Panel Roll Forming Machine 45# Steel 1







  Applications

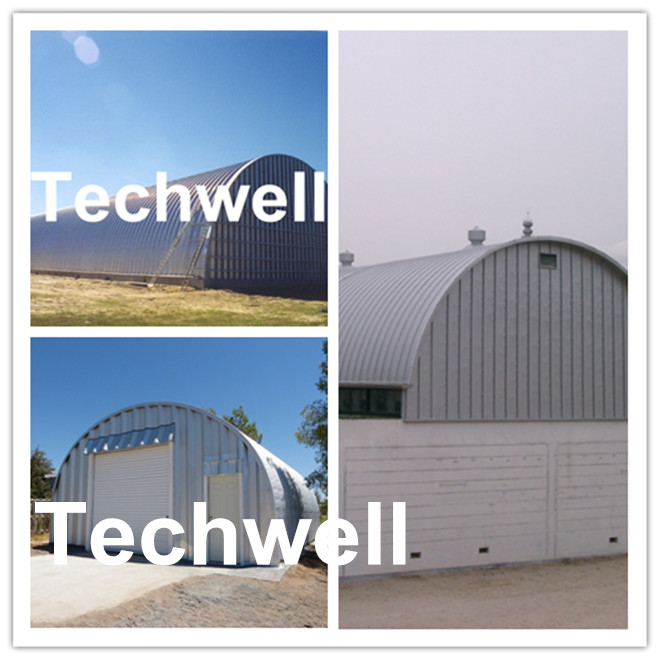

K Span arched roof, k span roofing, large span roof, no-girder roof panel



Electric Cutting 17 Stations 17.7KW Large Span Roof Panel Roll Forming Machine 45# Steel 2





  Our Advantages



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience
