Electric Control Trailer Mounted K Span Roll Forming Machine For Arched Roof Panel

China Electric Control Trailer Mounted K Span Roll Forming Machine For Arched Roof Panel supplier
Electric Control Trailer Mounted K Span Roll Forming Machine For Arched Roof Panel supplier Electric Control Trailer Mounted K Span Roll Forming Machine For Arched Roof Panel supplier Electric Control Trailer Mounted K Span Roll Forming Machine For Arched Roof Panel supplier Electric Control Trailer Mounted K Span Roll Forming Machine For Arched Roof Panel supplier

Large Image :  Electric Control Trailer Mounted K Span Roll Forming Machine For Arched Roof Panel

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-K610

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Coil Thickness: 0.8-1.5mm Generator Power: About 30KW
Cutting Type: Hydraulic Cutting Blade Material: Cr12Mov, Quenched 58-62
Cutting Tolerance: +/-1.5mm Forming Stations: 17 Stations

Electric Control Trailer Mounted K Span Roll Forming Machine For Arched Roof Panel




  Main Specifications Of K Span Roll Forming Machine



  • Thickness of sheet: 0.8-1.5mm
  • Mounting dimension of K-Span Arch Roof Roll Forming Machine: 8900mmx2250mmx2300mm
  • Total weight: about 13 Ton
  • Forming Station: 17 stations
  • Control system: electric control
  • Main motor power: 17.7KW
  • Forming Power is 7.5KW
  • Curving motor power: 4KW
  • Electric cutting motor power: 4kw
  • Conical Power is 2.2KW
  • Material of rollers: 45# steel, quenched HRC58-62
  • Material of shaft: 45# steel, adjusted
  • Material of cutting blade: Cr12 steel
  • Quenching hardness: HRC58-60



   Introduction



  • The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding.
  • It has the ability of strong loading and stable operation when running the machine.
  • All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
  • We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .



  • Large-span forming machine is comprised of decoiler, forming machine, huydraulic cutting device, electric control system, hydraulic station, Generator fand unloading rack. All parts are mounted on a mobile trailer. So it is suitable for site working.





  K-Span Profile Drawings







Electric Control Trailer Mounted K Span Roll Forming Machine For Arched Roof Panel







  Applications





K Span arched roof, k span roofing, large span roof, no-girder roof panel





  Our Advantages



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

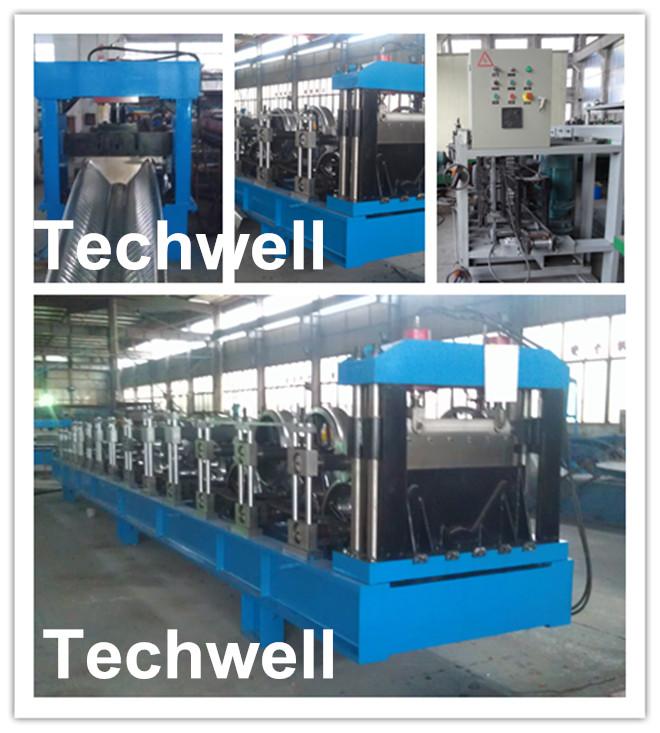

  Machine Pictures



 Electric Control Trailer Mounted K Span Roll Forming Machine For Arched Roof Panel

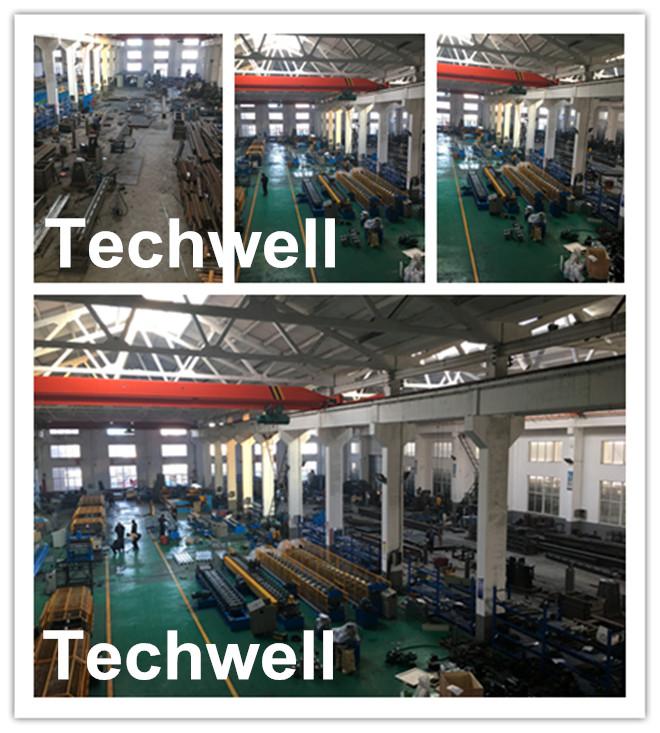

  Factory Pictures



Electric Control Trailer Mounted K Span Roll Forming Machine For Arched Roof Panel
