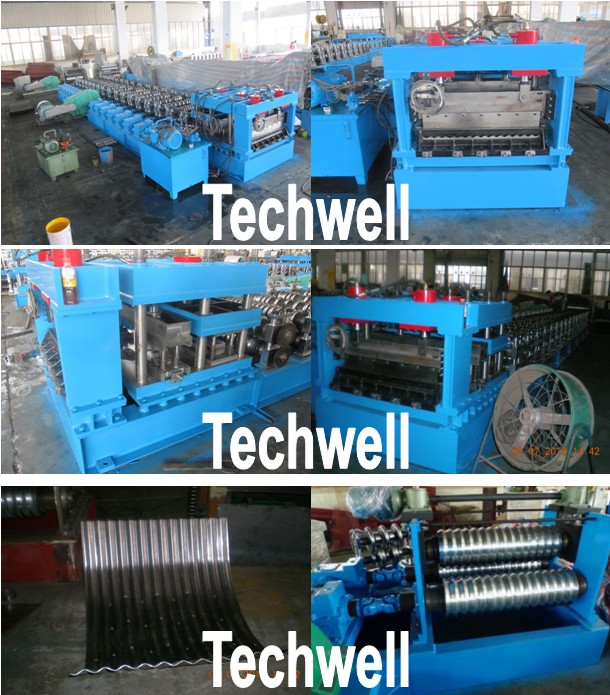

Grain Silo, Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet

Grain Silo, Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet
Grain Silo, Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet Grain Silo, Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet

Large Image :  Grain Silo, Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-SILO
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 100-120 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Detailed Product Description
High Light:

steel roll forming machine

,

corrugated sheet making machine





Grain Silo Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet







  Main Specifications of Steel Corrugated Panel Roll Forming Machine





  • Suitable material: Galvanized sheet, Zinc Alumina sheet
  • Material yield strength: 310Mpa
  • Material thickness: 2.5-4.0mm
  • Max. Feeding coil width: 1250mm
  • Machine working speed: 4-8m//min
  • Forming station: approx 18 stations
  • Size of roll shaft:  Ф120mm
  • Roller material: GCr15, quenching HRC 58-62 °
  • Total power: approx 180KW
  • Power supply: AC440V+/-10%, 50Hz, 3 Phase
  • Whole line dimention: about 35M X 4.5M ( L X W )
  • Installation height: 4.5m
  • Total weith of machine: approx 70 tons







  Working Flow




Loading coil car  ->  Un-coiler  ->  guiding device ->  feeder  ->  leveller  ->  shear roll former  ->  hydraulic press  ->  curving  -> hydraulic cutting  ->  stacker  ->  PLC control

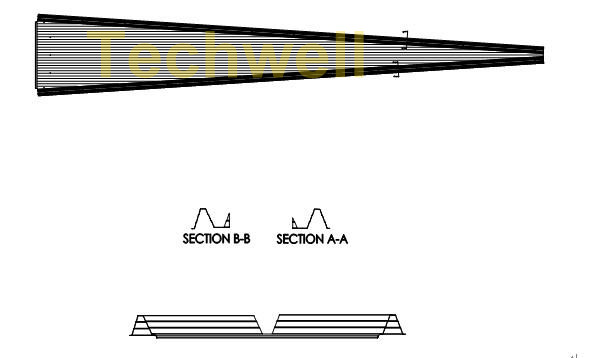

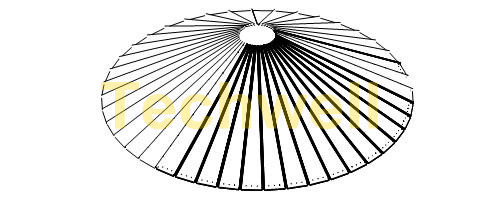

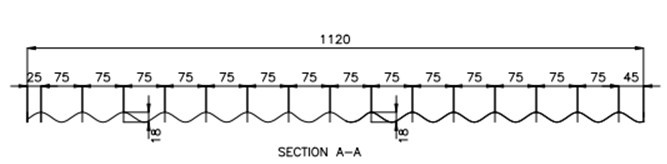

  Reference Drawing







Grain Silo, Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet 0

Grain Silo, Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet 1

Grain Silo, Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet 2

Grain Silo, Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet 3

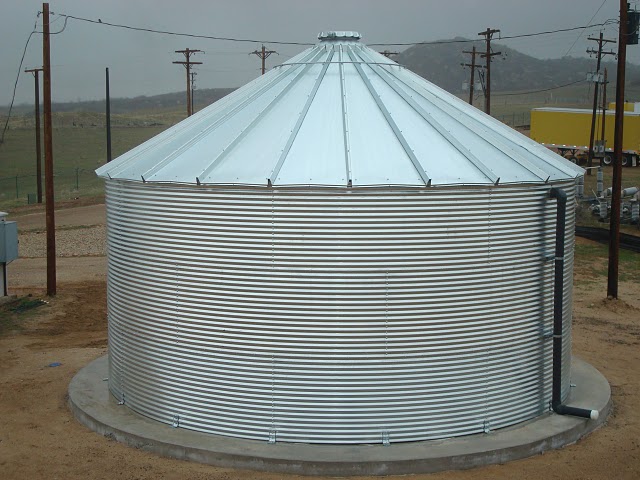

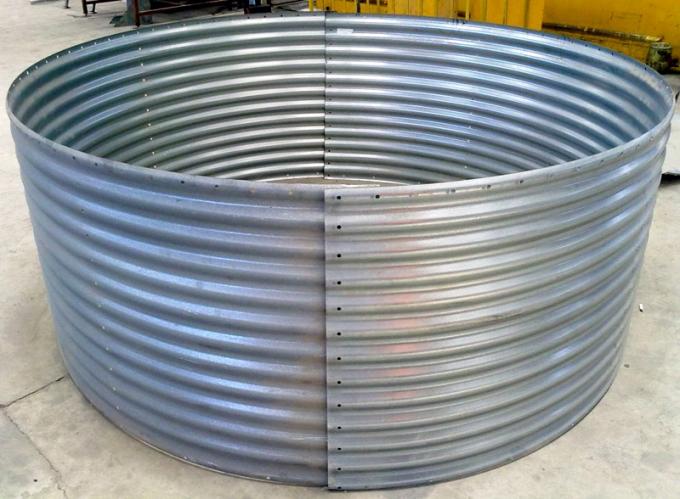

  Application





Steel silo corrugated sheet, steel silo corrugated panel, silo wall sheet, silo corrugated wall sheet, silo wall panel, silo corrugated wall panel, silo side panel, steel corrugated sheet, steel corrugated wall panel, steel corrugated panel





Grain Silo, Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet 4

Grain Silo, Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet 5







  Our Advantage



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

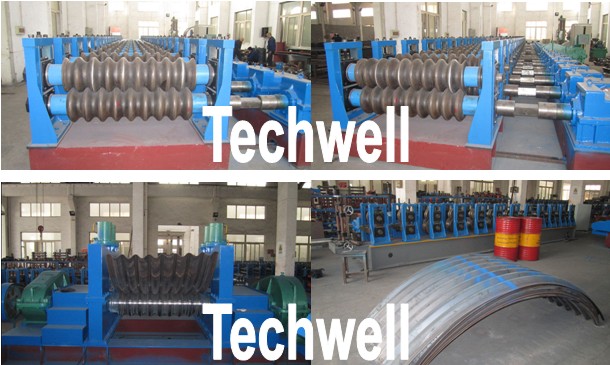

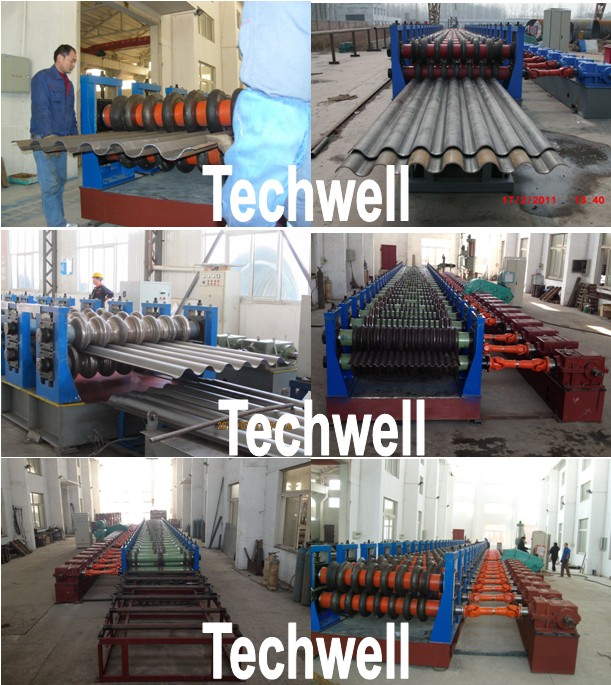

  Machine Pictures







Grain Silo, Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet 6

Grain Silo, Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet 7

Grain Silo, Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet 8









  Factory Pictures







Grain Silo, Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet 9

Grain Silo, Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet 10

Grain Silo, Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet 11









Grain Silo, Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet 12







  Certificate





Grain Silo, Steel Corrugated Panel Roll Forming Machine For Zinc Alumina Sheet 13
