Custom Taper Roof Sheet Roll Forming Machine For Tapered Bemo Panel TW-STM400

Custom Taper Roof Sheet Roll Forming Machine For Tapered Bemo Panel TW-STM400

Roof Sheet Roll Forming Machine

roof panel roll forming machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE

Model Number:

TW-STM400

Contact Us

Request A Quote
Custom Taper Roof Sheet Roll Forming Machine For Tapered Bemo Panel TW-STM400 Custom Taper Roof Sheet Roll Forming Machine For Tapered Bemo Panel TW-STM400 Custom Taper Roof Sheet Roll Forming Machine For Tapered Bemo Panel TW-STM400 Custom Taper Roof Sheet Roll Forming Machine For Tapered Bemo Panel TW-STM400
Product Details
Material Thickness:
1mm
Decoiler Type:
Manual Or Hydraulic Decoiler
Forming Speed:
0-15m/min
Forming Stations:
About 16 Stations
Machine Weight:
About 6Ton
Cutting:
Hydraulic Cutting
RELATED PRODUCTS
Good price Corrugated Profile Roll Forming Machine , Corrugated Sheet Making Machine With PLC Control System online

Corrugated Profile Roll Forming Machine , Corrugated Sheet Making Machine With PLC Control System

Get Best Price
Good price PLC Frequency Control Metal Roof Panel Roll Forming Machine With Color Steel , PPGI Raw Material online

PLC Frequency Control Metal Roof Panel Roll Forming Machine With Color Steel , PPGI Raw Material

Get Best Price
Good price IBR Roofing Sheet Roll Forming Machine / IBR Panel Forming Machine For Making Roof Wall Cladding online

IBR Roofing Sheet Roll Forming Machine / IBR Panel Forming Machine For Making Roof Wall Cladding

Get Best Price
Good price Iron Metal Roof Sheet Roll Forming Machine With Manual Or Hydraulic Uncoiler online Video

Iron Metal Roof Sheet Roll Forming Machine With Manual Or Hydraulic Uncoiler

Get Best Price
Contact Us
86-510-83133431
monica@wxtechwell.com
86-510-83133431
Contact Now
Product Description



Custom Taper Roof Sheet Roll Forming Machine For Tapered Bemo Panel TW-STM400


   Main Specifications of Taper Roof Sheet Roll Forming Machine



  • Material thickness: 1mm
  • Decoiler: Manual or hydraulic decoiler
  • Weight capacity of uncoiler: 5 Ton
  • Forming Speed: 0-15m/min
  • Forming Station: 16 stations
  • Drive: Chain transmission
  • Main power: 5.5KW
  • Cutting: Hydraulic cutting
  • Cutter material: Cr12Mov, Quenched HRC58-62
  • PLC: Panasonic Brand
  • Support table: Simple Nonpower type
  • Machine weight: about 6Ton
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand



  Working Flow


Decoiler -> Slitting & Cutting -> Feeding -> Roll Forming For One Side -> Roll Forming For The Other Side -> Roll Forming For the Middle Rib -> Runout Table



  Reference Drawings



Custom Taper Roof Sheet Roll Forming Machine For Tapered Bemo Panel TW-STM400 0

Custom Taper Roof Sheet Roll Forming Machine For Tapered Bemo Panel TW-STM400 1

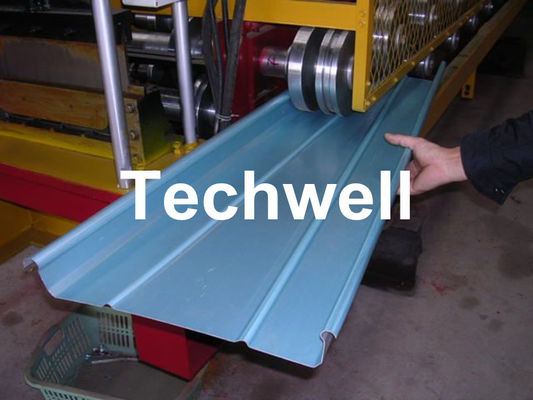

  Machine Picture



Custom Taper Roof Sheet Roll Forming Machine For Tapered Bemo Panel TW-STM400 2

Custom Taper Roof Sheet Roll Forming Machine For Tapered Bemo Panel TW-STM400 3

Custom Taper Roof Sheet Roll Forming Machine For Tapered Bemo Panel TW-STM400 4
