Tapered Bemo Sheet Roll Forming Machine With 0.55 - 1.0mm PPGI for Tapered Bemo Panel

China Tapered Bemo Sheet Roll Forming Machine With 0.55 - 1.0mm PPGI for Tapered Bemo Panel supplier
Tapered Bemo Sheet Roll Forming Machine With 0.55 - 1.0mm PPGI for Tapered Bemo Panel supplier Tapered Bemo Sheet Roll Forming Machine With 0.55 - 1.0mm PPGI for Tapered Bemo Panel supplier Tapered Bemo Sheet Roll Forming Machine With 0.55 - 1.0mm PPGI for Tapered Bemo Panel supplier Tapered Bemo Sheet Roll Forming Machine With 0.55 - 1.0mm PPGI for Tapered Bemo Panel supplier

Large Image :  Tapered Bemo Sheet Roll Forming Machine With 0.55 - 1.0mm PPGI for Tapered Bemo Panel

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-STM400

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description

Tapered Bemo Sheet Roll Forming Machine With 0.55 - 1.0mm PPGI  for Tapered Bemo Panel



    Main Specifications of Tapered Bemo Sheet Roll Forming Machine



  • Material thickness: 1mm
  • Decoiler: Manual or hydraulic decoiler
  • Weight capacity of uncoiler: 5 Ton
  • Forming Speed of Tapered Bemo Sheet Forming Machine: 0-15m/min
  • Forming Station: 16 stations
  • Drive: Chain transmission
  • Main power: 5.5KW
  • Cutting: Hydraulic cutting
  • Cutter material: Cr12Mov, Quenched HRC58-62
  • PLC: Panasonic Brand
  • Support table: Simple Nonpower type
  • Machine weight: about 6Ton
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand



  Working Flow




Decoiler -> Slitting & Cutting -> Feeding -> Roll Forming For One Side -> Roll Forming For The Other Side -> Roll Forming For the Middle Rib -> Runout Table



  Reference Drawings



Tapered Bemo Sheet Roll Forming Machine With 0.55 - 1.0mm PPGI for Tapered Bemo Panel

Tapered Bemo Sheet Roll Forming Machine With 0.55 - 1.0mm PPGI for Tapered Bemo Panel

Tapered Bemo Sheet Roll Forming Machine With 0.55 - 1.0mm PPGI for Tapered Bemo Panel

Tapered Bemo Sheet Roll Forming Machine With 0.55 - 1.0mm PPGI for Tapered Bemo Panel

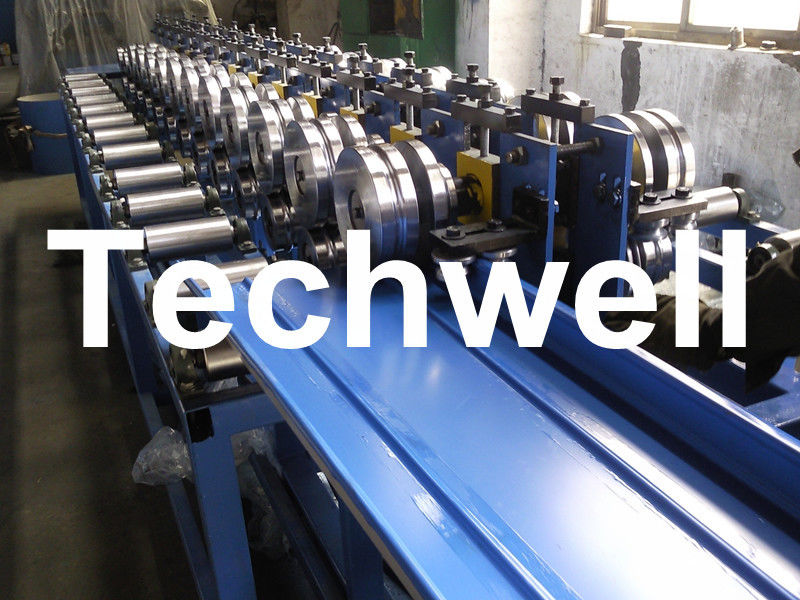

  Machine Picture



Tapered Bemo Sheet Roll Forming Machine With 0.55 - 1.0mm PPGI for Tapered Bemo Panel

Tapered Bemo Sheet Roll Forming Machine With 0.55 - 1.0mm PPGI for Tapered Bemo Panel

Tapered Bemo Sheet Roll Forming Machine With 0.55 - 1.0mm PPGI for Tapered Bemo Panel



Tapered Bemo Sheet Roll Forming Machine With 0.55 - 1.0mm PPGI for Tapered Bemo Panel
