Custom Automatic Shutter Door Slat / Roller Shutter Door Forming Machine TW-RSD85

Name: Custom Automatic Shutter Door Slat / Roller Shutter Door Forming Machine TW-RSD85
Brand: TECHWELL
SKU: TW-RSD85
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (151 reviews)

Large Image : Custom Automatic Shutter Door Slat / Roller Shutter Door Forming Machine TW-RSD85

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE
Model Number:	TW-RSD85

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard packing
Delivery Time:	55-65 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 sets

Contact Now

Detailed Product Description

High Light:

Garage Door Roll Forming Machine

shutter door roll forming machine

Custom Automatic Shutter Door Slat / Roller Shutter Door Forming Machine TW-RSD85

Main Specifications

Steel Sheet Thickness: 0.5-1.2mm or 1.5-2.5mm (depend on requirement )
Covered Width: 82.3mm ( depend on prfoile )
Coil Width: 134mm ( depend on prfoile )
Decoiler: Manual Decoiler
Capacity of Decoiler: 3 Ton
Forming Speed: 5-15m/min
Roller Groups: 13 stes main roller
Roller Material: CCr15 high grade steel with finish machining treatment, by high frequency quenched HRC58-62
Roller Diameter: 120mm
Principal Axis: 45# high grade steel with brewage treatment

Applications

Rolling shutter door, shutter door, roller shutter door, shutter door slat...

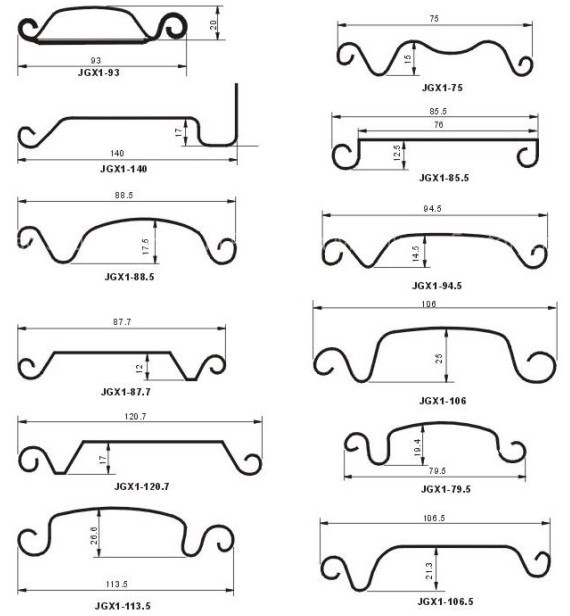

Roller Shutter Profile Drawing

Custom Automatic Shutter Door Slat / Roller Shutter Door Forming Machine TW-RSD85 0

Main Components

Decoiler ----------------------------------------------- 1 Unit
Feeding ----------------------------------------------- 1 Unit
Main roll forming machine ----------------------------- 1 Unit
Hydraulic cutting device ------------------------------- 1 Unit
Hydraulic Station -------------------------------------- 1 Unit
PLC computer control --------------------------------- 1 Unit
Output table ------------------------------------------ 1 Unit

Our Advantage

High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

Roller Shutter Door Forming Machine Pictures

Custom Automatic Shutter Door Slat / Roller Shutter Door Forming Machine TW-RSD85 1

Factory Pictures

Custom Automatic Shutter Door Slat / Roller Shutter Door Forming Machine TW-RSD85 2

Custom Automatic Shutter Door Slat / Roller Shutter Door Forming Machine TW-RSD85 3

Custom Automatic Shutter Door Slat / Roller Shutter Door Forming Machine TW-RSD85 4

Custom Automatic Shutter Door Slat / Roller Shutter Door Forming Machine TW-RSD85 5

Certificate

Custom Automatic Shutter Door Slat / Roller Shutter Door Forming Machine TW-RSD85 6
