39 / 42 / 45 / 55 / 65 / 77mm PU Foam Roller Shutter Door Slat Roll Forming Machine With Servo Flying Saw Cutting

39 / 42 / 45 / 55 / 65 / 77mm PU Foam Roller Shutter Door Slat Roll Forming Machine With Servo Flying Saw Cutting

Garage Door Roll Forming Machine

shutter door roll forming machine

Place of Origin:

China

Brand Name:

TECHWELL

Certification:

CE, ISO

Model Number:

CT-300-600X90

Contact Us

Request A Quote
Product Details
Material Type:
Aluminum, Galvanized
Material Thickness:
0.2-0.35mm
Profile Model:
39 / 42 / 45 / 55 / 65 / 77mm
Cutting Power:
2.2KW
Main Power:
7.5KW
PLC:
Panasonic Brand
Product Description

39 / 42 / 45 / 55 / 65 / 77mm PU Foam Roller Shutter Door Slat Roll Forming Machine With Servo Flying-Saw Cutting



   A). PU Foam Roller Shutter Slat Profiles / Finished Slat Pieces



39 / 42 / 45 / 55 / 65 / 77mm PU Foam Roller Shutter Door Slat Roll Forming Machine With Servo Flying Saw Cutting 0
39 / 42 / 45 / 55 / 65 / 77mm PU Foam Roller Shutter Door Slat Roll Forming Machine With Servo Flying Saw Cutting 1

39 / 42 / 45 / 55 / 65 / 77mm PU Foam Roller Shutter Door Slat Roll Forming Machine With Servo Flying Saw Cutting 2

39 / 42 / 45 / 55 / 65 / 77mm PU Foam Roller Shutter Door Slat Roll Forming Machine With Servo Flying Saw Cutting 3



   B). Main Specifications of PU Foam Rolling Shutter Door Slat Machine

Dri

  1. Sheet Material: Aluminum
  2. Sheet Thickness: 0.2-0.35mm
  3. Covered Width: 39mm / 42mm / 45mm / 55mm / 65mm / 77mm
  4. Decoiler: Manual Decoiler
  5. Capacity of Decoiler: 2 Ton
  6. Forming Speed: 0-15m/min
  7. Drive Type: Gearbox Drive
  8. Forming Station: approx. 37 stations
  9. Shaft Diameter: 40mm or 50mm
  10. Shaft Material: High grade 45# steel with heat treatment
  11. Main Power: 7.5KW
  12. Punching: Pneumatic type punching
  13. Cutting Type: Servo Tracking Flying-Saw Cutting
  14. Cutting Power: 2.2KW
  15. Servo Motor Power: 1.5KW
  16. PU Foaming Machine: with TWO group " ISO / POLY "
  17. Main Machine Dimension: approx. 24m * 1.2m * 1.2m ( L * W * H )

   C). Layout of PU Foam Roller Shutter Salt Making Machine



39 / 42 / 45 / 55 / 65 / 77mm PU Foam Roller Shutter Door Slat Roll Forming Machine With Servo Flying Saw Cutting 4

Shee

   C). Main Components



  Components of PU Foam Roller Shutter Door Slat Forming Machine                 Quantity
  2 Ton Uncoiler                   1 Unit
  Feding Guide                   1 Unit
  Main Roll Forming Machine                   1 Unit
  Heating Device                   1 Unit
  PU Injection Foaming Machine                   1 Unit
  Pneumatic Tracking Punching                   1 Unit
  Servo Flying-Saw Cutting                   1 Unit
  PLC Electrical Control Board                   1 Unit
  Run Out Support Table                   1 Unit

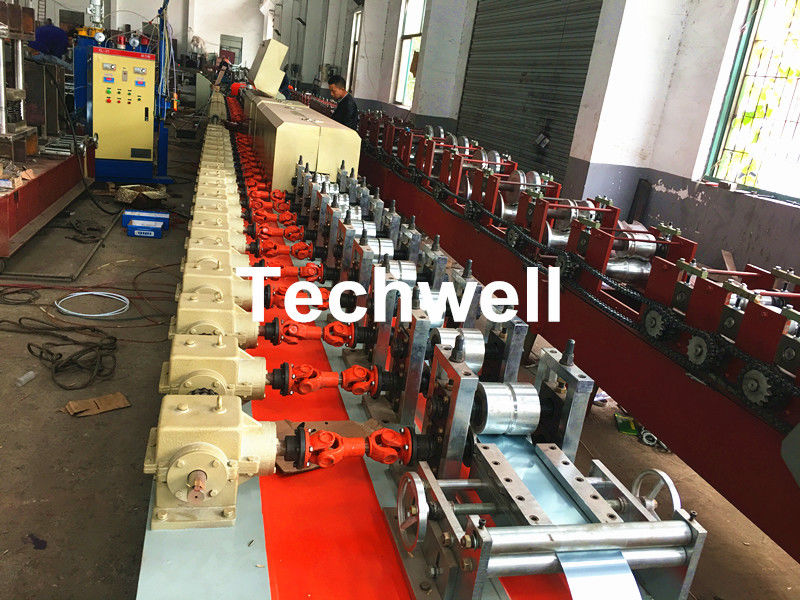

   D). More Pictures of PU Foam Roller Shutter Door Slat Machine



39 / 42 / 45 / 55 / 65 / 77mm PU Foam Roller Shutter Door Slat Roll Forming Machine With Servo Flying Saw Cutting 5

39 / 42 / 45 / 55 / 65 / 77mm PU Foam Roller Shutter Door Slat Roll Forming Machine With Servo Flying Saw Cutting 6
