1.8 - 2.3mm Rack Roll Forming Machine / Cable Tray Forming Machine TW-RACK

1.8 - 2.3mm Rack Roll Forming Machine With Galvanized Coil Or Carbon Steel, Forming Speed 12-15m/min

  Main Specifications Of Rack Roll Forming Machine

• Suitable Material: thickness 1.8-2.3mm, Galvanized coil or carbon steel
• Working Speed: 12-15m/min
• Forming Stations: 16 stations
• Roller Material: Cr12Mov, Quench HRC58-62
• Shaft Material: 45# Advanced Steel
• Shaft Diameter: 75mm
• Total power: 22.5kw
• Decoiler: Manual decoiler or Auto Decoiler or Hydraulic Decoiler (Depend on customer's requirement)
• Drive Type: Chain Drive
• Punching Type: Hydraulic punching
• Cutting Blade: Cr12Mov, quench HRC58-62
• Cutting Type: Hydraulic cutting
• The whole machine is controlled by industry computer-PLC
• PLC: PANASONIC Brand
• Encoder: Omron
• Inverter: YASKAWA Brand

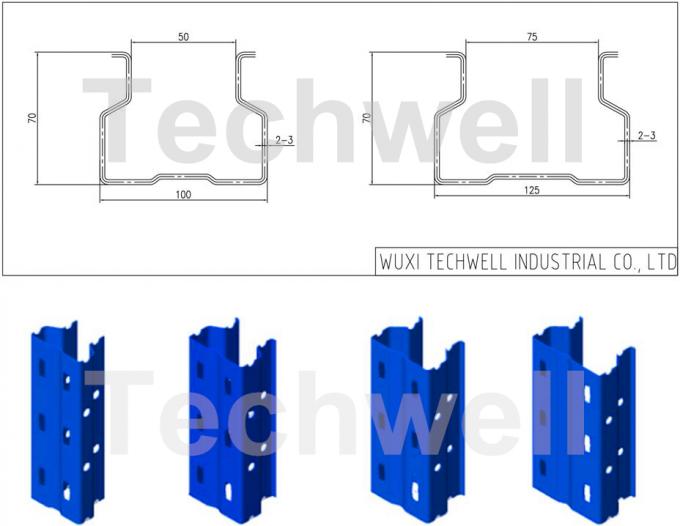

  Rack Profile Drawings

  Working Flow

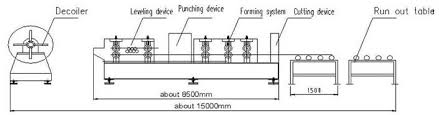

Decoiler – Feeding - Leveling– Servo Feeding –Hydraulic Punching – Pinch Feeding --- Main Roll Forming –

Straightness Device – Hydraulic Cutting -- Run out table

  Applications

Storage rack, storage shelf, Steel rack,steel shelf, rack beam

   Our Advantages

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

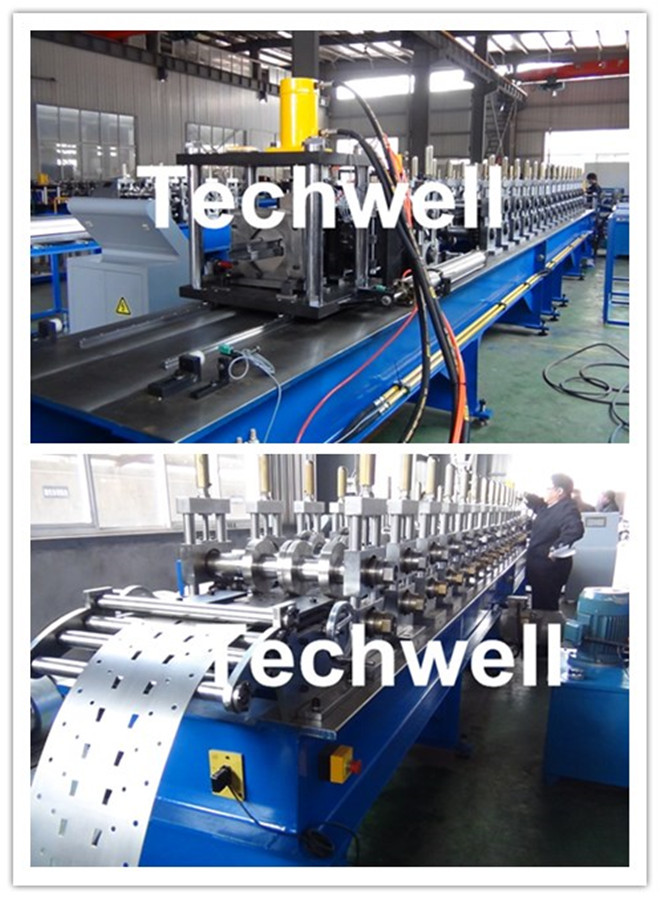

  Machine Pictures
