18 Groups Forming Roller Stand Upright Rack Roll Forming Machine for Storage Rack

China 18 Groups Forming Roller Stand Upright Rack Roll Forming Machine for Storage Rack supplier
18 Groups Forming Roller Stand Upright Rack Roll Forming Machine for Storage Rack supplier 18 Groups Forming Roller Stand Upright Rack Roll Forming Machine for Storage Rack supplier 18 Groups Forming Roller Stand Upright Rack Roll Forming Machine for Storage Rack supplier 18 Groups Forming Roller Stand Upright Rack Roll Forming Machine for Storage Rack supplier

Large Image :  18 Groups Forming Roller Stand Upright Rack Roll Forming Machine for Storage Rack

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-RACK

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 70-80 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 10 sets
Contact Now
Detailed Product Description
Material Thickness: 2.0-3.0mm Forming Material Type: GI
Machine Frame: High Grade Steel Welded And Tempering Treatment Forming Motor: About 15KW
Shaft Diameter: Φ 75mm Shaft Material: 40Cr High Grade Steel Tempering Treatment (HB220-260)

18 Groups Forming Roller Stand Upright Rack Roll Forming Machine for Storage Rack





  Main Specifications Of Upright Rack Roll Forming Machine







1). 4 Ton Manual Uncoiler

  1. Machine frame: welding structure with shot lastingtreatment
  2. Components: Base, brake device, inner hole support, Expanding / tighten device
  3. Weight capacity of Decoiler: 4Ton Max
  4. Inner diameter of coil: 508mm



2). 7 Roller Leveling Machine

  1. 2 Rollers pinch feeding, 7 rollers leveling
  2. leveling roller diameter: about Φ 90mm
  3. Leveling roller material: high grade 40Cr
  4. Heat treatment of leveling roller: surface Hi-frequency quench treatment
  5. Leveling motor power: 3KW



3). Servo Feeding Machine

  1. Servo motor power: 3KW
  2. Servo motor brand: YASKAWA (JAPAN)
  3. To exact accurately feed the sheet into punching machine according to the set program



4).  Press Machine

  1. Punching Pressure: 80 Ton
  2. Punching Mould size: according to drawing
  3. Punching Mould: 1 set



5). Main Upright Racking Roll Forming Machine

  1. Forming material thickness: 2-3mm
  2. Forming material type: GI
  3. Machine Frame: high grade steel welded and tempering treatment
  4. Forming Motor: 15KW
  5. Drive type: Gearbox Drive
  6. Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)
  7. Shaft Diameter: Φ 75mm
  8. Bearing: HRB bearing ( Top Chinese brand )



6). Hydraulic Cutting & Hydraulic Station

  1. Cutting type: Hydraulic Post-cutting after roll forming,
  2. When Cutting, Machine stop
  3. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62
  4. Hydraulic Station Power: 5.5KW

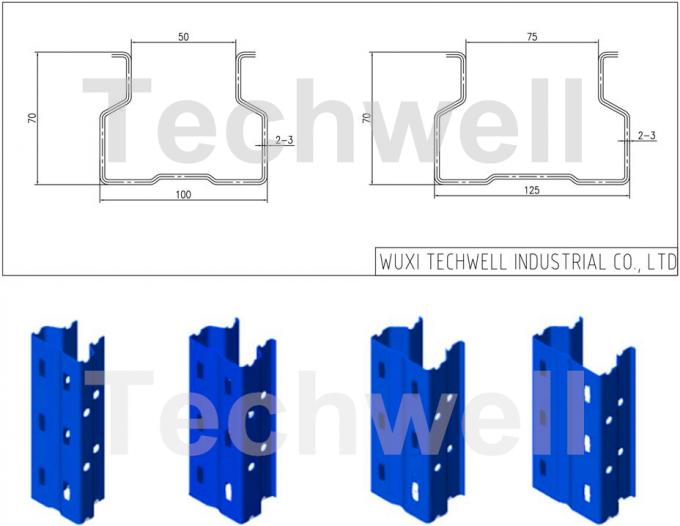

  Rack Profile Drawings



18 Groups Forming Roller Stand Upright Rack Roll Forming Machine for Storage Rack









  Working Flow






Decoiler ---- Leveling ----- Servo Feeding --- Press Machine --- Roll Forming ---- Cutting ---- Run out tables







   Main Components



Components of Upright Rack Roll Forming Machine Quantity
4 Ton Uncoiler 1 Unit
7 Rollers Leveling 1 Unit
Servo Feeding 1 Unit
Press Machine 1 Unit
Main Roll Forming Machine 1 Unit
Hydraulic Cutting 1 Unit
PLC Electrical Control Board 1 Unit
Hydraulic Stations 1 Unit
Run Out Table 1 Unit





   Our Advantages





  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience







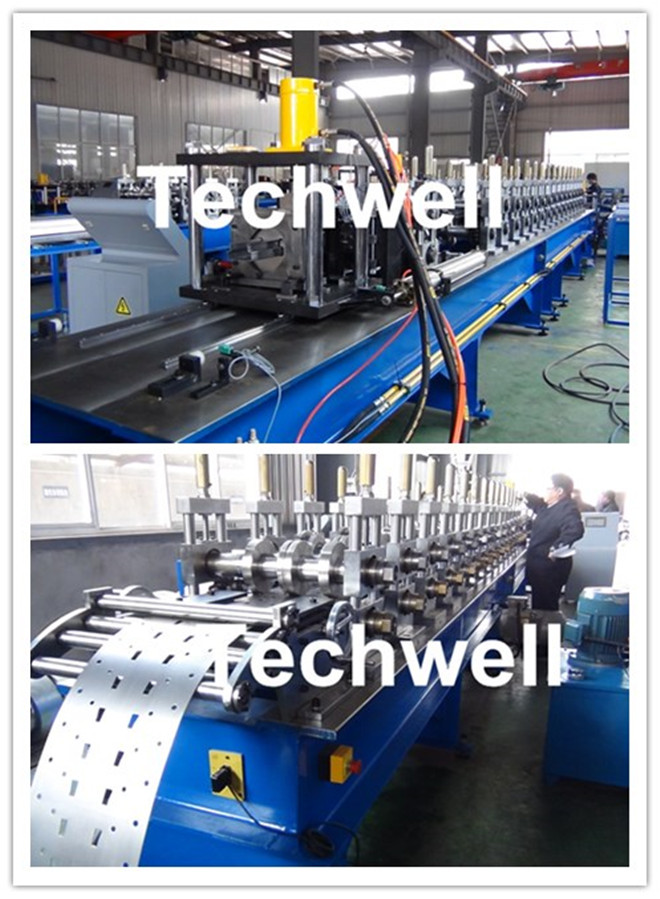

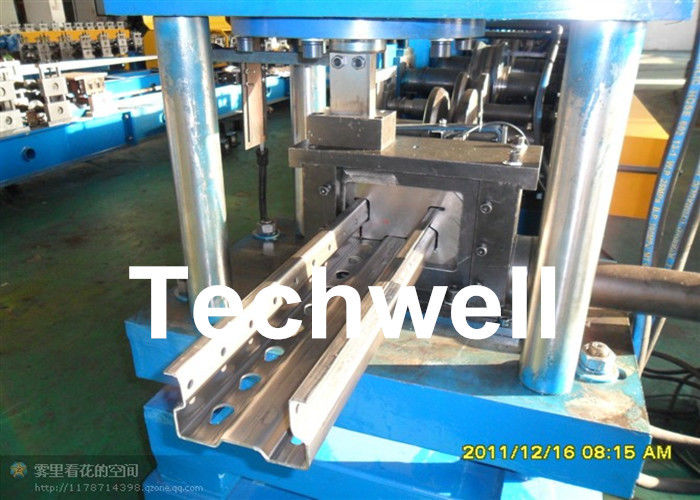

  Machine Pictures



18 Groups Forming Roller Stand Upright Rack Roll Forming Machine for Storage Rack

Contact Details
Wuxi Techwell Machinery Co., Ltd

Contact Person: monica

Send your inquiry directly to us (0 / 3000)
