GCr15 Steel Roller, High Speed Shelf Roll Forming Machine For 1.8 - 2.3mm Material

GCr15 Steel Roller, High Speed Shelf Roll Forming Machine For 1.8 - 2.3mm Material
GCr15 Steel Roller, High Speed Shelf Roll Forming Machine For 1.8 - 2.3mm Material GCr15 Steel Roller, High Speed Shelf Roll Forming Machine For 1.8 - 2.3mm Material GCr15 Steel Roller, High Speed Shelf Roll Forming Machine For 1.8 - 2.3mm Material

Large Image :  GCr15 Steel Roller, High Speed Shelf Roll Forming Machine For 1.8 - 2.3mm Material

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-RACK
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 70-80 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 10 sets
Contact Now
Detailed Product Description
Material Thickness: 1.5-2.5mm Forming Stations: 16 Stations
Forming Speed: 10-15m/min Shaft Diameter: 70mm
Drive Type: Chain Drive Cutting: Hydraulic Cutting
High Light:

steel roll forming machine

,

Racking Roll Forming Machine

GCr15 Steel Roller, High Speed Shelf Roll Forming Machine For 1.8 - 2.3mm Material




  Main Specifications Of Shelf Roll Forming Machine





  • Material Thickness: 1.5-2.5mm
  • Forming Stations: 16 stations
  • Main Power: 15Kw
  • Forming Speed: 10-15m/min
  • Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
  • Shaft Diameter: 70mm
  • Shaft Material: 45# Advanced Steel
  • Punching: Hydraulic punching
  • Drive Type: Chain Drive
  • Cutting: Hydraulic cutting
  • Cutting Length Tolerance: +/-1mm
  • Cutting Die Material: Cr12Mov, Quench HRC58-62
  • Hydraulic Station Power: 11Kw
  • PLC: Panasonic,Japan
  • Touch Screen: MCGS Brand
  • Encoder: OMRON Brand





  Rack Profile Drawings







GCr15 Steel Roller, High Speed Shelf Roll Forming Machine For 1.8 - 2.3mm Material 0









  Working Flow






Decoiler ---- Servo Feeding --- Punching--- Levelling--- Roll Forming ---- Cutting ---- Run out table





  Applications





Storage rack, storage shelf, Steel rack,steel shelf, rack beam





   Our Advantages





  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

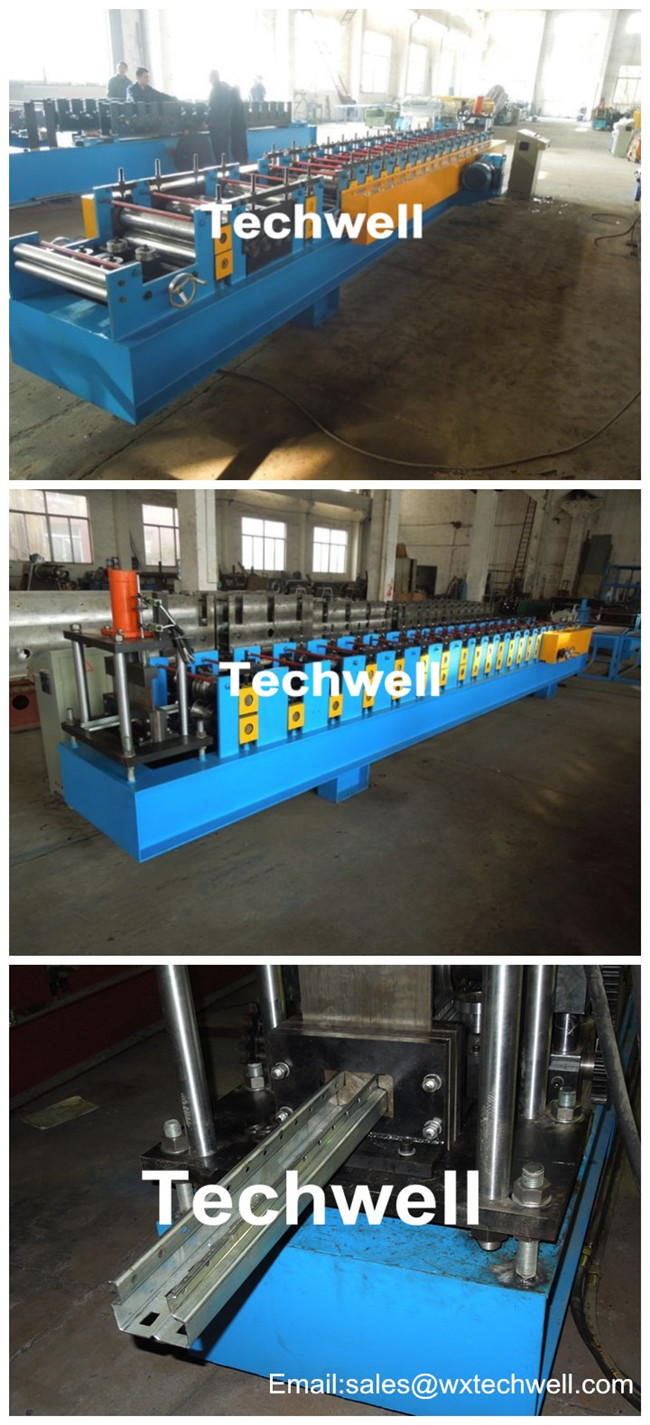

  Machine Pictures



 GCr15 Steel Roller, High Speed Shelf Roll Forming Machine For 1.8 - 2.3mm Material 1
