3" * 3" Squared Rainwater Downpipe Roll Forming Machine For Water Pipe, Rain Gutter

Name: 3" * 3" Squared Rainwater Downpipe Roll Forming Machine For Water Pipe, Rain Gutter
Brand: TECHWELL
SKU: TW-DP100
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (132 reviews)

Large Image : 3" * 3" Squared Rainwater Downpipe Roll Forming Machine For Water Pipe, Rain Gutter

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE
Model Number:	TW-DP100

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard packing
Delivery Time:	70-80 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 sets

Contact Now

Detailed Product Description

Material Spec:	PPGI, Aluminum	Thickness Of Coil Sheet:	0.4-0.6mm
Forming Motor Power:	7.5KW	Forming Speed:	0-15m/min (excluding Cutting Time)
Roller Material:	High Grade 45#, Polished And Coated With 0.05mm Chrome Surface.	Material Of Axis:	High Grade 45# Steel
High Light:	Down Pipe Roll Forming Machine , Round Downspout Machine

3" * 3" Squared Rainwater Downpipe Roll Forming Machine For Water Pipe, Rain Gutter

Main Specifications

Main motor power: 7.5Kw
Number of forming station: About 20
Forming speed of downpipe roll forming machine: 6-12m/min
Voltage: 380 V, 3 Phase 50Hz ( or depend on customer’s requirement )
Dimension of machine: About 12000mm*1100mm*1200mm
Machine wight: about 12 Ton
Material of Axis: High grade 45# steel
Diameter of Axis: φ75mm
Material of Roller: High grade 45#, polished and coated with 0.05mm Chrome Surface.
Materical of Machine Frame: A3 Steel, thickness 18mm
Electrical Control: PLC Frequency Control System with touch screen
PLC: PANASONIC Brand
Encoder: OMRON Brand
Transducer: PANASONIC Brand

Reference Rainspout Drawing

3" * 3" Squared Rainwater Downpipe Roll Forming Machine For Water Pipe, Rain Gutter 0

3" * 3" Squared Rainwater Downpipe Roll Forming Machine For Water Pipe, Rain Gutter 1

3" * 3" Squared Rainwater Downpipe Roll Forming Machine For Water Pipe, Rain Gutter 2

Main Components

Decoiler ---------------------------------------------- 1 Unit
Feeding guide --------------------------------------- 1 Unit
main roll forming machine ------------------------ 1 Unit
Hydraulic cutting device --------------------------- 1 Unit
Hydraulic Station ------------------------------------ 1 Unit
PLC computer control ----------------------------- 1 Unit
Output table ------------------------------------------ 1 Unit
Elbow machine --------------------------------------- 1 Unit

Working Flow

Decoiler--> Coil sheet guiding and feeding --> Roll forming machine with safty guard--> Tighten Device -> Cut to

length --> Out-put Table --> Curving machine

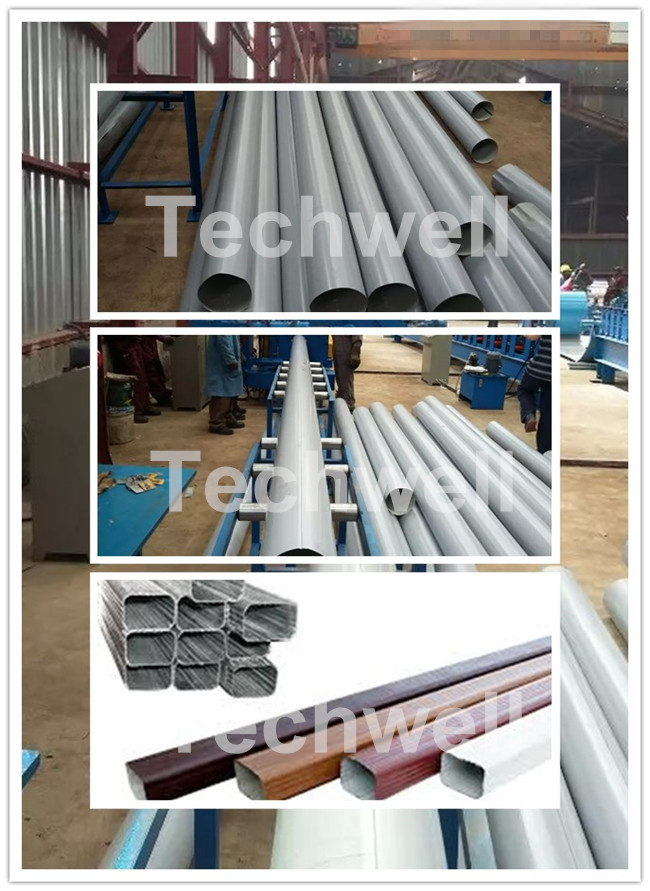

Applications

Rainwater downpipe, downspout, rainspout, water pipe, drainpipe

3" * 3" Squared Rainwater Downpipe Roll Forming Machine For Water Pipe, Rain Gutter 3

Our Advantage

High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

Machine Pictures

3" * 3" Squared Rainwater Downpipe Roll Forming Machine For Water Pipe, Rain Gutter 4

Contact of Details

Item	Contact Methods
Contact Person	Lemon
E-mail / Skype	sales@wxtechwell.com
Tel / Whatsapp	+86-15861597732
Website	https://www.wxtechwell.com www.cold-rollformingmachine.com
Reference Video	https://youtu.be/gkBqhWdUwmI https://youtu.be/T7n-n9DOa9w
