Rainwater Downspout Roll Forming Machine With φ75mm Axis for Rainwater Downpipe

Name: Rainwater Downspout Roll Forming Machine With φ75mm Axis for Rainwater Downpipe
Brand: TECHWELL
SKU: TW-DP100
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (193 reviews)

Large Image : Rainwater Downspout Roll Forming Machine With φ75mm Axis for Rainwater Downpipe

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE
Model Number:	TW-DP100

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard packing
Delivery Time:	70-80 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 sets

Contact Now

Detailed Product Description

High Light:

Round Downspout Machine

Downspout Roll Forming Machine

Rainwater Downspout Roll Forming Machine With φ75mm Axis for Rainwater Downpipe

Main Specifications

Main motor power: 7.5Kw
Number of forming station: About 20
Forming speed of downpipe forming machine: 6-12m/min
Voltage: 380 V, 3 Phase 50Hz ( or depend on customer’s requirement )
Dimension of machine: About 12000mm*1100mm*1200mm
Machine wight: about 12 Ton
Material of Axis: High grade 45# steel
Diameter of Axis: φ75mm
Material of Roller: High grade 45#, polished and coated with 0.05mm Chrome Surface.
Materical of Machine Frame: A3 Steel, thickness 18mm
Electrical Control: PLC Frequency Control System with touch screen
PLC: PANASONIC Brand
Encoder: OMRON Brand
Transducer: PANASONIC Brand

Reference Rainspout Drawing

Rainwater Downspout Roll Forming Machine With φ75mm Axis for Rainwater Downpipe 0

Rainwater Downspout Roll Forming Machine With φ75mm Axis for Rainwater Downpipe 1

Rainwater Downspout Roll Forming Machine With φ75mm Axis for Rainwater Downpipe 2

Main Components

Decoiler ---------------------------------------------- 1 Unit
Feeding guide ---------------------------------------- 1 Unit
main roll forming machine ---------------------------- 1 Unit
Hydraulic cutting device ------------------------------ 1 Unit
Hydraulic Station ------------------------------------- 1 Unit
PLC computer control -------------------------------- 1 Unit
Output table ----------------------------------------- 1 Unit
Elbow machine --------------------------------------- 1 Unit

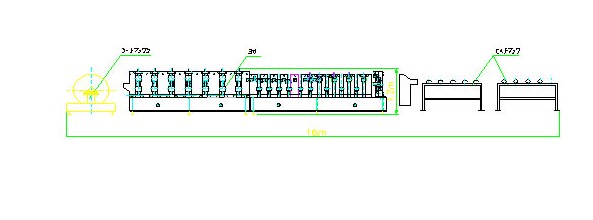

Working Flow

Decoiler--> Coil sheet guiding and feeding --> Roll forming machine with safty guard--> Tighten Device -> Cut to length --> Out-put Table --> Curving machine

Rainwater Downspout Roll Forming Machine With φ75mm Axis for Rainwater Downpipe 3

Applications

Rainwater downpipe, downspout, rainspout, water pipe, drainpipe

Rainwater Downspout Roll Forming Machine With φ75mm Axis for Rainwater Downpipe 4

Rainwater Downspout Roll Forming Machine With φ75mm Axis for Rainwater Downpipe 5

Our Advantage

High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

Video of Downspout machine

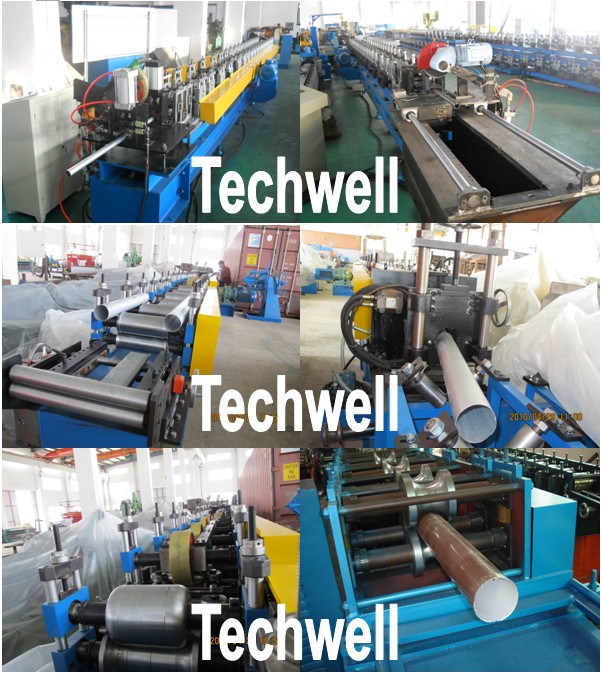

Machine Pictures

Rainwater Downspout Roll Forming Machine With φ75mm Axis for Rainwater Downpipe 6

Rainwater Downspout Roll Forming Machine With φ75mm Axis for Rainwater Downpipe 7

Rainwater Downspout Roll Forming Machine With φ75mm Axis for Rainwater Downpipe 8

Factory Pictures

Rainwater Downspout Roll Forming Machine With φ75mm Axis for Rainwater Downpipe 9

Rainwater Downspout Roll Forming Machine With φ75mm Axis for Rainwater Downpipe 10

Rainwater Downspout Roll Forming Machine With φ75mm Axis for Rainwater Downpipe 11

Rainwater Downspout Roll Forming Machine With φ75mm Axis for Rainwater Downpipe 12

Certificate

Rainwater Downspout Roll Forming Machine With φ75mm Axis for Rainwater Downpipe 13
