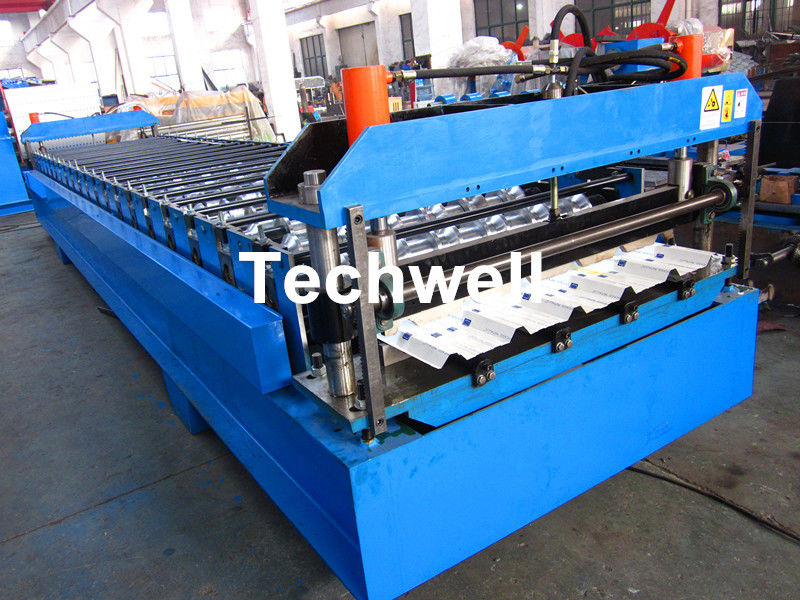

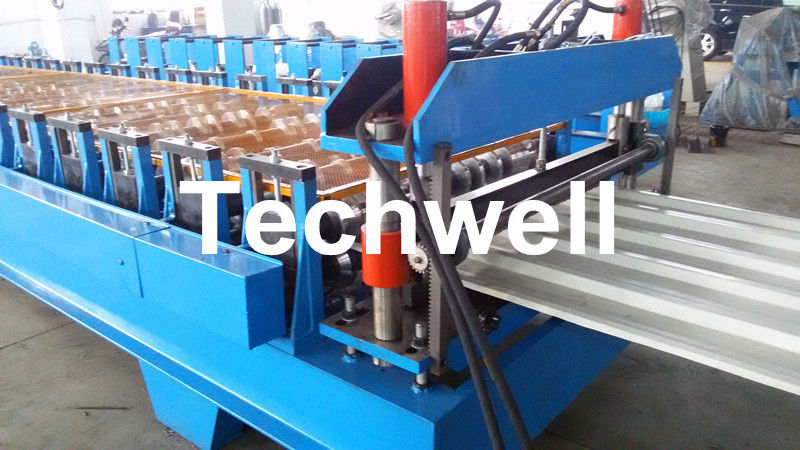

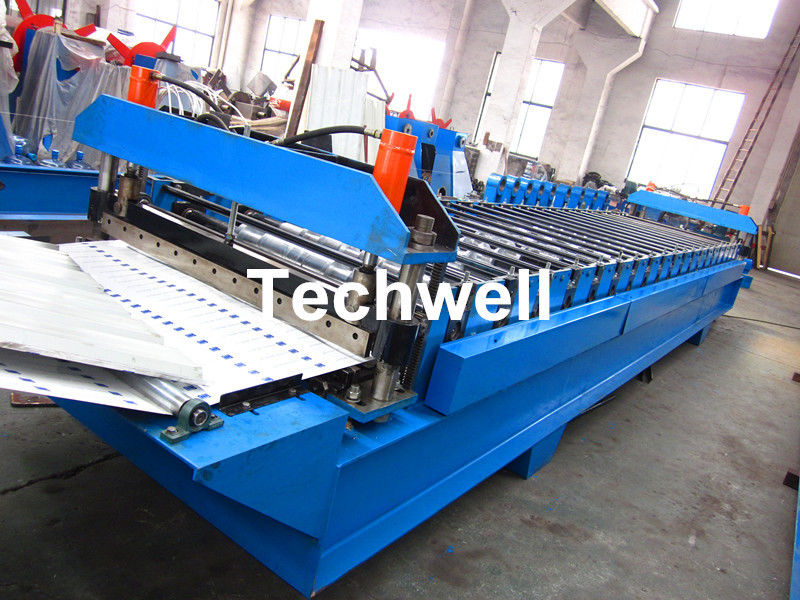

Trapezoidal Roof Panel Sheet Roll Forming Machine CE ISO TW35-200-1000

China Trapezoidal Roof Panel Sheet Roll Forming Machine CE ISO TW35-200-1000 supplier
Trapezoidal Roof Panel Sheet Roll Forming Machine CE ISO TW35-200-1000 supplier Trapezoidal Roof Panel Sheet Roll Forming Machine CE ISO TW35-200-1000 supplier Trapezoidal Roof Panel Sheet Roll Forming Machine CE ISO TW35-200-1000 supplier Trapezoidal Roof Panel Sheet Roll Forming Machine CE ISO TW35-200-1000 supplier

Large Image :  Trapezoidal Roof Panel Sheet Roll Forming Machine CE ISO TW35-200-1000

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO Certificate
Model Number: TW-35-200-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: export package
Delivery Time: 60 working days
Supply Ability: 30 sets per year
Contact Now
Detailed Product Description
Roof Model: TW35-200-1000 Material: Color Steel, PPGI
Material Width: 1250mm Material Thickness: 0.3-0.7mm
Forming Station: 22-24 Stations Cutting Type: Hydraulic Cutting

TW35-200-1000 Trapezoidal Roof Panel Sheet Roll Forming Machine



   Main Specifications of TW35-200-1000 Trapezoidal Sheet Roll Forming Machine



Trapezoidal Sheet Roll Forming Machine Technical Data
Material specifications Color Steel Coil, PPGI
Thickness 0.3-0.7mm
Yield Strength 350Mpa
Coil width 1250mm
Forming Roller Stations 22-24 forming stations
Diameter of Forming Shaft 75mm
Forming Speed 0-20m/min
Forming Roller Material 45# Steel, coated with hard chrome 0.05mm
Cutter Material CR12Mov Mold steel, with quench treatment
Controlling system PLC with Touch screen & Inverter
Main Motor Power 7.5KW
Cutting Power 3KW
Machine weight 5500Kgs





































  Trapezoidal Profile Drawing



Trapezoidal Roof Panel Sheet Roll Forming Machine CE ISO TW35-200-1000

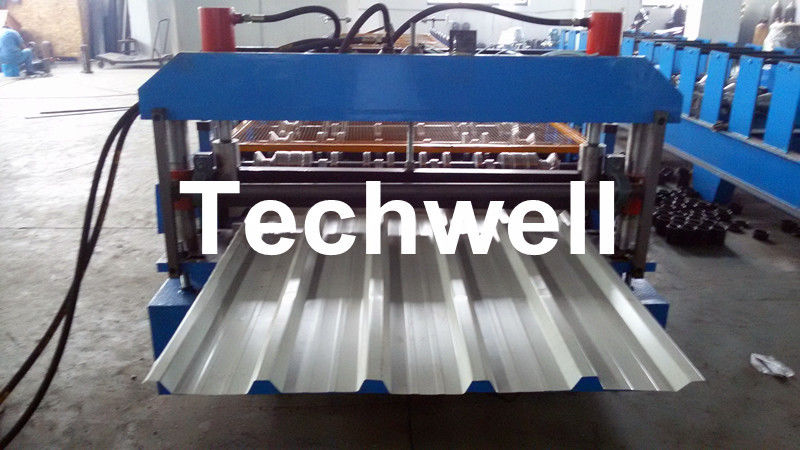

  Finished Roof Profile Sheet



Trapezoidal Roof Panel Sheet Roll Forming Machine CE ISO TW35-200-1000



   Main Components



Hydraulic Decoiler                  1 Unit
Pinch Guiding Device 1 Unit
Roll Forming System 1 Unit
Flying Cutting System 1 Unit
PLC Control Box 1 Unit
Hydraulic Station 1 Unit
Runout Table 1 Unit



   Working Flowing



Trapezoidal Roof Panel Sheet Roll Forming Machine CE ISO TW35-200-1000
