Quick Interchangeable CZ Purlin Cold Roll Forming Machine for 1.0 - 3.0 mm Thickness Steel Coil

Quick Interchangeable CZ Purlin Cold Roll Forming Machine for 1.0 - 3.0 mm Thickness Steel Coil
Quick Interchangeable CZ Purlin Cold Roll Forming Machine for 1.0 - 3.0 mm Thickness Steel Coil Quick Interchangeable CZ Purlin Cold Roll Forming Machine for 1.0 - 3.0 mm Thickness Steel Coil Quick Interchangeable CZ Purlin Cold Roll Forming Machine for 1.0 - 3.0 mm Thickness Steel Coil Quick Interchangeable CZ Purlin Cold Roll Forming Machine for 1.0 - 3.0 mm Thickness Steel Coil

Large Image :  Quick Interchangeable CZ Purlin Cold Roll Forming Machine for 1.0 - 3.0 mm Thickness Steel Coil

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-GTM
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: Standard Packing
Delivery Time: 55-65 Working Days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Detailed Product Description
Profile Thickness: 1.5-3.0mm Material: Carbon Steel, Galvanized Coil, Q235
Cutting Type: Pre-cutting Forming Speed: 0-15m/ Min
Main Power: 15 KW Forming Station: 16 Steps
High Light:

Sheet Metal Roll Forming Machines

,

Roll Forming Equipment

Quick Interchangeable CZ Purlin Cold Roll Forming Machine for 1.0 - 3.0 mm Thickness Steel Coil



   A). Main Specifications of C Z Purlin Roll Former

  1. Material: G.i Coil or Carbon steel
  2. Material Thickness:1.0-3.0mm
  3. Landscape orientation adjustment range of Hole distance : 45-500mm
  4. Length of purlin: >3m
  5. Forming Stations: about 16 Main rollers
  6. Leveling Stations: 7
  7. Feeding Stations: 2
  8. Main Power: 20KW
  9. Machine Diameter: about 12000mm(L)x2300mm(W)x1600mm(H) ( including main motor )
  10. Weight of machine: about 18.5 Ton
  11. One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto punch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.
  12. C/Z purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, runout tables.
  13. This line main forming drive adopt reducer motor and frequency conversion control, speed control…
  14. It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 20m/min.

   B). Main Components

  1. Decoiler ----------------------------------------------- 1 Unit
  2. Feeding & Leveling --------------------------------- 1 Unit
  3. Hydraulic punching device ------------------------ 1 Unit
  4. Hydraulic cutting device --------------------------- 1 Unit
  5. Main roll forming machine ------------------------- 1 Unit
  6. Hydraulic Station ------------------------------------ 1 Unit
  7. PLC computer control ------------------------------ 1 Unit
  8. Output table ------------------------------------------ 1 Unit



   C). Applications



Steel CZ purlins, C/Z purlins, Steel structuere CZ purlin, Metal CZ purlins,



   D). Competitive Advantages



Professional Team Support

High Quality

Reasonable Price

Good after Service

1 Year Warranty

More Than 10 Years Experience



   E). Other Machine Pictures



Quick Interchangeable CZ Purlin Cold Roll Forming Machine for 1.0 - 3.0 mm Thickness Steel Coil 0

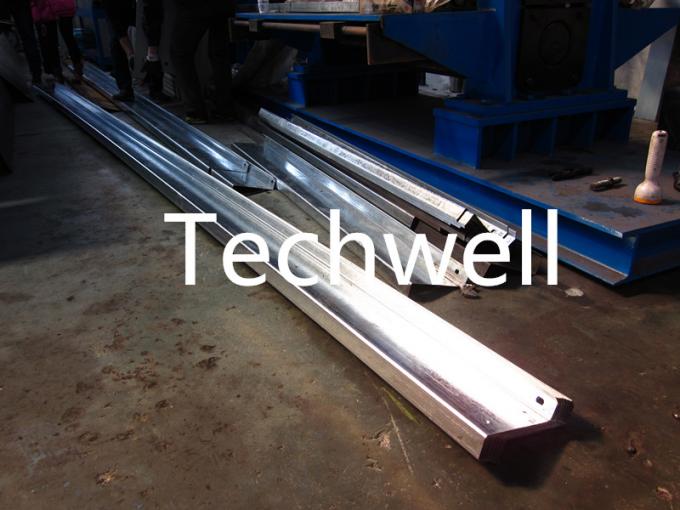

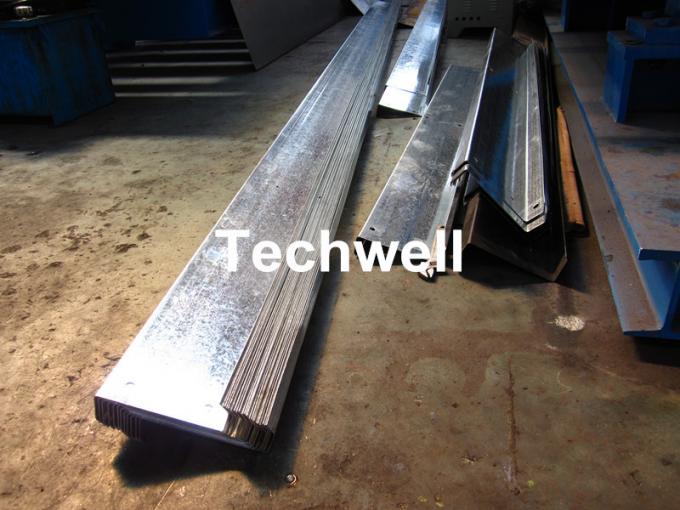

   F). Output Product Pictures



Quick Interchangeable CZ Purlin Cold Roll Forming Machine for 1.0 - 3.0 mm Thickness Steel Coil 1Quick Interchangeable CZ Purlin Cold Roll Forming Machine for 1.0 - 3.0 mm Thickness Steel Coil 2
