High Speed Roof Panel / Roof Sheet Roll Forming Machine With Chain Drive PLC Control

Name: High Speed Roof Panel / Roof Sheet Roll Forming Machine With Chain Drive PLC Control
Brand: TECHWELL
SKU: TW-35-200-1000
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (131 reviews)

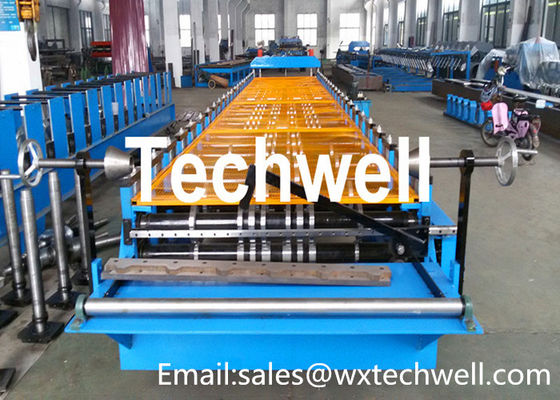

Large Image : High Speed Roof Panel / Roof Sheet Roll Forming Machine With Chain Drive PLC Control

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE
Model Number:	TW-35-200-1000

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard Packing
Delivery Time:	55-65 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	20 sets

Contact Now

Detailed Product Description

Forming Speed:	0-20m/min	Material Thickness:	0.3-0.7mm
Main Motor Power:	7.5KW	Cutting Power:	3KW
Machine Weight:	55..Kg	Cutter Material:	CR12Mov Mold Steel, With Quench Treatment
High Light:	metal roof roll forming machine , Roof Sheet Roll Forming Machine

High Speed Roof Panel Roof Sheet Roll Forming Machine With Chain Drive, PLC Control System

Main Specification

Material Thickness: 0.3-0.7mm
Material: Color Steel Coil, PPGI, Yield Strength 350Mpa
Coil Width: 1250mm
Forming Roller Stations: 22-24 forming stations
Diameter of Forming Shaft: 75mm
Forming Speed: 0-20m/min
Forming Roller Material: 45# Steel, coated with hard chrome 0.05mm
Cutter Material: CR12Mov Mold steel, with quench treatment
Controlling System: PLC with Touch screen & Inverter
Main Motor Power: 7.5KW
Cutting Power: 3KW
Machine Weight: 5500Kgs

Main Components

Decoiler ---------------------------------------------- 1 Unit
Feeding guide -------------------------------------- 1 Unit
main roll forming machine ------------------------ 1 Unit
Hydraulic cutting device -------------------------- 1 Unit
Hydraulic Station ----------------------------------- 1 Unit
PLC computer control ----------------------------- 1 Unit
Output table ----------------------------------------- 1 Unit

Work Flowing

Decoiler ---> Fedding Guide ---> Roll Forming ---> Cut-to-length ---> Run out table

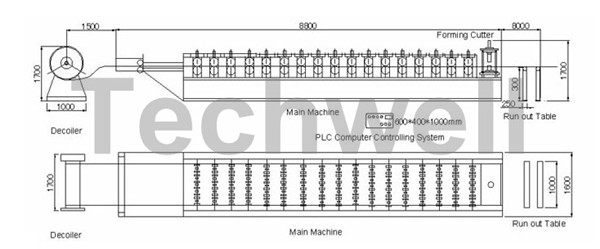

High Speed Roof Panel / Roof Sheet Roll Forming Machine With Chain Drive PLC Control 0

Application

Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding

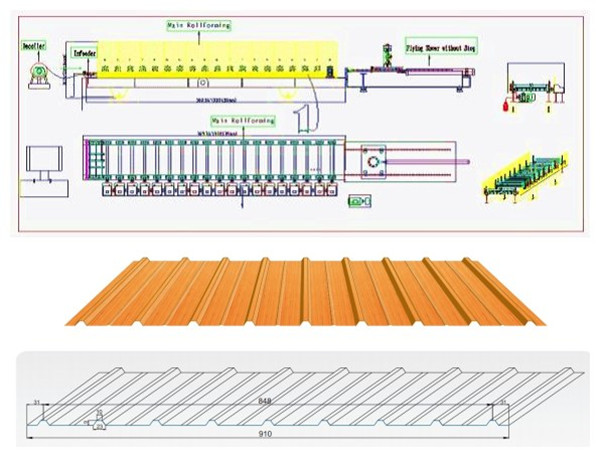

Reference Drawing

High Speed Roof Panel / Roof Sheet Roll Forming Machine With Chain Drive PLC Control 1

Advantages

High Quality
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

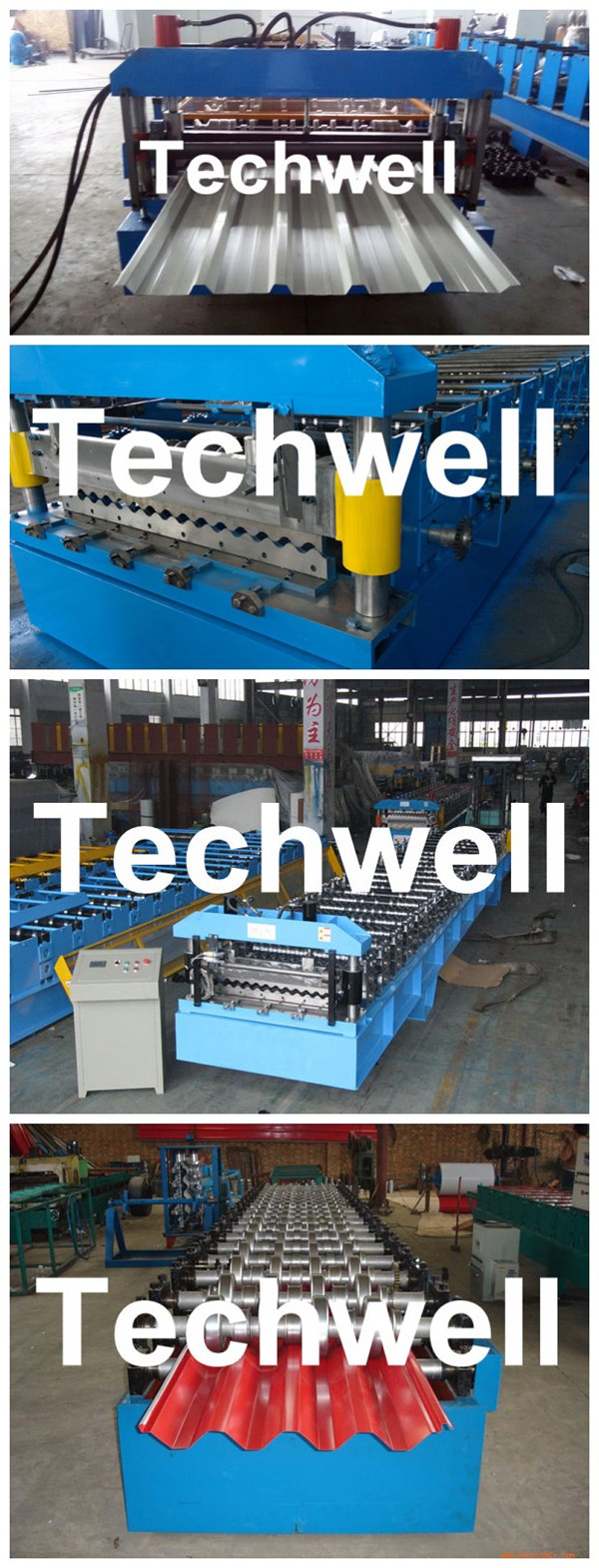

Machine Pictures

High Speed Roof Panel / Roof Sheet Roll Forming Machine With Chain Drive PLC Control 2
