Place of Origin:
China
Brand Name:
TECHWELL
Certification:
CE
Model Number:
TW-RBB100
Contact Us
Video
Storage Rack Box Beam Roll Forming Machine for 1.5-2.0MM Galvanized Coil or Carbon Steel Material
Box beams are made from two identical channel sections nested together to form a box.
A). Working Flow
Manual Decoiler ---- Feeding & Leveling ---- Roll Forming ---- Cutting ---- Run out table - Interlock Machine
B). Main Specification
| No. | Item | Parameter | ||
| 1 |
Suitable Material |
Type | Galvanized Coil or Carbon Steel | |
| Width | Depend on profile | |||
| Thickness | 1.5-2.0MM | |||
| Yield Strength | 350Mpa Max. | |||
| 2 | Forming Station | ≈ 14 | ||
| 3 | Forming Speed | ≈ 0-20m/min excluding cutting | ||
| 4. | Shaft Diameter | Φ 70mm | ||
| 5 | Roller Material | 45# Steel | ||
| 6 | Drive Type | Chain Drive | ||
| 7 | Cutting Model | Hydraulic Cutting | ||
| 8 |
Power Source |
Type | 380V/3PH/50HZ | |
| Main Power | ≈11KW | |||
| Hydraulic Power | ≈4.0KW | |||
| 9 | PLC Control System | Panasonic Brand | ||
| 10 | Box Interlock Machine | 4 Forming Stations | ||
C). Component
| 1 | Decoiler | 1 Unit | |
| 2 | Main Machine | Feeding Guide | 1 Unit |
| Leveling Device | 1 Unit | ||
| Roll Forming System | 1 Unit | ||
| Cutting Device | 1 Unit | ||
| 3 | PLC Control System | 1 Unit | |
| 4 | Hydraulic Station | 1 Unit | |
| 5 | Run out Table | 1 Unit | |
| 6 | Box Interlock Machine | 1 Unit | |
D). Applications
Box beam, Rack box beam, Shelf box beam, Rack Shelf box beam, Shelf rack box beams
Box beam is the most widely used beam, as the structure is the most strong compare with other type of beam.
E). Competitive Advantages
High Quality
Reasonable Price
Good after Service
Factory Visit
1 Year Warranty
More Than 10 Years Experience

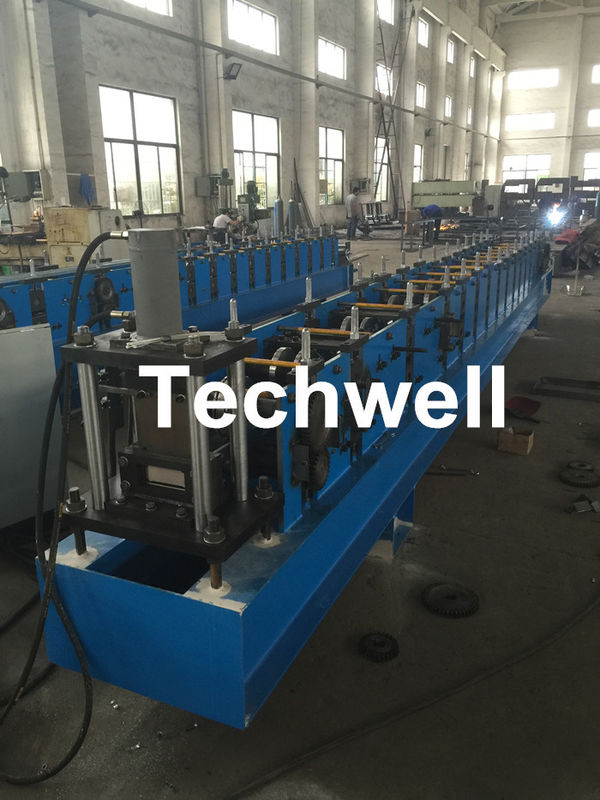

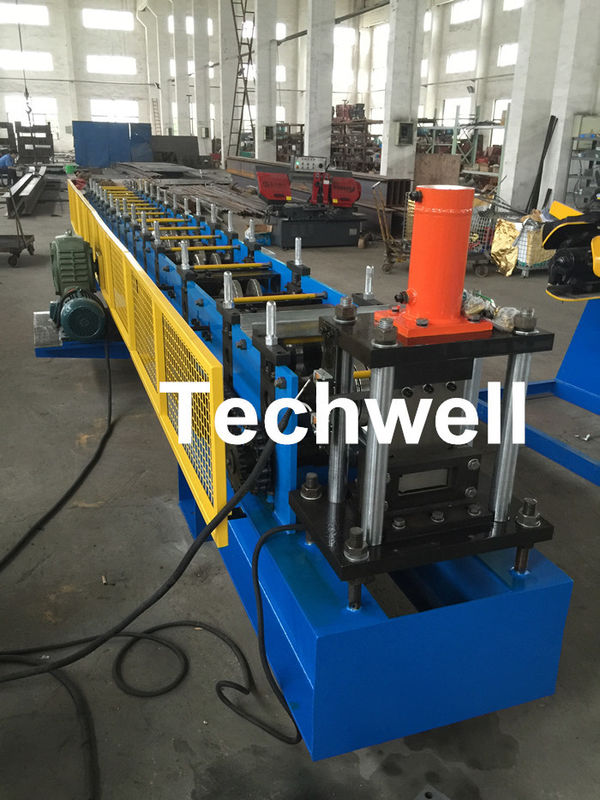

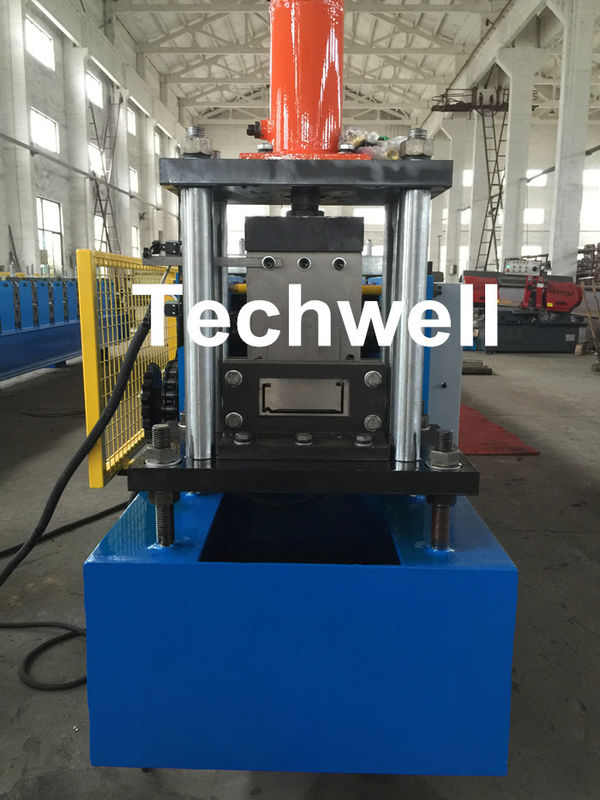

F). Reference Pictures
