Detailed Product Description
Material Thickness: 2.0-3.0mm Main Power: 18.5KW
Material: GI , Carbon Steel Cutting Type: Post-cutting
Forming Station: 18 Steps Forming Speed: 0-15m/ Min

Steel Sheet Upright Rack Roll Forming Machine for Storage Shelf Profile



   A). Basic Introduction



Racking roll forming machine is also known as shelf roll forming machine, shelving rack roll forming machine, shelving roll forming machine or shelves rack roll forming machine. This storage rack roll forming machinery is composed of automatic decoiler, guiding device, leveling and feeding device, punching unit, molding parts, hydraulic Cutting, run-out table, electronic control system and hydraulic system.Shelf Rack



Roll Forming Machine can adopt servo controlled material feeding technology for complex punching to guarantee precision.  Storage rack roll forming machine also adopts track cutting technology to ensure the machine capacity and gear box transmission and ensure the machine`s rigidity and working strength. It is dicided according to your requirement.



   B). Main Specifications



Description

Introduction

Working efficiency 0-15 m/min (not include cutting time)
Thickness of Material 2-3mm
Control system PLC Frequency Control System with touch screen
Uncoiler system 5Ton Manual Operation

Material thickness

1.5-3.0mm
Material GI, Carbon steel
Forming by rolling 18 Steps
Roller material

GCR15 Aluminium processing after quenched HRC58-62degree,

Chrome plated

Shaft and the

diameter of axle

45# Aluminium-processing, diameter of axle=80mm



Main part power 18.5kw

Hydraulic motor power

5.5kw
Hydraulic pressure 12Mpa
Scissor Cutting Material Cr12Mov, herd steel HRC 58-62 degree

length tolerance

3m±1.5mm
voltage

380V, 50HZ, 3 phase

(adjustable by customer needs)

Driving Method Chain driving
Color Blue (adjustable)
Size length*Width*Height - 20*1.3*1.2m



   C). Main Components


Decoiler --------------------------------------------- 1 Unit

Feeding & Leveling -------------------------------- 1 Unit

Hydraulic punching device ------------------------ 1 Unit

Main roll forming machine ------------------------ 1 Unit

Hydraulic cutting device --------------------------- 1 Unit

Hydraulic Station ----------------------------------- 1 Unit

PLC computer control ------------------------------ 1 Unit

Output table ---------------------------------------- 1 Unit



   D). Working Flow



Decoiler --- Fedding & Leveling --- Punching --- Roll Forming --- Cut-to-length --- Run out table





   E).  Applications



With the production advantage of the shelving & storage racks Roll Forming Machine, an extensive catalogue of shelving, heavy duty shelving, warehouse shelving and racking for the home and office are developed rapidly.



Used as Storage rack, storage shelf, Steel rack,steel shelf, rack beam.



   F). Competitive Advantages



High Quality

Reasonable Price

Good after Service

Factory Visit

1 Year Warranty

More Than 10 Years Experience



   G). More Pictures

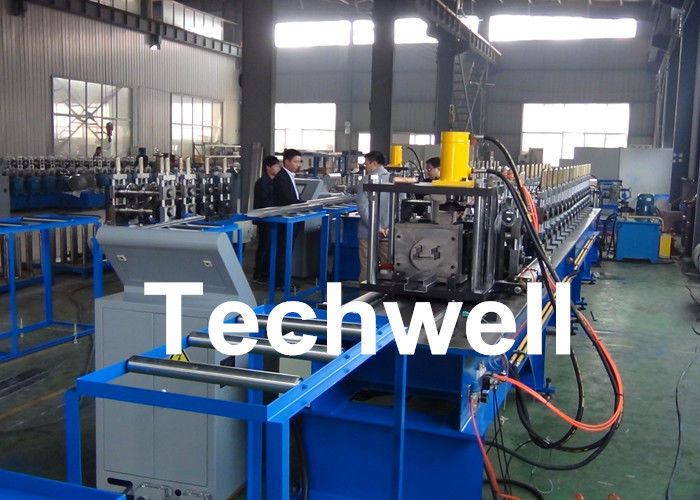

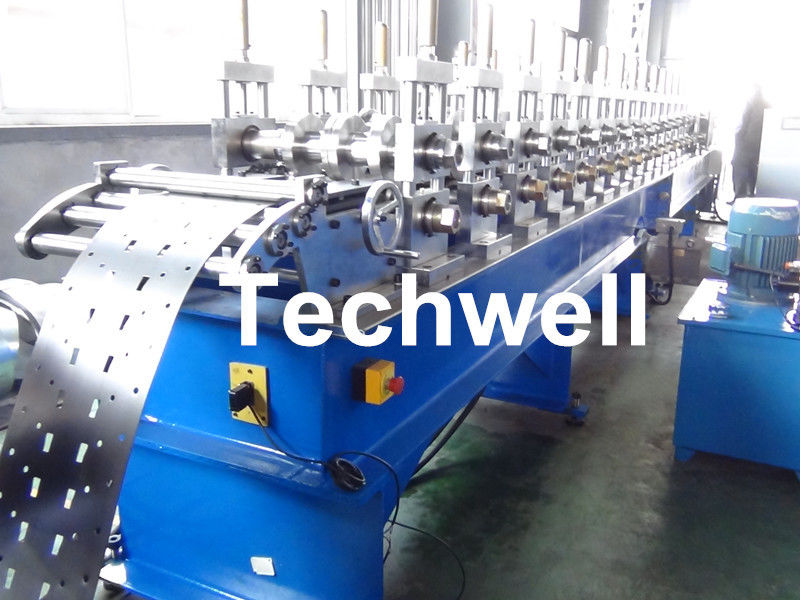

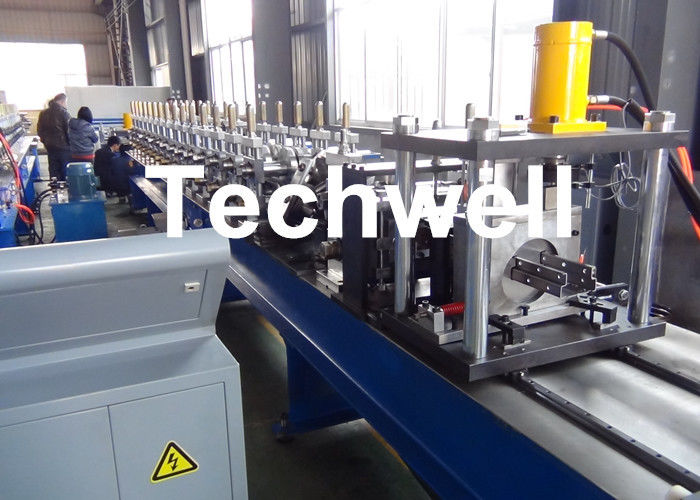

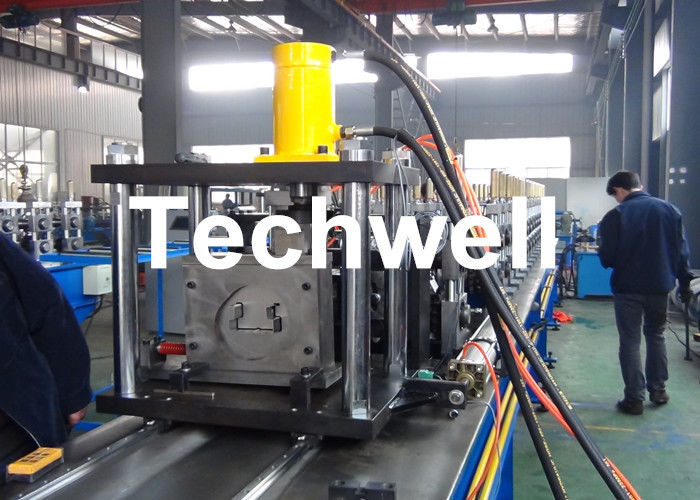

Steel Sheet Upright Rack Roll Forming Machine for Storage Shelf Profile
