Steel Storage Rack Beam Box Profile Rack Roll Forming Machine for Shelving Rack Box Beam

Steel Storage Rack Beam Box Profile Rack Roll Forming Machine for Shelving Rack Box Beam
Steel Storage Rack Beam Box Profile Rack Roll Forming Machine for Shelving Rack Box Beam Steel Storage Rack Beam Box Profile Rack Roll Forming Machine for Shelving Rack Box Beam Steel Storage Rack Beam Box Profile Rack Roll Forming Machine for Shelving Rack Box Beam Steel Storage Rack Beam Box Profile Rack Roll Forming Machine for Shelving Rack Box Beam

Large Image :  Steel Storage Rack Beam Box Profile Rack Roll Forming Machine for Shelving Rack Box Beam

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-RBB300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Detailed Product Description
Suitable Material Thickness: 1.5-2.0MM Material: Galvanized Coil
Cutting Model: Hydraulic Cutting Hydraulic Power: 4.0KW
Shaft Diameter: Φ 70mm Main Power: 11kw
High Light:

steel roll forming machine

,

Racking Roll Forming Machine

Steel Storage Rack Beam Box Profile Roll Forming Machine for Shelving Rack Box Beam



   A). Main Specification



1. Material: Galvanized Coil or Carbon Steel

2. Width: Depend on profile

3. Thickness: 1.5-2.0MM

4. Yield Strength: 50Mpa Max

5. Forming Station: 0-20m/min excluding cutting

6. Roller Material: 45# Steel

7. Drive Type: Chain Drive

8. Shaft Diameter: Φ 70mm

9. Cutting Model: Hydraulic Cutting

10. Power Type: 380V/3PH/50HZ

11. Main Power: 11KW

12. Hydraulic Power: 4.0KW
13. PLC Control System: Panasonic Brand
14. Box Interlock Machine: 4 Forming Stations



   B). Working Flow



Manual Decoiler ---- Feeding & Leveling ---- Roll Forming ---- Cutting ---- Run out table - Interlock Machine

Steel Storage Rack Beam Box Profile Rack Roll Forming Machine for Shelving Rack Box Beam 0





   C). Components





1 Decoiler 1 Unit
2 Main Machine Feeding Guide 1 Unit
Leveling Device 1 Unit
Roll Forming System 1 Unit
Cutting Device 1 Unit
3 PLC Control System 1 Unit
4 Hydraulic Station 1 Unit
5 Run out Table 1 Unit
6 Box Interlock Machine 1 Unit





   D). Comparison with  Common Rack Shelf

  • Adaptable: Adapts to the weight, volume and size of many products and the teardrop style is interchangeable among different manufacturers. Excellent for warehouses storing products with varying sizes.
  • Convenience: A boltless, easy to assemble product. Provides great stock management with direct access to each pallet. Because the clips can be moved quickly, shelves can be easily changed to accommodate various heights and load sizes.
  • Cost-Effective: Less expensive and more adaptable than structural steel racks, the cost provides a good return on investment. The roll-formed design, using flat rolled carbon steel, still provides strength necessary for most applications.



   E). Applications



Box beam, Rack box beam, Shelf box beam, Rack Shelf box beam, Shelf rack box beams, Shelving storage Rack box beam



Box beam is the most widely used beam, and  its structure is the most firm and stable comparing with other type of beam.



   F). Competitive Advantages



  • High Quality
  • Reasonable Price
  • Good after Service
  • Factory Visit
  • Simple to operate when assemble
  • 1 Year Warranty
  • More Than 10 Years Experience
  • Simple to operate when assemble
  • Direct manufacturer, provide with high quality and best price.

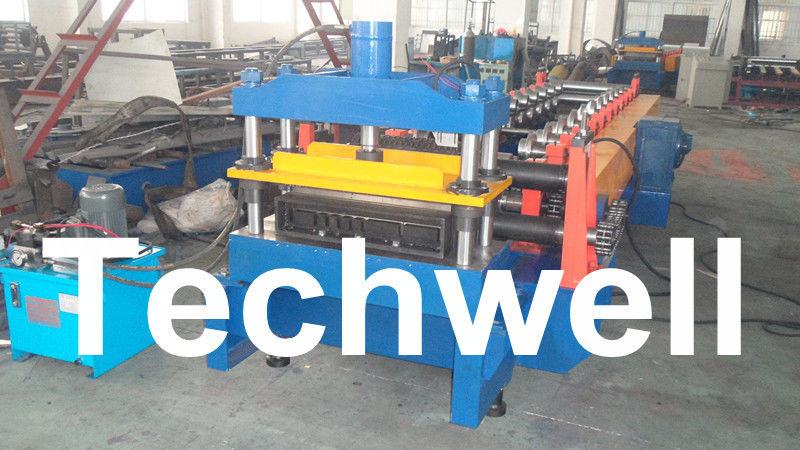

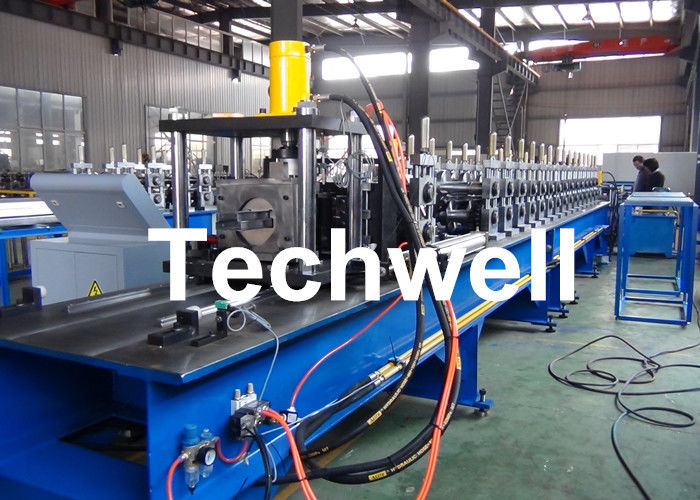

   G). Reference Machine Pictures



Steel Storage Rack Beam Box Profile Rack Roll Forming Machine for Shelving Rack Box Beam 1

   H). Reference Output Products Pictures



Steel Storage Rack Beam Box Profile Rack Roll Forming Machine for Shelving Rack Box Beam 2
