16 Stations Upright Rack Roll Forming Machine With Hydraulic Decoiler TW-RACK

16 Stations Upright Rack Roll Forming Machine With Hydraulic Decoiler TW-RACK
16 Stations Upright Rack Roll Forming Machine With Hydraulic Decoiler TW-RACK 16 Stations Upright Rack Roll Forming Machine With Hydraulic Decoiler TW-RACK 16 Stations Upright Rack Roll Forming Machine With Hydraulic Decoiler TW-RACK 16 Stations Upright Rack Roll Forming Machine With Hydraulic Decoiler TW-RACK

Large Image :  16 Stations Upright Rack Roll Forming Machine With Hydraulic Decoiler TW-RACK

Product Details:
Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-RACK
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us
Packaging Details: Standard packing
Delivery Time: 70-80 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 10sets
Detailed Product Description
Material Thickness: 2.0-2.5mm Forming Stations: 16 Stations
Shaft Diameter: 45# Steel Roller Material: Gcr15 Steel
Punching Type: Hydraulic Punching
High Light:

steel roll forming machine

,

Racking Roll Forming Machine

Upright Rack Roll Forming Machine With Hydraulic Decoiler, Working Speed 12-15m/min TW-RACK



   Main Components



Hydraulic Decoiler 1 Unit
Leveling Device 1 Unit
Servo Feeding 1 Unit

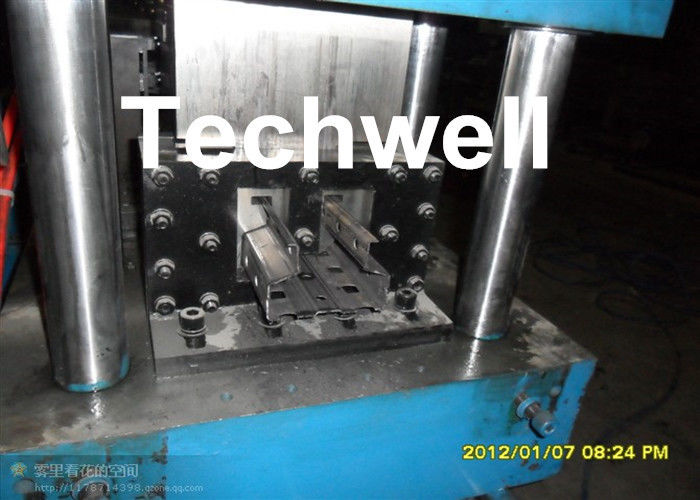

Hydraulic Punching 1 Unit
Main Roll Forming Machine 1 Unit
Hydraulic Cutting 1 Unit
Hydraulic Station 1 Unit
Electric Control System 1 Unit
Run out table 1 Unit





   Main Specifications of Upright Rack



  • Material Thickness: 2.0-2.5mm
  • Forming Stations: 16 steps
  • Shaft Diameter: 70mm
  • Working Speed: 10-15m/min
  • Total Power: 22.5Kw
  • Transmission Type: Chain drive or gearbox drive (Depend on customer's requirement)
  • Decoiler Type: Hydraulic Decoiler
  • Punching: Hydraulic punching
  • Punching Die Material: Cr12 Mov Steel, HRC58-62
  • Cutting Blade: Cr12Mov
  • Cutting Length Tolerance: +/-1mm
  • Machine Diameter: about 13500mmx1200mmx1300mm
  • Weight of Machine: About 13T



   Descriptions of Upright Rack Roll Forming Machine



Rack Upright Roll Forming Machine is a kind of Racking Roll Forming Machine, which can also be called as shelf roll forming machine. This machine of the Rack Upright can be widely used. We can always see its application in factories, warehouses, make shift houses, plants and so forth.





   Working Flow



Decoiler – Feeding - Leveling– Servo Feeding –Hydraulic Punching – Pinch Feeding --- Main Roll Forming – Straightness Device – Hydraulic Cutting -- Run out table



16 Stations Upright Rack Roll Forming Machine With Hydraulic Decoiler TW-RACK 0





   Upright Rack Profile Drawing



16 Stations Upright Rack Roll Forming Machine With Hydraulic Decoiler TW-RACK 1





   Our Advantages



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience



   More Machine Pictures of Upright Rack



16 Stations Upright Rack Roll Forming Machine With Hydraulic Decoiler TW-RACK 2





   Our Factory Pictures



16 Stations Upright Rack Roll Forming Machine With Hydraulic Decoiler TW-RACK 3
