Aluminum Or Galvanized Steel Round Downspout Roll Forming Machine For Making Water Pipe, Rainwater

China Aluminum Or Galvanized Steel Round Downspout Roll Forming Machine For Making Water Pipe, Rainwater supplier
Aluminum Or Galvanized Steel Round Downspout Roll Forming Machine For Making Water Pipe, Rainwater supplier Aluminum Or Galvanized Steel Round Downspout Roll Forming Machine For Making Water Pipe, Rainwater supplier Aluminum Or Galvanized Steel Round Downspout Roll Forming Machine For Making Water Pipe, Rainwater supplier Aluminum Or Galvanized Steel Round Downspout Roll Forming Machine For Making Water Pipe, Rainwater supplier

Large Image :  Aluminum Or Galvanized Steel Round Downspout Roll Forming Machine For Making Water Pipe, Rainwater

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-DP100

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard packing
Delivery Time: 70-80 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Coil Thickness Range: 0.4-0.6mm Forming Stations: About 20 Stations (Depend On Profile)
Working Speed: 0-15m/min (excluding Cutting Time) Forming Motor Power: 7.5KW
Roller Material: 45# High Grade Steel, And Roller Surface With Hard Chrome ≥ 0.05mm Forming Material: PPGI, Aluminum

Aluminum Or Galvanized Steel Round Downspout Roll Forming Machine For Making Water Pipe, Rainwater



   Description



Our downspout roll forming machine mainly consists of uncoiler, roll forming system, cutting equipment, protective guard, hydraulic system, control system and out-put table. It can make curve for down pipe to meet the requirement of practical engineering projects.





   Main Components of Downspout Machine





 Manual Decoiler  1 Unit
 Pinch Feeding  1 Unit

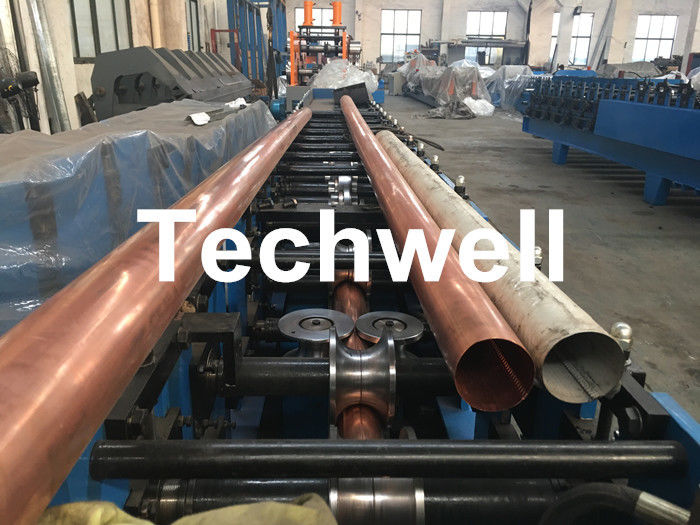

 Main Roll Forming  1 Unit

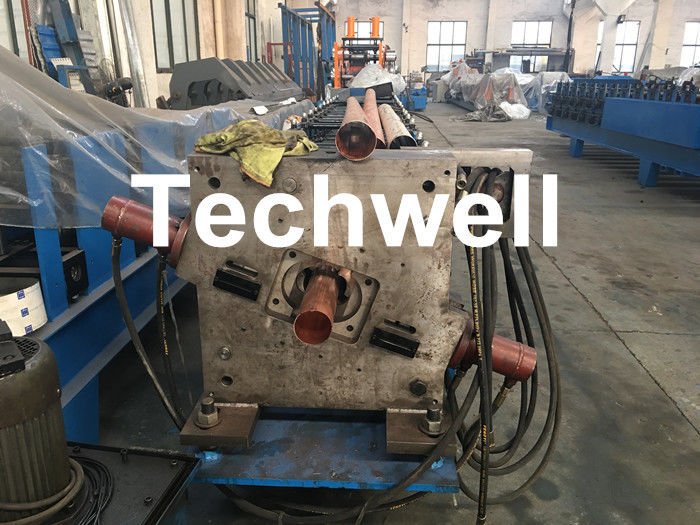

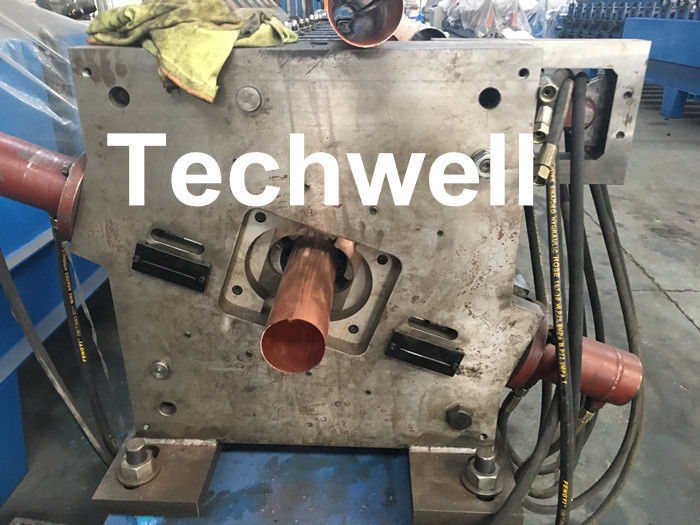

 Hydraulic Cutting (machine stop to cut)  1 Unit
 Hydraulic Station  1 Unit
 Electrical Control Board  1 Unit
 Run out Support Table  1 Unit
 Elbow Machine  1 Unit





   Technical Parameters of Downspout Roll Former





 Material Spec  PPGI, Aluminum
 Thickness of Coil Sheet  0.4-0.6mm
 Forming Motor Power  7.5KW
 Forming Speed  0-15m/min (excluding cutting time)
 Working Stations  About 20 Roller Stands
 Roller Material  High grade 45#, polished and coated with 0.05mm Chrome Surface.
 Shaft Diameter  75mm
 Material of Axis  High grade 45# steel
 Voltage  380 V, 3 Phase 50Hz ( or depend on customer’s requirement )
 Hydraulic Station Power  3KW
 Hydraulic Pressure  10-12Mpa





   Technical Process of Down Pipe



Decoiler--> Coil sheet guiding and feeding --> Roll forming machine with safty guard--> Tighten Device ->



Cut to length --> Out-put Table --> Curving machine



Aluminum Or Galvanized Steel Round Downspout Roll Forming Machine For Making Water Pipe, Rainwater







   Reference Downpipe Machine Profile Drawing



Aluminum Or Galvanized Steel Round Downspout Roll Forming Machine For Making Water Pipe, Rainwater

Aluminum Or Galvanized Steel Round Downspout Roll Forming Machine For Making Water Pipe, Rainwater











   Applications



Rainwater downpipe, downspout, rainspout, water pipe, drainpipe



Aluminum Or Galvanized Steel Round Downspout Roll Forming Machine For Making Water Pipe, Rainwater





   Our Advantages



  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

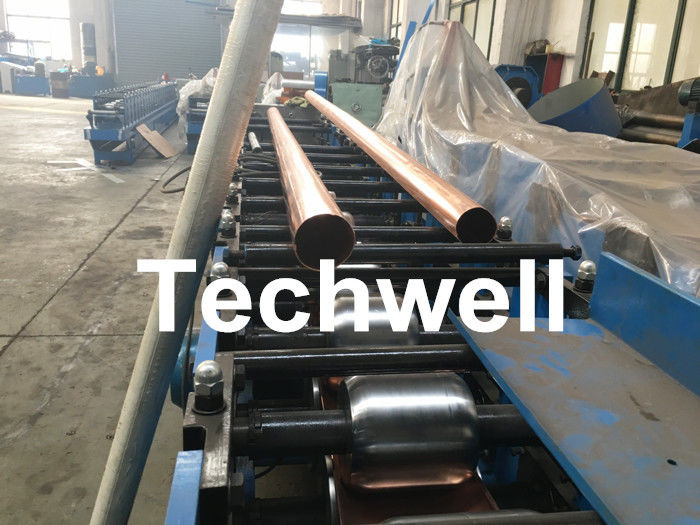

   More Machine Pictures



Aluminum Or Galvanized Steel Round Downspout Roll Forming Machine For Making Water Pipe, Rainwater

Aluminum Or Galvanized Steel Round Downspout Roll Forming Machine For Making Water Pipe, Rainwater
