1.0-3.0mm Coil Thickness , PLC Frequency Control Guide Rail Cold Roll Forming Machine

China 1.0-3.0mm Coil Thickness , PLC Frequency Control Guide Rail Cold Roll Forming Machine supplier
1.0-3.0mm Coil Thickness , PLC Frequency Control Guide Rail Cold Roll Forming Machine supplier 1.0-3.0mm Coil Thickness , PLC Frequency Control Guide Rail Cold Roll Forming Machine supplier 1.0-3.0mm Coil Thickness , PLC Frequency Control Guide Rail Cold Roll Forming Machine supplier 1.0-3.0mm Coil Thickness , PLC Frequency Control Guide Rail Cold Roll Forming Machine supplier

Large Image :  1.0-3.0mm Coil Thickness , PLC Frequency Control Guide Rail Cold Roll Forming Machine

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE
Model Number: TW-GDA008

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact Us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Material: Galvanized Steel, Carbon Steel PLC: Panasonic Brand
Decoiler Type: Manual Or Hydrauliuc Or Auto Type Punching: Hydraulic Punching
Roller Material: GCr15 Steel, Surface Coated With 0.05mm Hard Chrome Shaft Diameter: 80mm

1.0-3.0mm Coil Thickness , PLC Frequency Control Guide Rail Cold Roll Forming Machine



   Description of Guide Rail Roll Forming Machine





 1. The guide rail roll forming machine rezlizes punching and lettering functions as requested by customers. The finished guide rails are commonly seen in elevator, doorframe, window frame, curtain track, electrical wiring trough as well as other devices that need sliding system.



 2. The complete guide rail forming machine line includes decoiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the rail forming machine produces it automatically. The machines are easy to operate and running stable.





   Main Technical Parameters of Guide Rail Roll Former



  1. Coil Material: Galvanized steel, carbon steel
  2. Material Thickness: 1.5-3.0mm
  3. Decoiler Type: Manual or Hydraulic or Auto type
  4. Coil I.D: 508-610mm
  5. Coil O.D: Max. 1500mm
  6. Forming Stations: About 16 stations (Depend on profiles)
  7. Roller Material: GCr15 steel, surface coated with 0.05mm hard chrome
  8. Axis of Diameter: 80mm
  9. Shaft Material: High grade 45# steel
  10. Drive Type: Chain drive
  11. Forming Speed: 0-15m/min (Not including cutting)
  12. Main Power: 11KW
  13. Punching Type: Hydraulic punching
  14. Punching Mold Size: According to drawing
  15. Cutting: Disk saw cutting
  16. Cutting Die Material: Cr12Mov
  17. Cutting Tolerance: +/-1.5mm
  18. PLC: Panasonic
  19. Inverter: YASKAWA
  20. Touch Screen: Panasonic
  21. Operation Type: Touch screen & Button



   Working Flow



Decoiler --- Feeding and Leveling --- Main Roll Forming --- Hydraulic Punching --- Cut-to-length ---



Run out Table



   Main Components



  • Decoiler / Uncoiler -------------------------------------------------------1 Unit
  • Feeding & Leveling Device --------------------------------------------1 Unit
  • Main Roll Forming Machine --------------------------------------------1 Unit
  • Hydraulic Punching Device ---------------------------------------------1 Unit
  • Cutting Device-------------------------------------------------------------1 Unit
  • Hydraulic Station----------------------------------------------------------1 Unit
  • PLC Electrical Control Board ------------------------------------------1 Unit
  • Run-out Table-------------------------------------------------------------1 Unit



   Reference Profile Drawing



1.0-3.0mm Coil Thickness , PLC Frequency Control Guide Rail Cold Roll Forming Machine
1.0-3.0mm Coil Thickness , PLC Frequency Control Guide Rail Cold Roll Forming Machine
1.0-3.0mm Coil Thickness , PLC Frequency Control Guide Rail Cold Roll Forming Machine





   Competitive Advantages



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

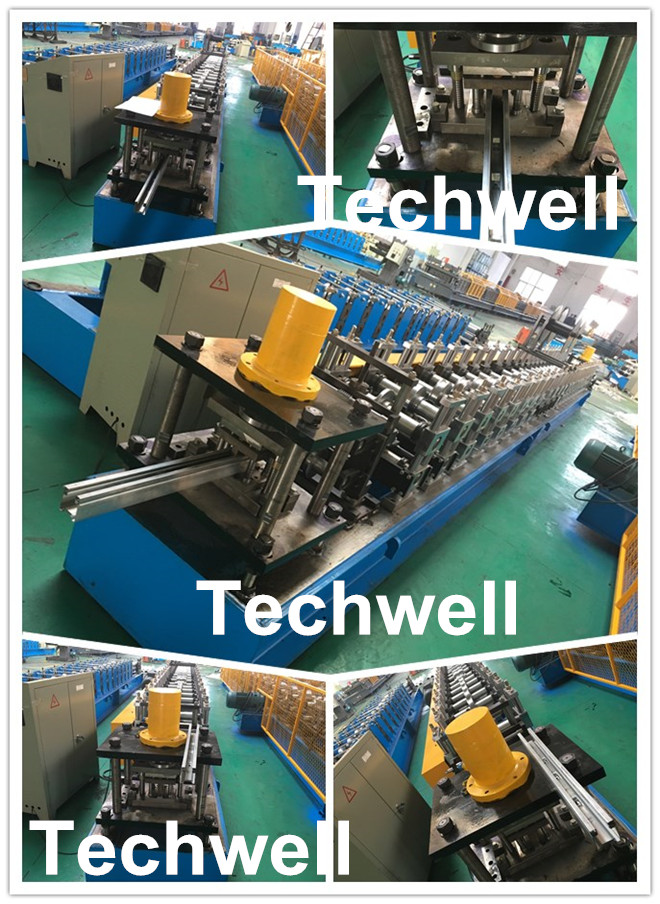

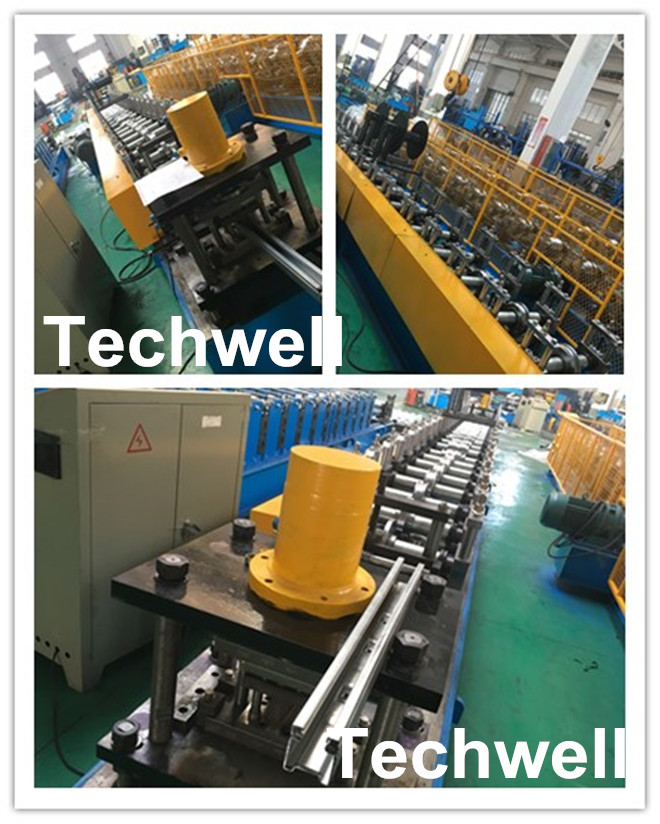

   More Reference Machine Pictures of Guide Rail Roll Former





1.0-3.0mm Coil Thickness , PLC Frequency Control Guide Rail Cold Roll Forming Machine

1.0-3.0mm Coil Thickness , PLC Frequency Control Guide Rail Cold Roll Forming Machine



   Contacts of WUXI TECHWELL



Company Wuxi Techwell Machinery Co.,LTD
Website www.cold-rollformingmachine.com
www.roofrollformingmachine.com
www.wxtechwell.com
Mobile 0086-15861597732( Lemon )
E-Mail / Skype sales@wxtechwell.com
