Detailed Product Description
Material: Galvanized Steel, Carbon Steel Decoiler Type: Manual Or Hydrauliuc Or Auto Type
Roller Material: GCr15 Steel, Surface Coated With 0.05mm Hard Chrome Cutting Tolerance: +/-1.5mm
Cutting Die Material: Cr12Mov Working Speed: 0-15m/min

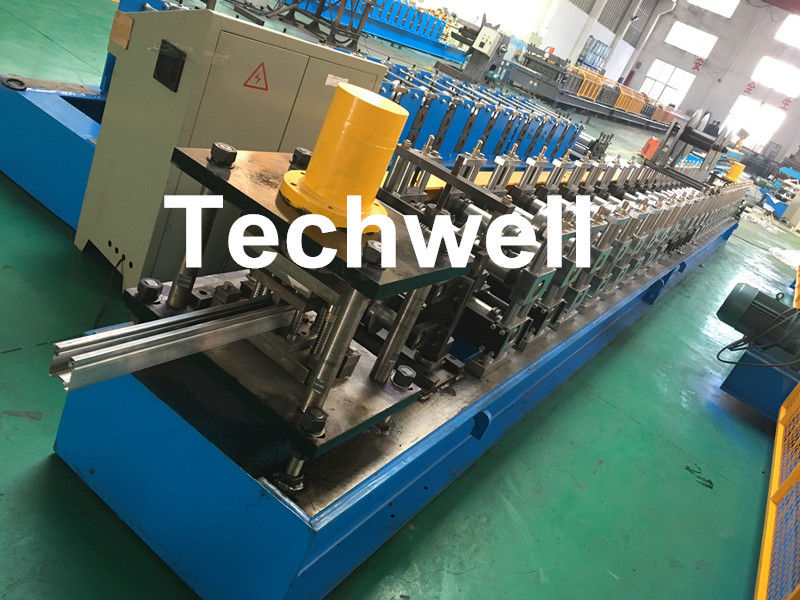

0-15m/min Cold Roll Forming Machine For Making Door Frame Guide, Shutter Door Slats Guide Rail

   Description of Guide Rail Roll Former


1. The guide rail roll forming machine rezlizes punching and lettering functions as requested by customers. The finished guide rails are commonly seen in elevator, doorframe, window frame, curtain track, electrical wiring trough as well as other devices that need sliding system.


2. The complete guide rail forming machine line includes decoiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the rail forming machine produces it automatically. The machines are easy to operate and running stable.




   Main Specifications



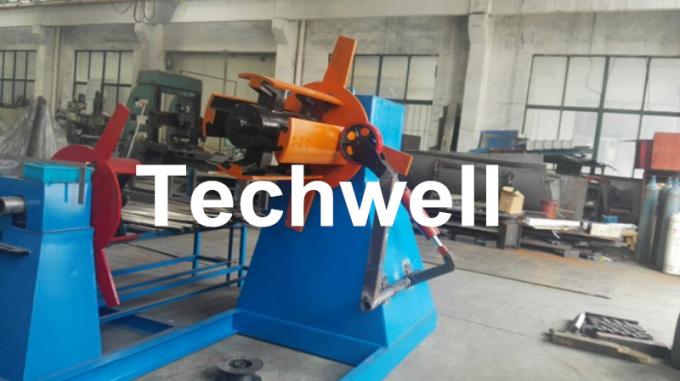

 1). 3Ton Manual Decoiler

  1. Decoiler Type: Manual type decoiler
  2. Weight capacity of decoiler: 3Ton
  3. Manual expanding
  4. Passive uncoiling
  5. I.D: 508mm, 610mm

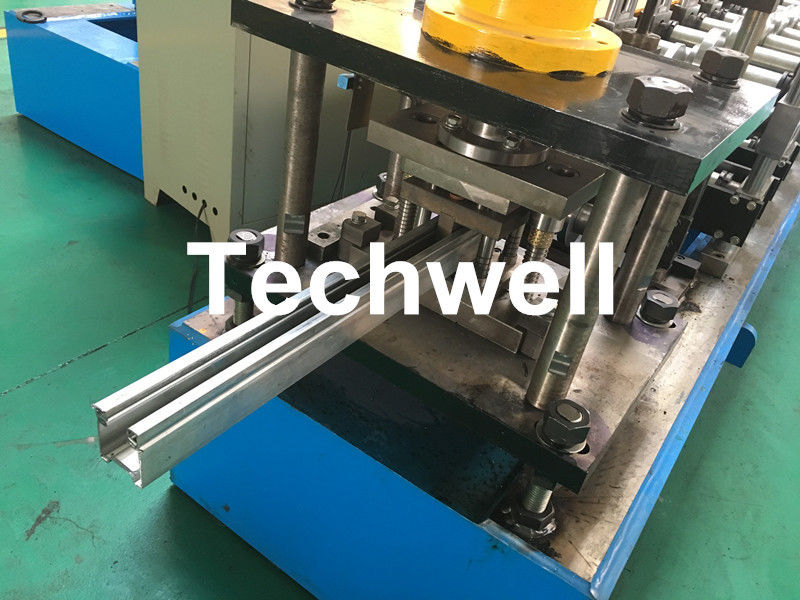

0-15m/min Cold Roll Forming Machine For Making Door Frame Guide , Shutter Door Slats Guide Rail


 2). Feeding & Leveling Device

  1. Function: It is used to release the head of coil and feed into the forming machine, making the coil straight and flat after decoiling.


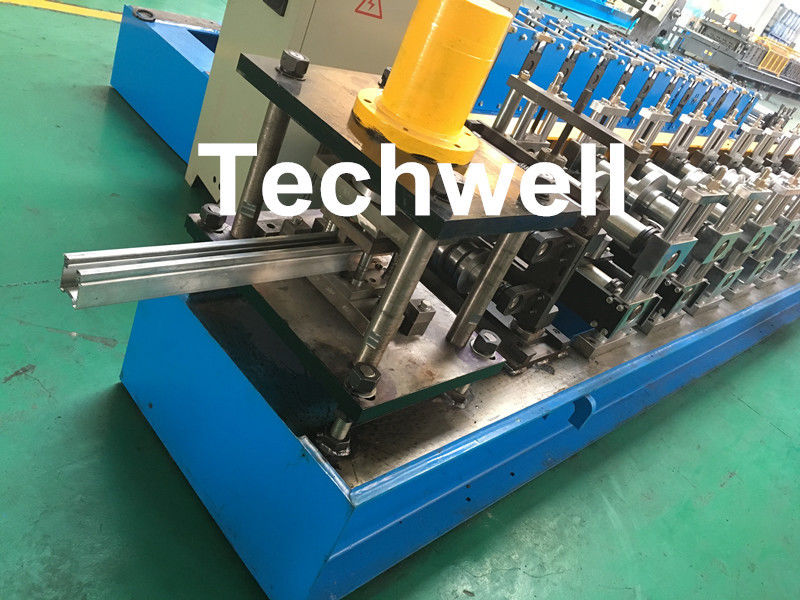

 3). Guide Rail Roll Forming Machine

  1. Material Thickness: 1.5-3.0mm
  2. Forming Material Type: Galvanized steel, PPGI
  3. Forming Frame Structure: Guiding column + Slide blocks
  4. Shaft Diameter: 80mm
  5. Material of Shaft: High grade 45# steel with heat treatment
  6. Roller Material: High grade GCr15, model steel, all treated by CNC precise machines, HRC50-54
  7. Forming Stations: About 16 stations (Depend on final design)
  8. Forming Speed: 0-15m/min
  9. Forming Motor: 11KW
  10. Transmission: Chain drive

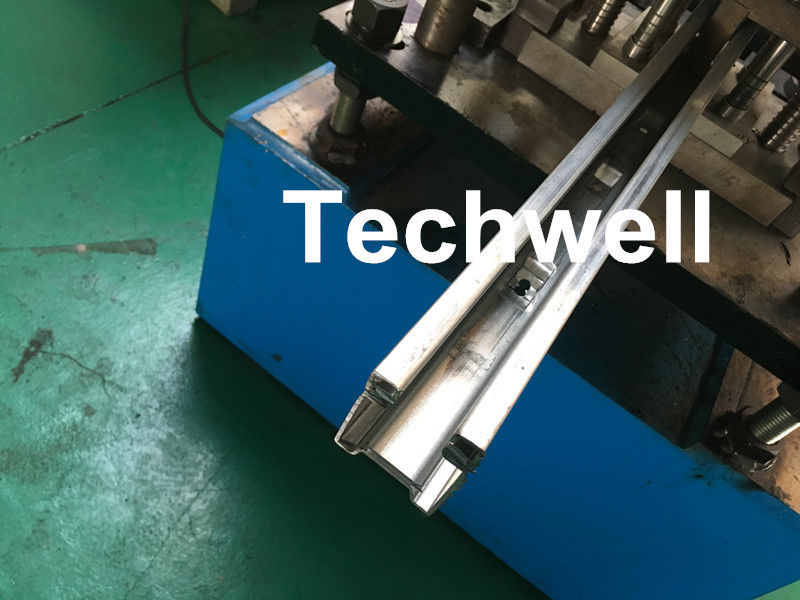

0-15m/min Cold Roll Forming Machine For Making Door Frame Guide , Shutter Door Slats Guide Rail


 4). Punching Device

  1. Punching Type: Hydraulic punching
  2. Punching Mold Size: According to drawing
  3. Hydraulic Power: 5.5KW


 5). Cutting Device

  1. Cutting Type: Disk saw cutting
  2. Cutting Die Material: Cr12Mov
  3. Cutting Tolerance: +/-1.5mm


 6). PLC Control System

  1. Adopts PLC control technology, frequency adjust speed technology, realize the automatic production.
  2. Provide good man and machine screen, which can set the batches, plate length, and quantity.
  3. Operation type: Touching screen + Button
  4. Using encoder to calculate the number and measuring the length
  5. Electrical control: PLC frequency control system with touch screen
  6. PLC: PANASONIC Brand
  7. Encoder: OMRON Brand
  8. Size of PLC control board: 700mm (L) x 1000mm (H) x 300mm (W)


 7). Run-out Table

  1. It is used to support the finished panels
  2. Teh table we supply is 2 pieces with length of 2000mm, it can support panels with 10000mm at normal condition
  3. The frame of supporter is welded by square-steel
  4. Simple non-power table type



   Reference Profile Drawing


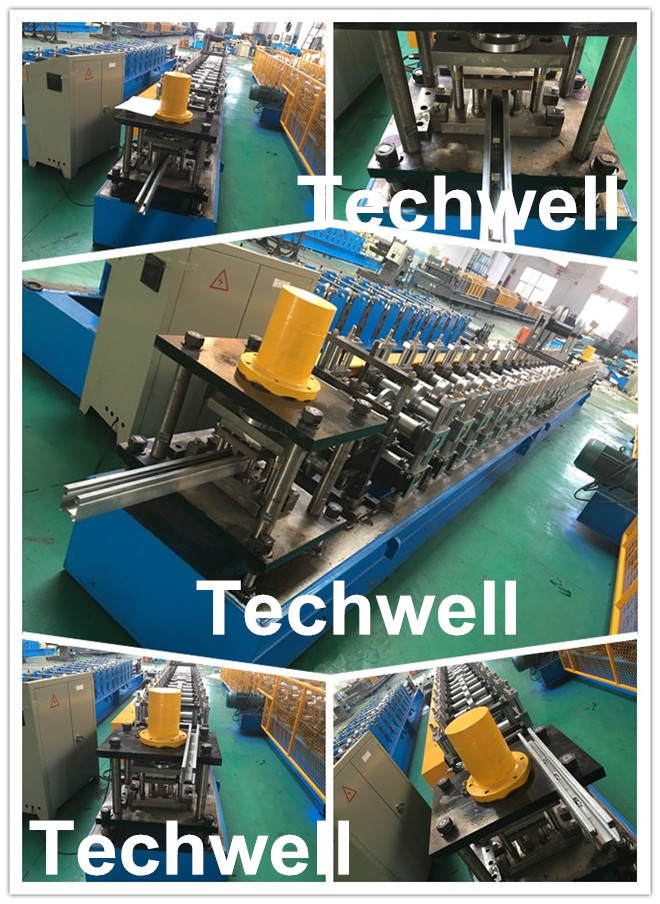

0-15m/min Cold Roll Forming Machine For Making Door Frame Guide , Shutter Door Slats Guide Rail

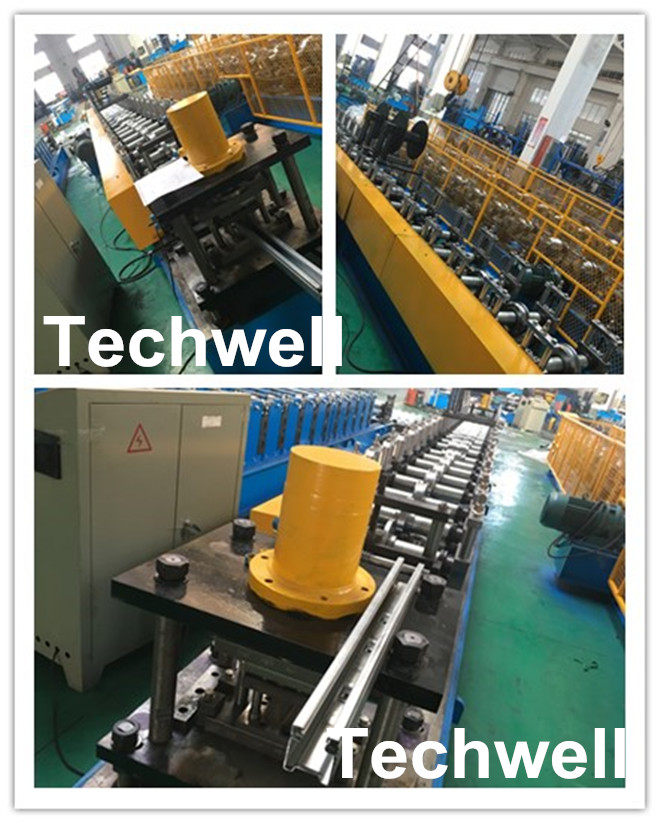

0-15m/min Cold Roll Forming Machine For Making Door Frame Guide , Shutter Door Slats Guide Rail


   Working Flow

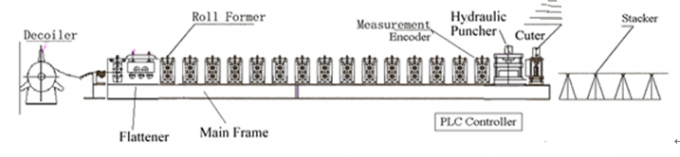

Decoiler --- Feeding and Leveling --- Main Roll Forming --- Hydraulic Punching --- Cut-to-length ---

Run out Table

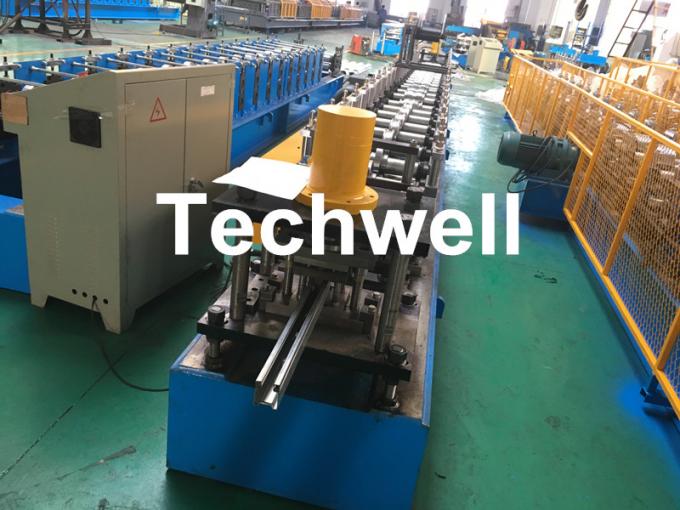

0-15m/min Cold Roll Forming Machine For Making Door Frame Guide , Shutter Door Slats Guide Rail


   Main Components


  • Decoiler / Uncoiler -------------------------------------------------------1 Unit
  • Feeding & Leveling Device --------------------------------------------1 Unit
  • Main Roll Forming Machine --------------------------------------------1 Unit
  • Hydraulic Punching Device ---------------------------------------------1 Unit
  • Cutting Device-------------------------------------------------------------1 Unit
  • Hydraulic Station----------------------------------------------------------1 Unit
  • PLC Electrical Control Board ------------------------------------------1 Unit
  • Run-out Table-------------------------------------------------------------1 Unit


   Application

Elevator guide rail, door frame guide rail, curtain track, shutter door slats guide
